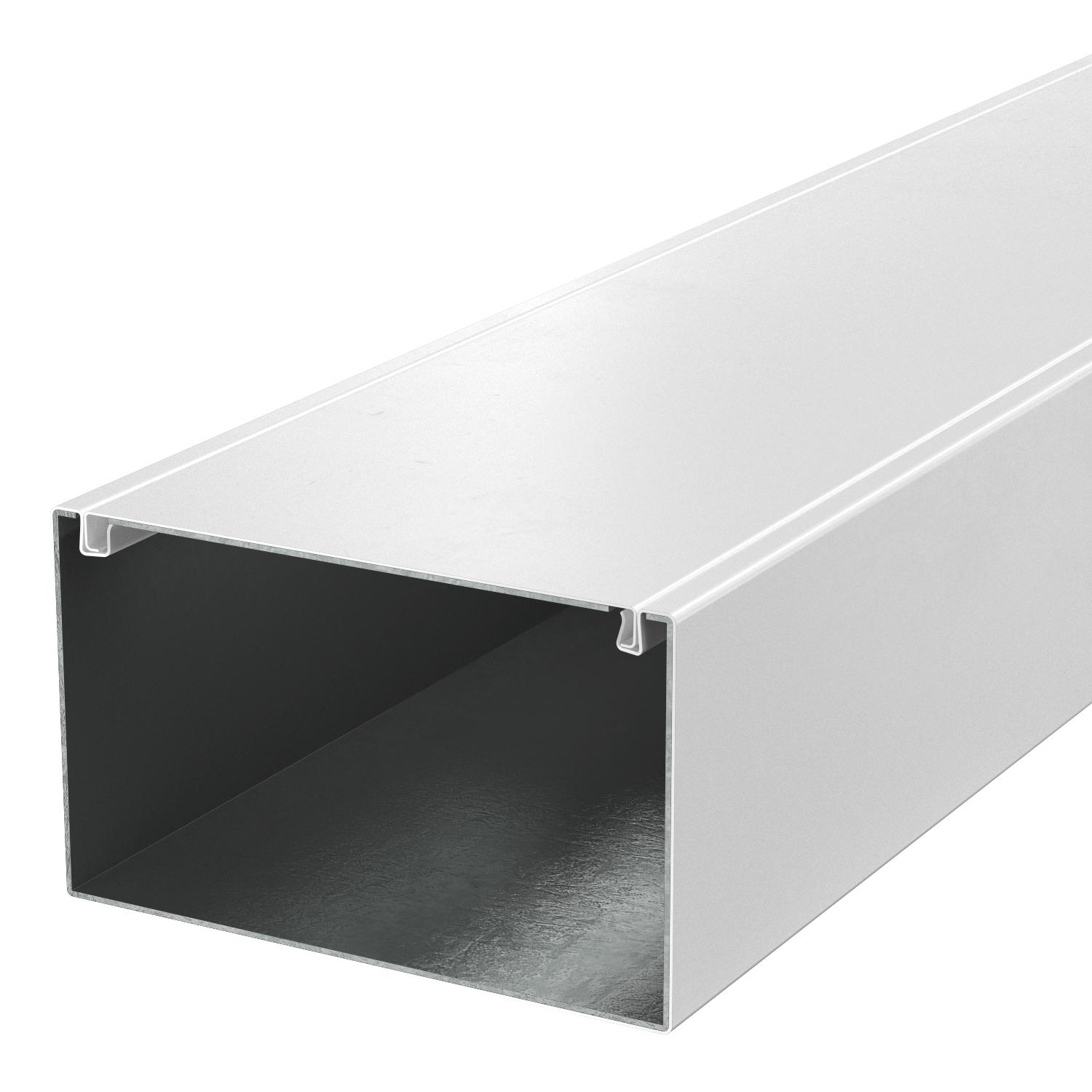

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 120 mm, pure white 2000 | 200 | 120 | Pure white; RAL 9010

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 120 mm, pure white

Item no. 7218014 | EAN 4012197351311

Item no. / Types	7218014 / PLM D 1220 RW

Length	2000 mm

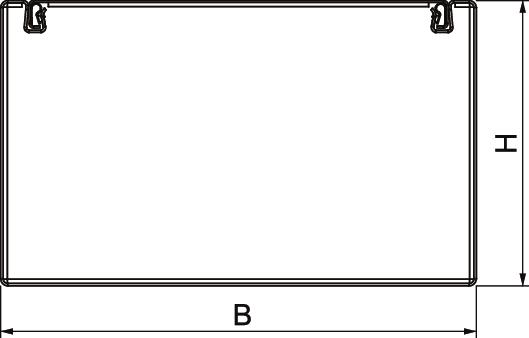

Dimension B	200 mm

Dimension H	120 mm

Colour	Pure white; RAL 9010

Product description

Product description

Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.

Technical data

Technical data

Classification EI − installation duct	90
Colour	Pure white; RAL 9010
Cover fastening	Miscellaneous
Dimension	120x200x2000
Dimension B	200 mm
Dimension H	120 mm
Dimension i	162 mm
Height	120 mm
Internal height	114 mm
Internal width	194 mm

Jacketing	Steel
Length	2000 mm
Material	Steel
Number of flammable sides	4
Partitions possible	yes
Surface	Powder-coated
Usable cross-section	18500 mm²
Width	200 mm
With perforation	yes

All types

All types

Types	Length	Dimension B	Dimension H	Colour	Item no.	Quantity	SSU
PLM D 1220 RW	2000 mm	200 mm	120 mm	Pure white; RAL 9010	7218014	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Joint connector set, duct height 120 mm	PLM SI 1220	7218032	piece	1 piece

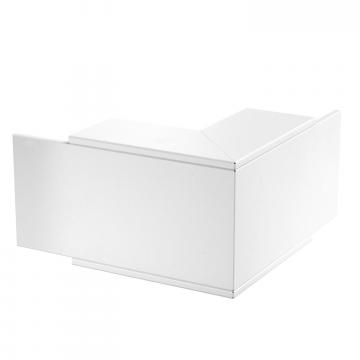

External corner, duct height 120 mm, pure white	PLM EC 1220 RW	7218048	piece	1 piece

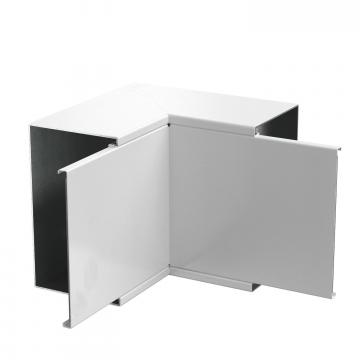

Internal corner, duct height 120 mm, pure white	PLM IC 1220 RW	7218060	piece	1 piece

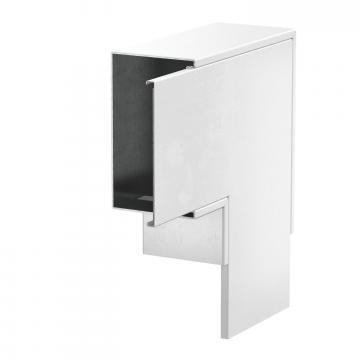

Flat angle, duct height 120 mm, pure white	PLM FA 1220 RW	7218072	piece	1 piece

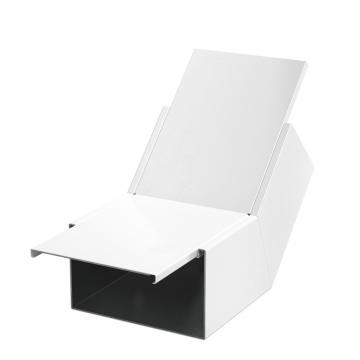

Vertical bend, rising, duct height 120 mm, pure white	PLM BR 1220 RW	7218120	piece	1 piece

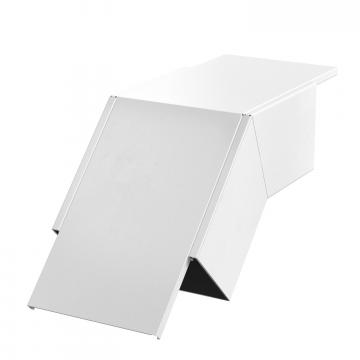

Vertical bend, falling, duct height 120 mm, pure white	PLM BF 1220 RW	7218112	piece	1 piece

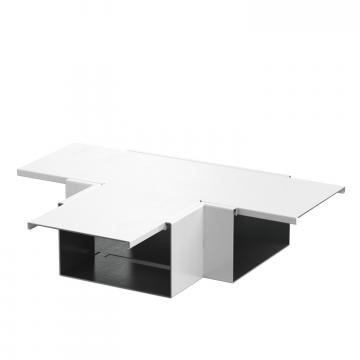

T branch piece, duct height 120 mm, pure white	PLM TB 1220 RW	7218084	piece	1 piece

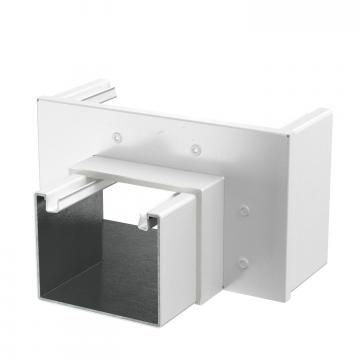

Reducer, straight, from 120 mm to 80 mm duct height, pure white	PLM RP 1220 RW	7218104	piece	1 piece

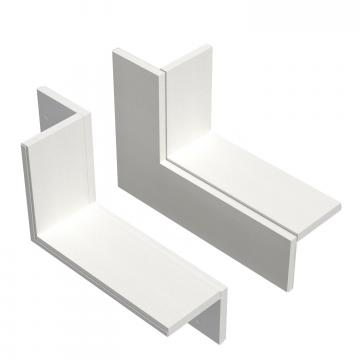

Wall connection set, 2-sided, for corner mounting, duct height 120 mm, pure white	PLM CC 1220 RW	7218144	piece	1 piece

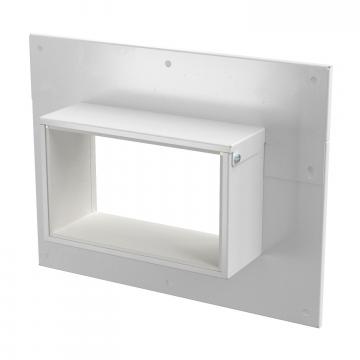

Wall connection collar, 3- and 4-sided, duct height 120 mm, pure white	PLM WC 1220 RW	7218132	piece	1 piece

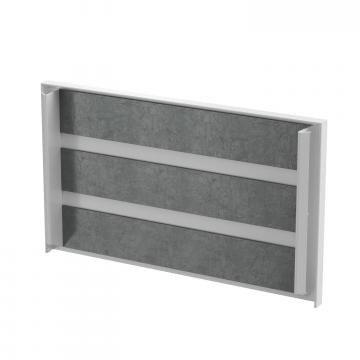

End piece, duct height 120 mm, pure white	PLM EP 1220 RW	7218096	piece	1 piece

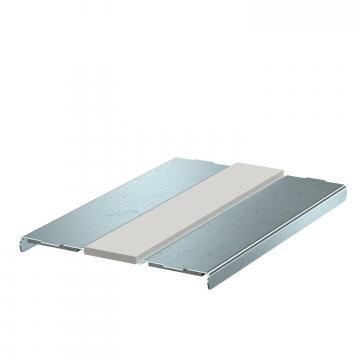

Cover support, duct width 200 mm	PLM LS 200	7218036	piece	1 piece

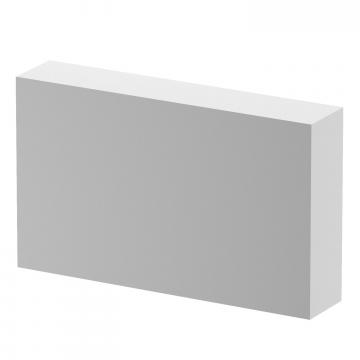

Foam seal, duct height 120 mm	PLM CO 1220	7218162	piece	1 piece

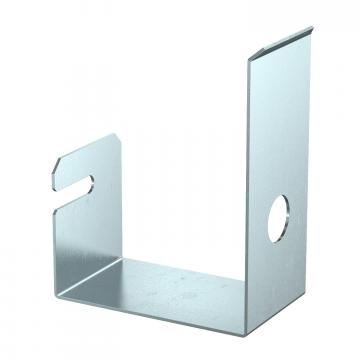

Pressure clip for wall mounting, duct height 120 mm	PLM WB 1220 FS	7218156	piece	10 piece

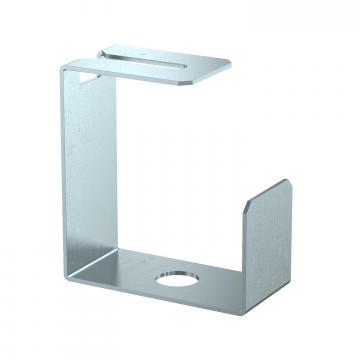

Pressure clip for ceiling mounting, duct height 120 mm	PLM CB 1220 FS	7218150	piece	10 piece

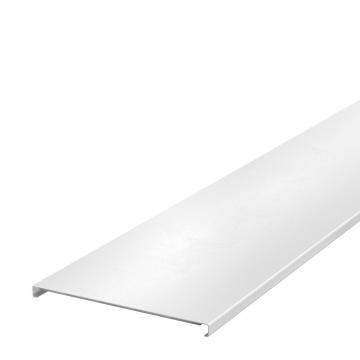

Installation duct cover, duct width 200 mm, pure white	PLM LI 200 RW	7218026	m	2 m

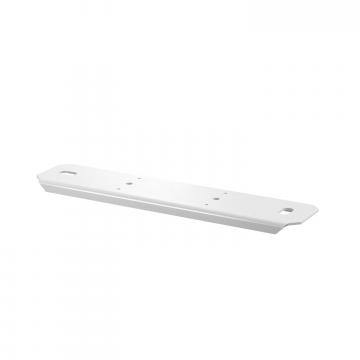

Support, duct width 200 mm, pure white	PLM SU 200 RW	7218170	piece	1 piece
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Ablation coating PYROCOAT® in a cartridge	ASX-K	7202310	piece	1 piece
Connector screw	PLM SF 4x8	3498092	piece	100 piece
Locking bracket RKV3V	RKV3V	6288700	piece	20 piece
