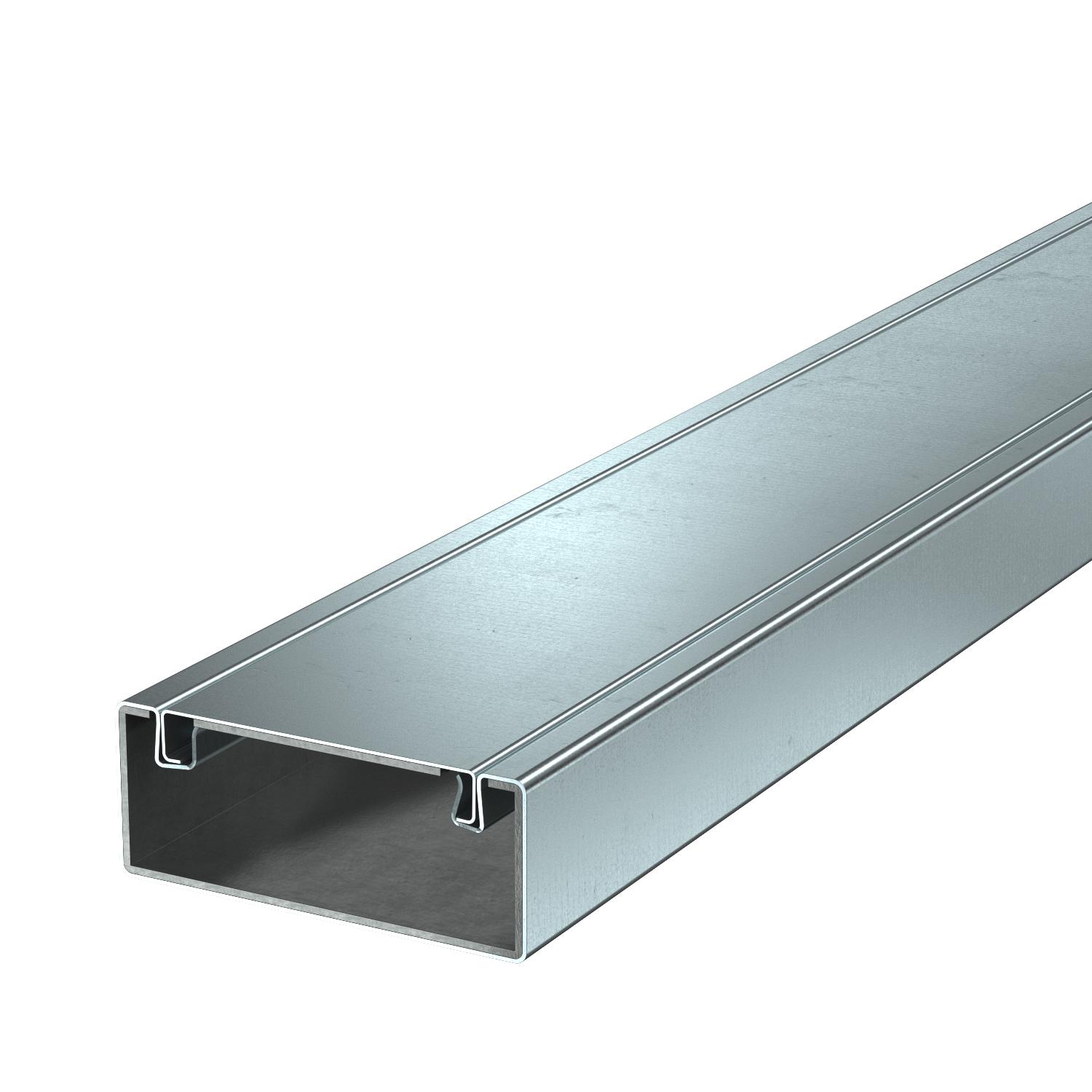

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 40 mm, FS 2000 | 100 | 40 | zinc

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 40 mm, FS

Item no. 7218004 | EAN 4012197351212

Item no. / Types	7218004 / PLM D 0410 FS

Length	2000 mm

Dimension B	100 mm

Dimension H	40 mm

Colour	zinc

Product description

Product description

Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.

Technical data

Technical data

Classification EI − installation duct	90
Colour	zinc
Cover fastening	Miscellaneous
Dimension	40x100x2000
Dimension B	100 mm
Dimension H	40 mm

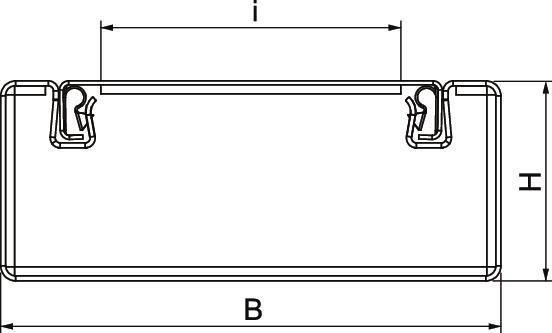

Dimension i	62 mm
Height	40 mm
Internal height	34 mm
Internal width	94 mm

Jacketing	Steel
Length	2000 mm
Material	Steel
Number of flammable sides	4
Partitions possible	yes
Surface	Strip galvanized
Usable cross-section	1780 mm²
Width	100 mm
With perforation	yes

All types

All types

Types	Length	Dimension B	Dimension H	Colour	Item no.	Quantity	SSU
PLM D 0410 FS	2000 mm	100 mm	40 mm	zinc	7218004	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Joint connector set, duct height 40 mm	PLM SI 0410	7218028	piece	1 piece

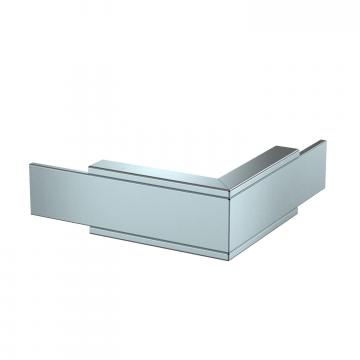

External corner, duct height 40 mm, FS	PLM EC 0410 FS	7218038	piece	1 piece

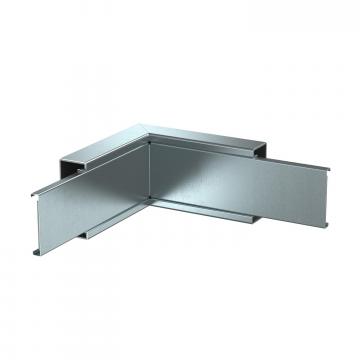

Internal corner, duct height 40 mm, FS	PLM IC 0410 FS	7218050	piece	1 piece

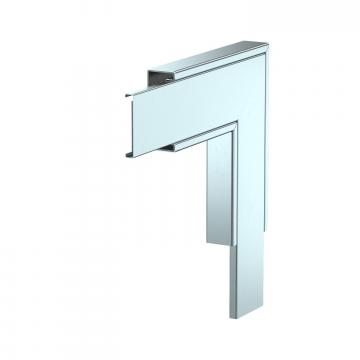

Flat angle, duct height 40 mm, FS	PLM FA 0410 FS	7218062	piece	1 piece

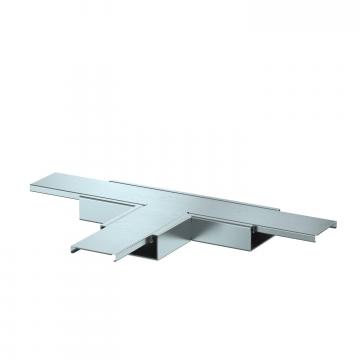

T branch piece, duct height 40 mm, FS	PLM TB 0410 FS	7218074	piece	1 piece

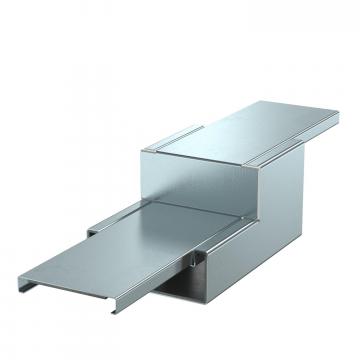

Reducer, straight, from 80 mm to 40 mm duct height, FS	PLM RP 0810 FS	7218098	piece	1 piece

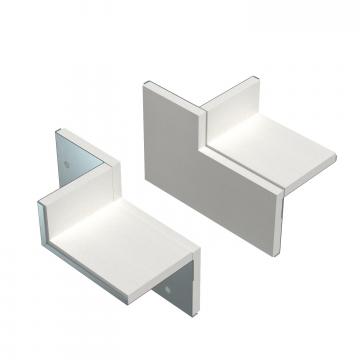

Wall connection set, 2-sided, for corner mounting, duct height 40 mm, FS	PLM CC 0410 FS	7218134	piece	1 piece

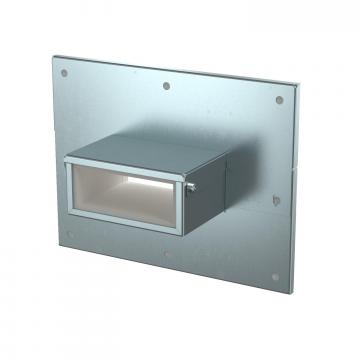

Wall connection collar, 3- and 4-sided, duct height 40 mm, FS	PLM WC 0410 FS	7218122	piece	1 piece

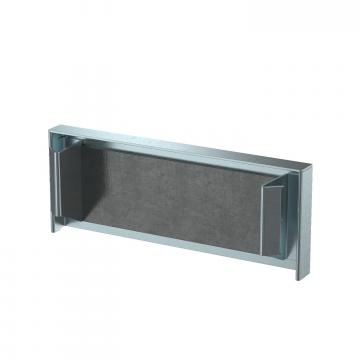

End piece, duct height 40 mm, FS	PLM EP 0410 FS	7218086	piece	1 piece

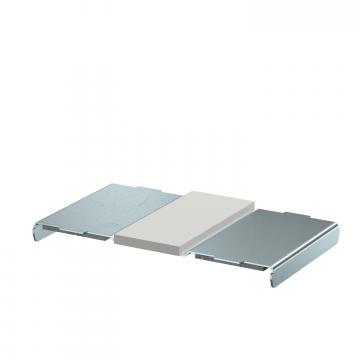

Cover support, duct width 100 mm	PLM LS 100	7218034	piece	1 piece

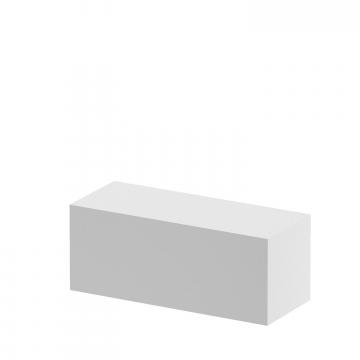

Foam seal, duct height 40 mm	PLM CO 0410	7218158	piece	1 piece

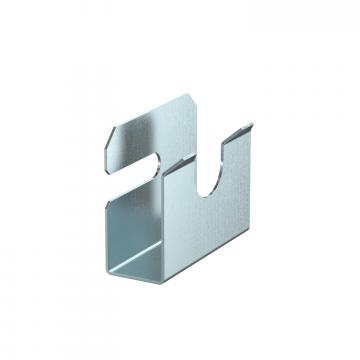

Pressure clip for wall mounting, duct height 40 mm	PLM WB 0410 FS	7218152	piece	10 piece

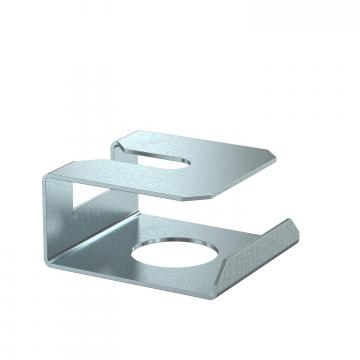

Pressure clip for ceiling mounting, duct height 40 mm	PLM CB 0410 FS	7218146	piece	10 piece

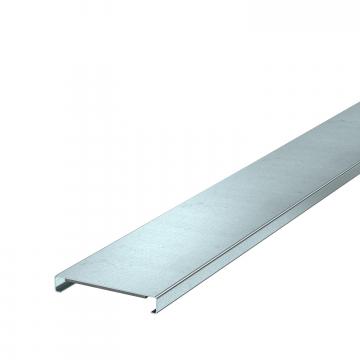

Installation duct cover, duct width 100 mm, FS	PLM LI 100 FS	7218020	m	2 m

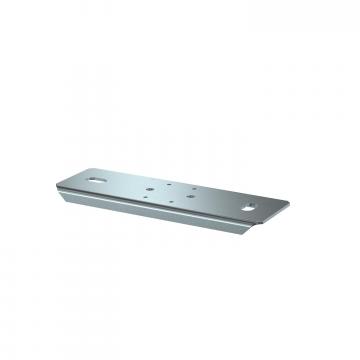

Support, duct width 100 mm, FS	PLM SU 100 FS	7218164	piece	1 piece
Separating retainer 30 FS	TSG 30 FS	6062050	m	3 m

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Ablation coating PYROCOAT® in a cartridge	ASX-K	7202310	piece	1 piece

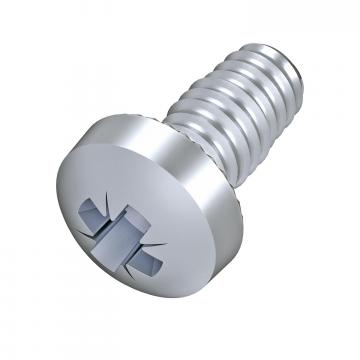

Connector screw	PLM SF 4x8	3498092	piece	100 piece

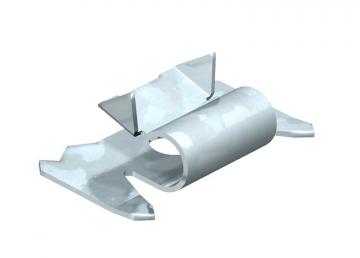

Locking bracket RKV3V	RKV3V	6288700	piece	20 piece
