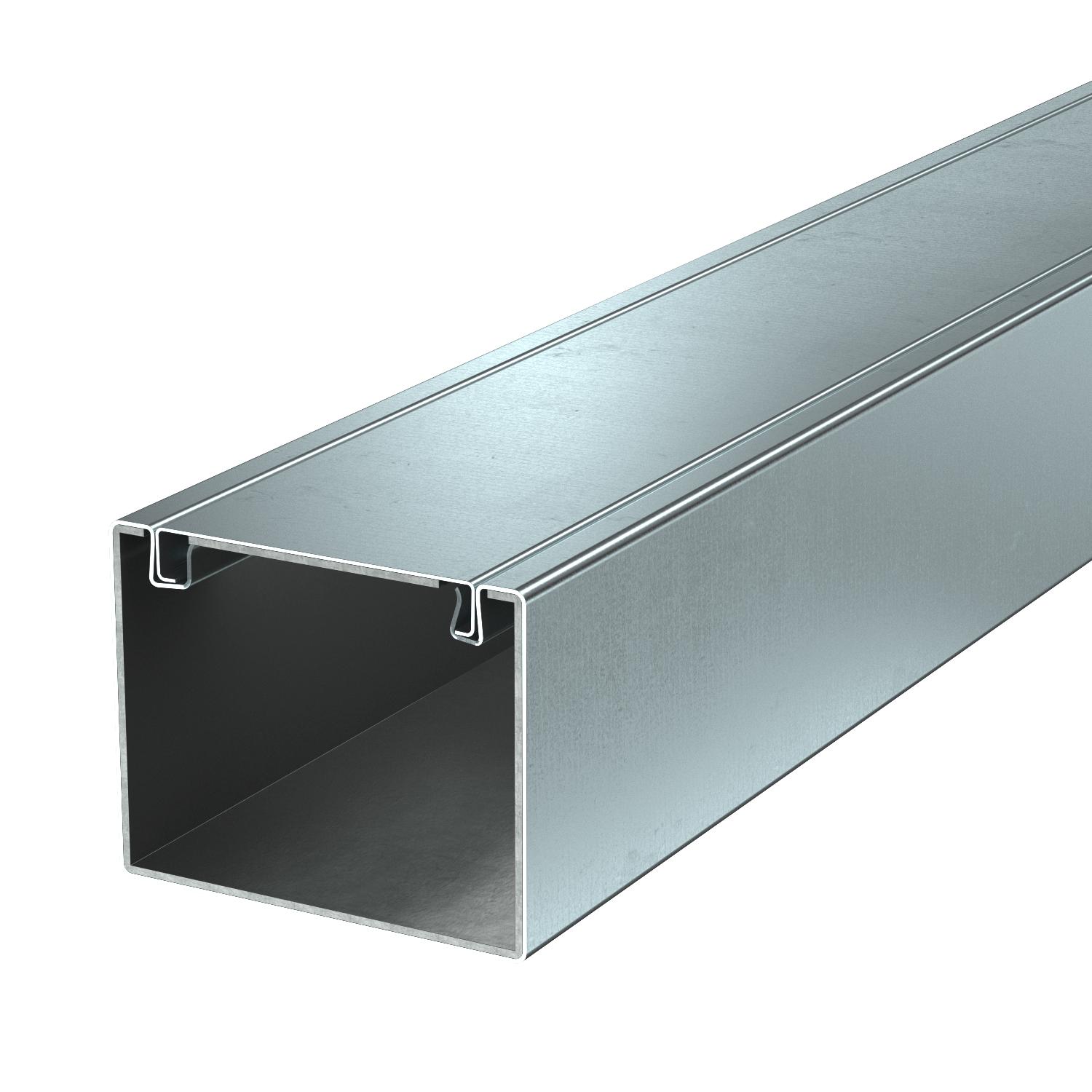

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 80 mm, FS 2000 | 100 | 80 | zinc

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 80 mm, FS

Item no. 7218008 | EAN 4012197351229

Item no. / Types	7218008 / PLM D 0810 FS

Length	2000 mm

Dimension B	100 mm

Dimension H	80 mm

Colour	zinc

Product description

Product description

Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.

Technical data

Technical data

Classification EI − installation duct	90
Colour	zinc
Cover fastening	Miscellaneous
CO₂ Footprint (GWP) Cradle-to-Gate	1,5889 kg CO₂e / 1 Meter
Dimension	80x100x2000
Dimension B	100 mm
Dimension H	80 mm

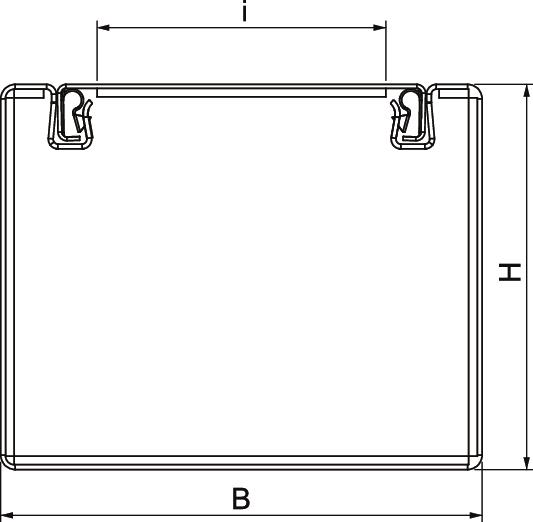

Dimension i	62 mm
Height	80 mm
Internal height	74 mm

Internal width	94 mm
Jacketing	Steel
Length	2000 mm
Material	Steel
Number of flammable sides	4
Partitions possible	yes
Surface	Strip galvanized
Usable cross-section	5180 mm²
Width	100 mm
With perforation	yes

All types

All types

Types	Length	Dimension B	Dimension H	Colour	Item no.	Quantity	SSU
PLM D 0810 FS	2000 mm	100 mm	80 mm	zinc	7218008	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Joint connector set, duct height 80 mm	PLM SI 0810	7218030	piece	1 piece

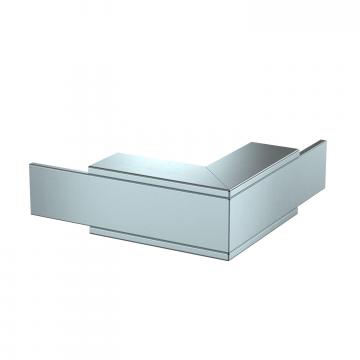

External corner, duct height 80 mm, FS	PLM EC 0810 FS	7218042	piece	1 piece

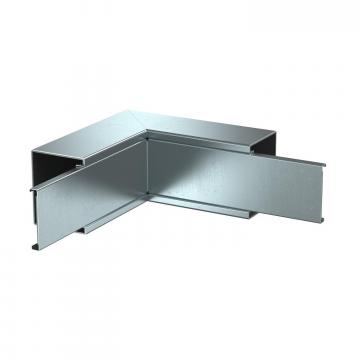

Internal corner, duct height 80 mm, FS	PLM IC 0810 FS	7218054	piece	1 piece

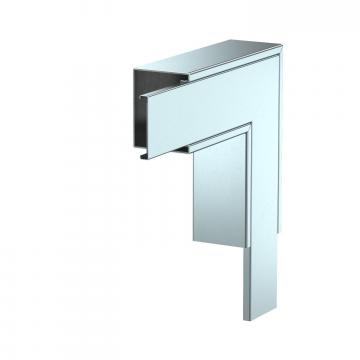

Flat angle, duct height 80 mm, FS	PLM FA 0810 FS	7218066	piece	1 piece

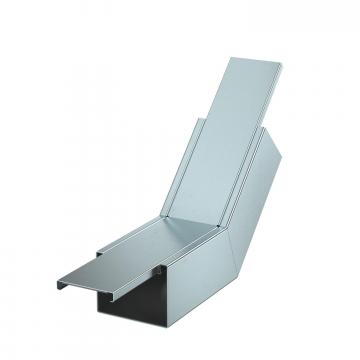

Vertical bend, rising, duct height 80 mm, FS	PLM BR 0810 FS	7218114	piece	1 piece

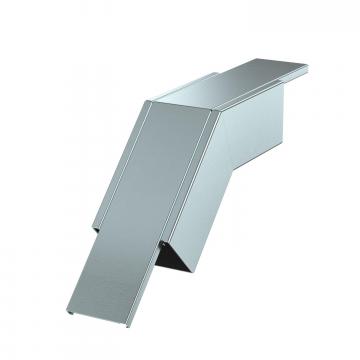

Vertical bend, falling, duct height 80 mm, FS	PLM BF 0810 FS	7218106	piece	1 piece

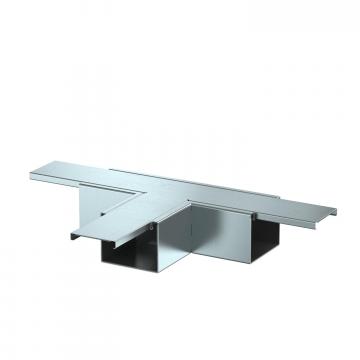

T branch piece, duct height 80 mm, FS	PLM TB 0810 FS	7218078	piece	1 piece
Reducer, straight, from 80 mm to 40 mm duct height, FS	PLM RP 0810 FS	7218098	piece	1 piece

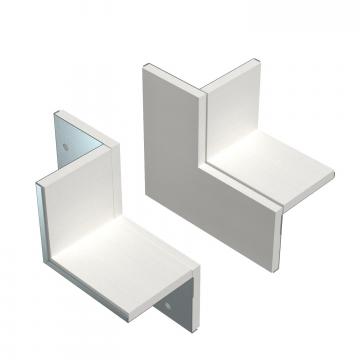

Wall connection set, double-sided, for corner mounting, duct height 80 mm, FS	PLM CC 0810 FS	7218138	piece	1 piece

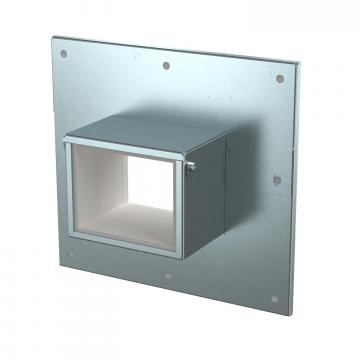

Wall connection collar, 3- and 4-sided, duct height 80 mm, FS	PLM WC 0810 FS	7218126	piece	1 piece

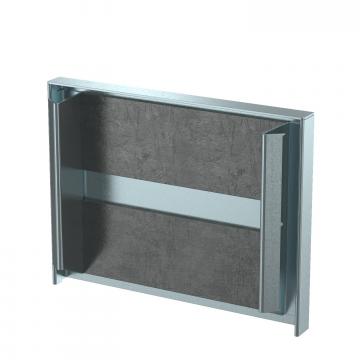

End piece, duct height 80 mm, FS	PLM EP 0810 FS	7218090	piece	1 piece
Cover support, duct width 100 mm	PLM LS 100	7218034	piece	1 piece
Foam seal, duct height 80 mm	PLM CO 0810	7218160	piece	1 piece
Pressure clip for wall mounting, duct height 80 mm	PLM WB 0810 FS	7218154	piece	10 piece
Pressure clip for ceiling mounting, duct height 80 mm	PLM CB 0810 FS	7218148	piece	10 piece
Installation duct cover, duct width 100 mm, FS	PLM LI 100 FS	7218020	m	2 m
Support, duct width 100 mm, FS	PLM SU 100 FS	7218164	piece	1 piece
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Ablation coating PYROCOAT® in a cartridge	ASX-K	7202310	piece	1 piece
Connector screw	PLM SF 4x8	3498092	piece	100 piece
Locking bracket RKV3V	RKV3V	6288700	piece	20 piece
