Insulated air-termination rod

Item no. 5408947 | EAN 4012195785347

Item no. / Types

Length

Product description

Product description

• For the isolated creation of air-termination systems
• Suitable for isFang air-termination rod stand, type isFang 3B-100/150
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• For installation on the building structure with isFang support
• Fastening of the OBO isCon® conductor possible using accessories
• Suitable for externally routed isCon® conductors
• Aluminium standpipe
• Centre section made of fibre-glass reinforced plastic (GFK)
• Aluminium air-termination tip

Technical data

Technical data

Colour	Light grey
Connection	Round conductor

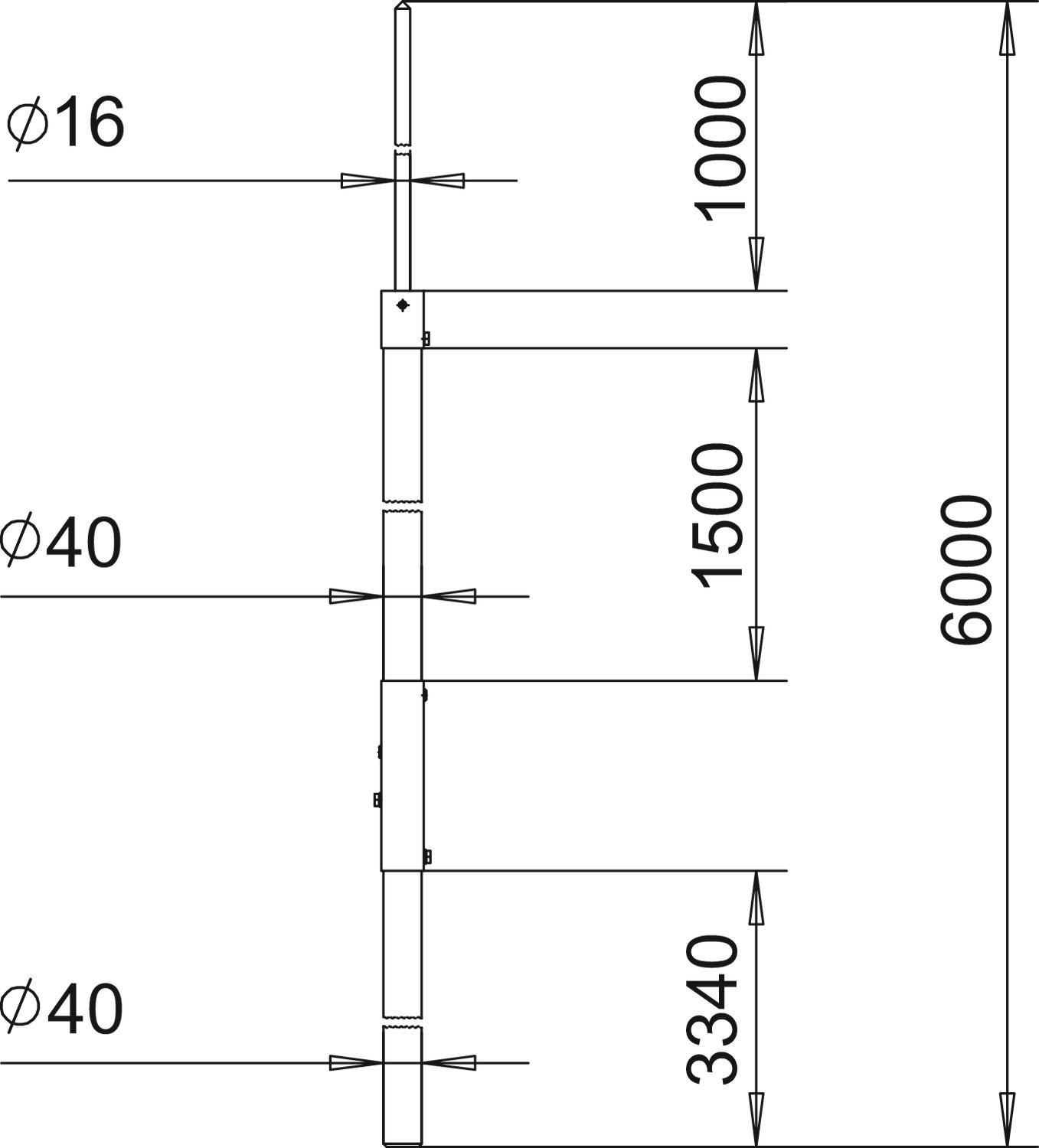

Dimension	6000mm
Dimension A	3340 mm
Dimension B	1000 mm
Dimension d min.	40 mm

Dimension H	1500 mm
High voltage-resistant, insulated version	yes
Length	6000 mm
Material	Fibre-glass-reinforced plastic
Version for	Air-termination rod

All types

All types

Types	Length	Item no.	Quantity	SSU
isFang 4000 AL	4000 mm	5408943	piece	1 piece
isFang 6000 AL	6000 mm	5408947	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Concrete base for FangFix system, min. 16 kg	F-FIX-S16	5403227	piece	1 piece
Base for FangFix system 16 kg for mounting the isFang tripod	F-FIX-B16 3B	5403238	piece	10 piece
isFang tripod	isFang 3B-100 AL	5408966	piece	1 piece
isFang-3B threaded rod	isFang 3B-G2	5408972	piece	3 piece
