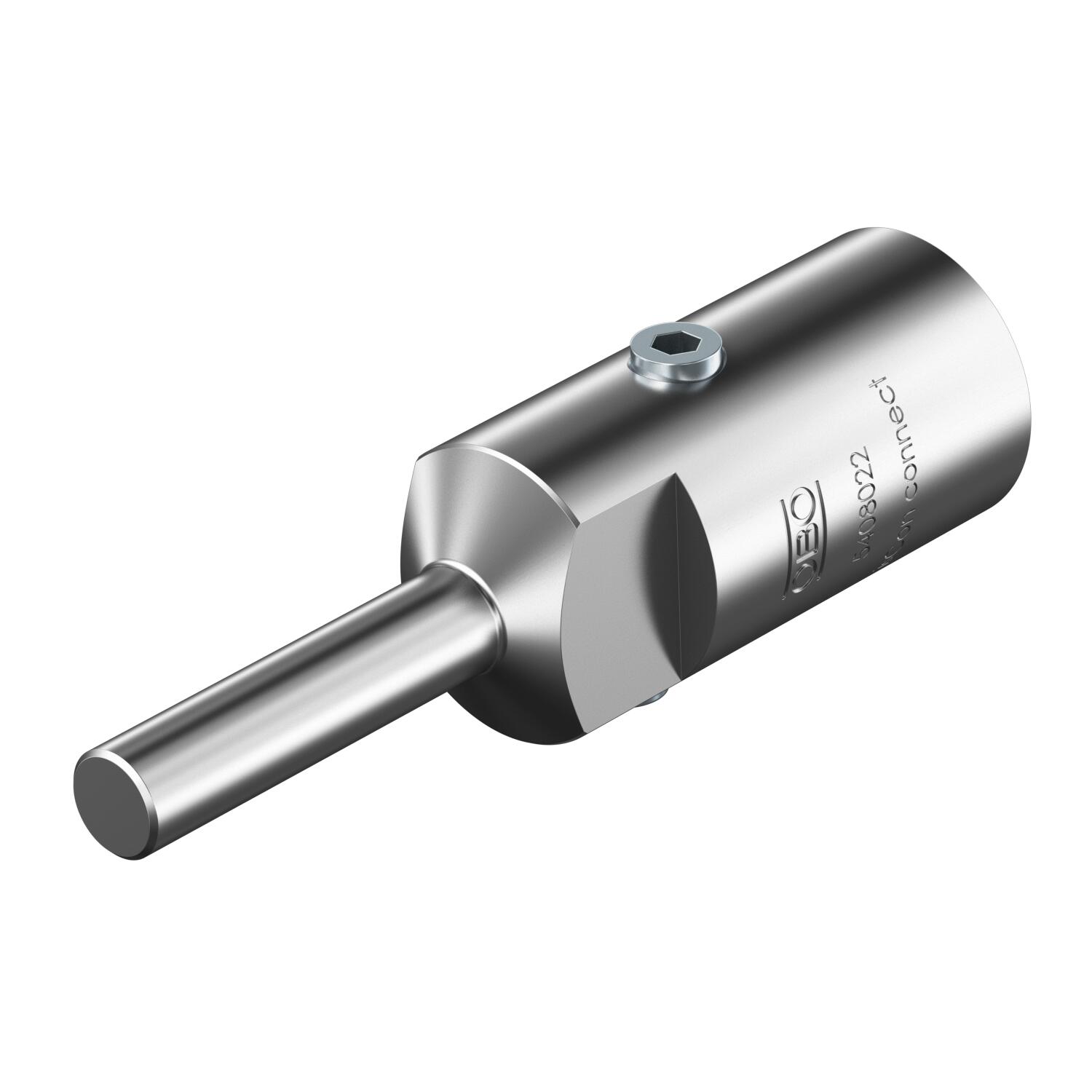

isCon® connection element
Item no. 5408022 | EAN 4012195674689
- Product description
-
Product description
• Screw-on termination of the connection for the isCon® conductor
• Incl. heat-shrinkable sleeve, hexagonal and screw lock
• Tested up to 150 kA (lightning protection class II)
-
- Technical data
-
Technical data

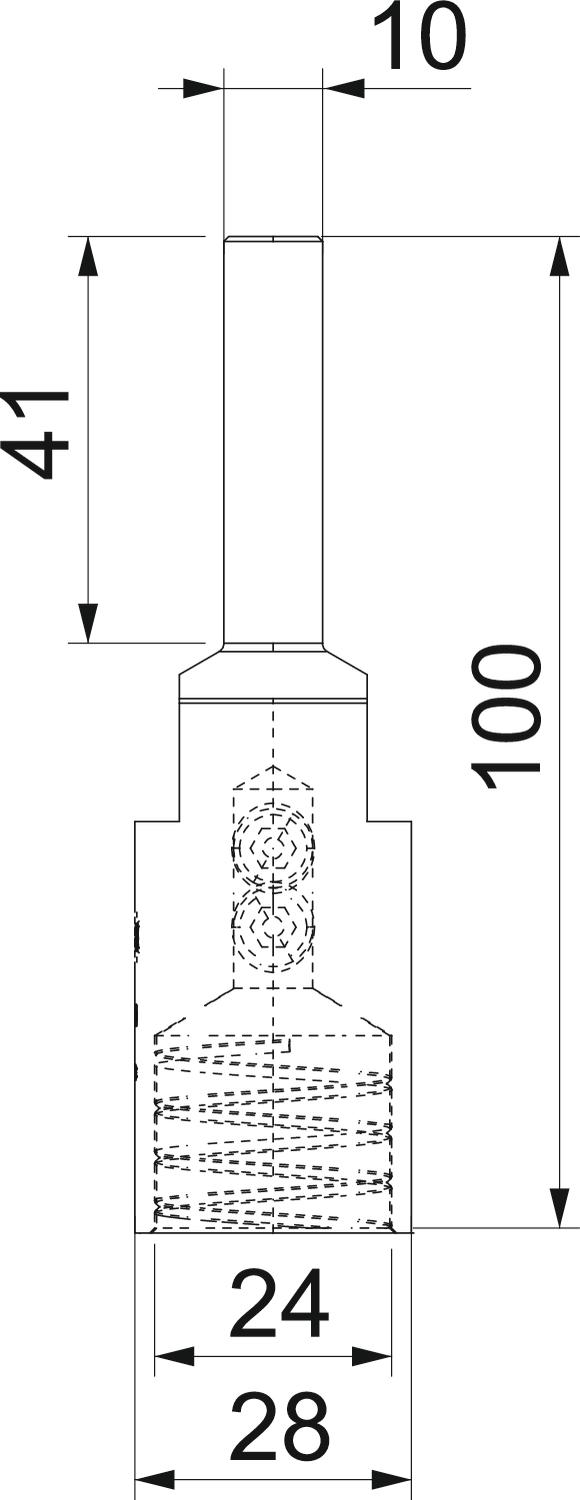

Clamping range, max. 23 mm Dimension Ø23mm Dimension d min. 28 mm Fit 23 mm Lightning current carrying capacity H1/150 kA Material Stainless steel - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Stripping tool for isCon® conductor
isCon stripper 2 5408013 1 piece - Downloads
-
Data sheet isCon connect / 5408022 , 0.16MB , pdfDeclaration of conformity isCon connect / 5408022 , 0.06MB , pdfREACH Declaration of conformity isCon connect / 5408022 , 0.12MB , pdfRoHS Declaration of conformity isCon connect / 5408022 , 0.12MB , pdfMounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdfMounting instructions Mounting instructions, isCon® connect , 0.09MB , pdfSafety data sheet Safety datasheet, screw lock varnish , 2.00MB , pdf
