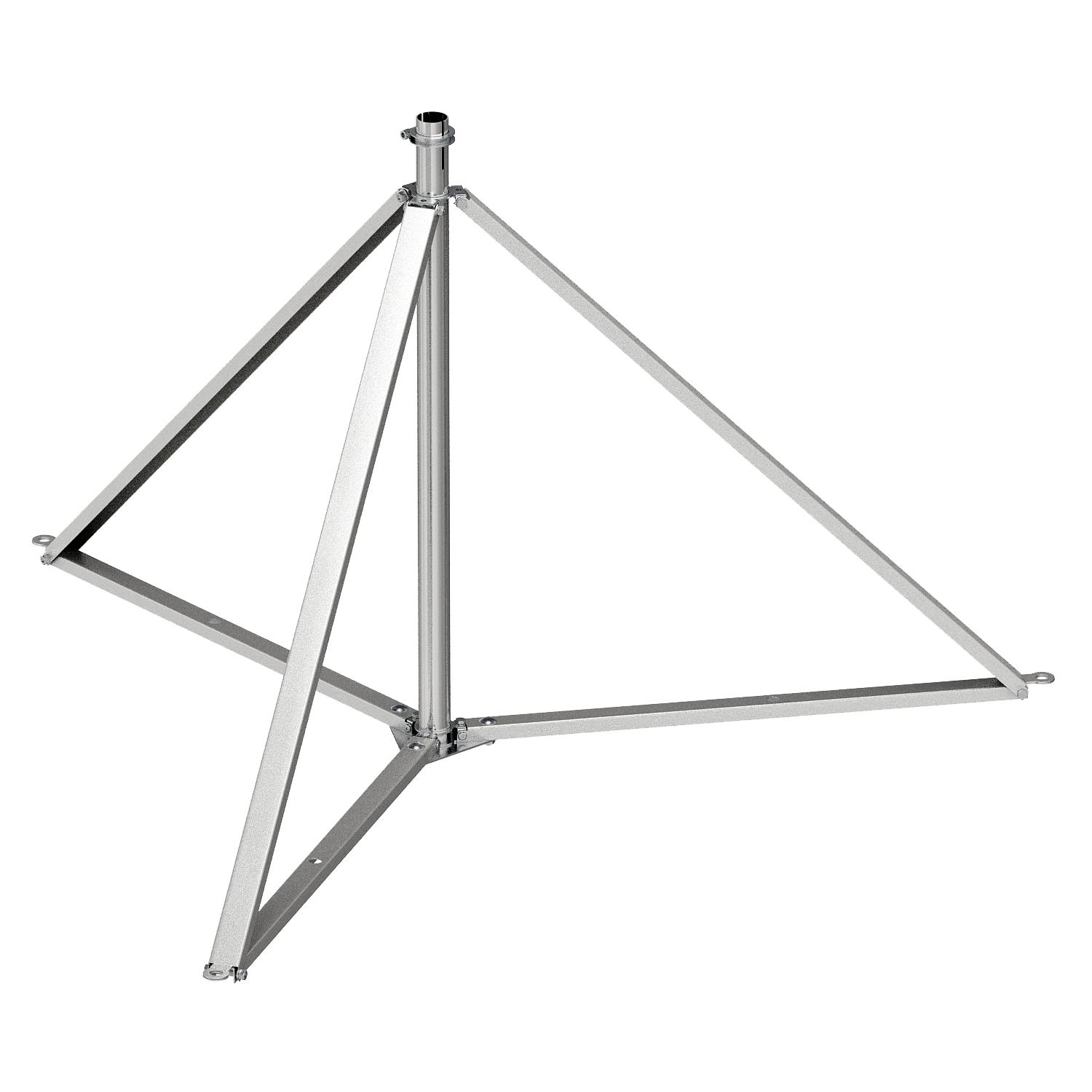

isFang tripod
Item no. 5408967 | EAN 4012195802440
- Product description
-
Product description
• Installation of free-standing air-termination rods as well as insulated air-termination rods with 40 mm diameter
• Roof slope to max. 5 degrees
• Incl. Rd 8–10 crossbar for quick round conductor fastening
• Concrete base as well as threaded rods should be ordered separately
-
- Technical data
-
Technical data

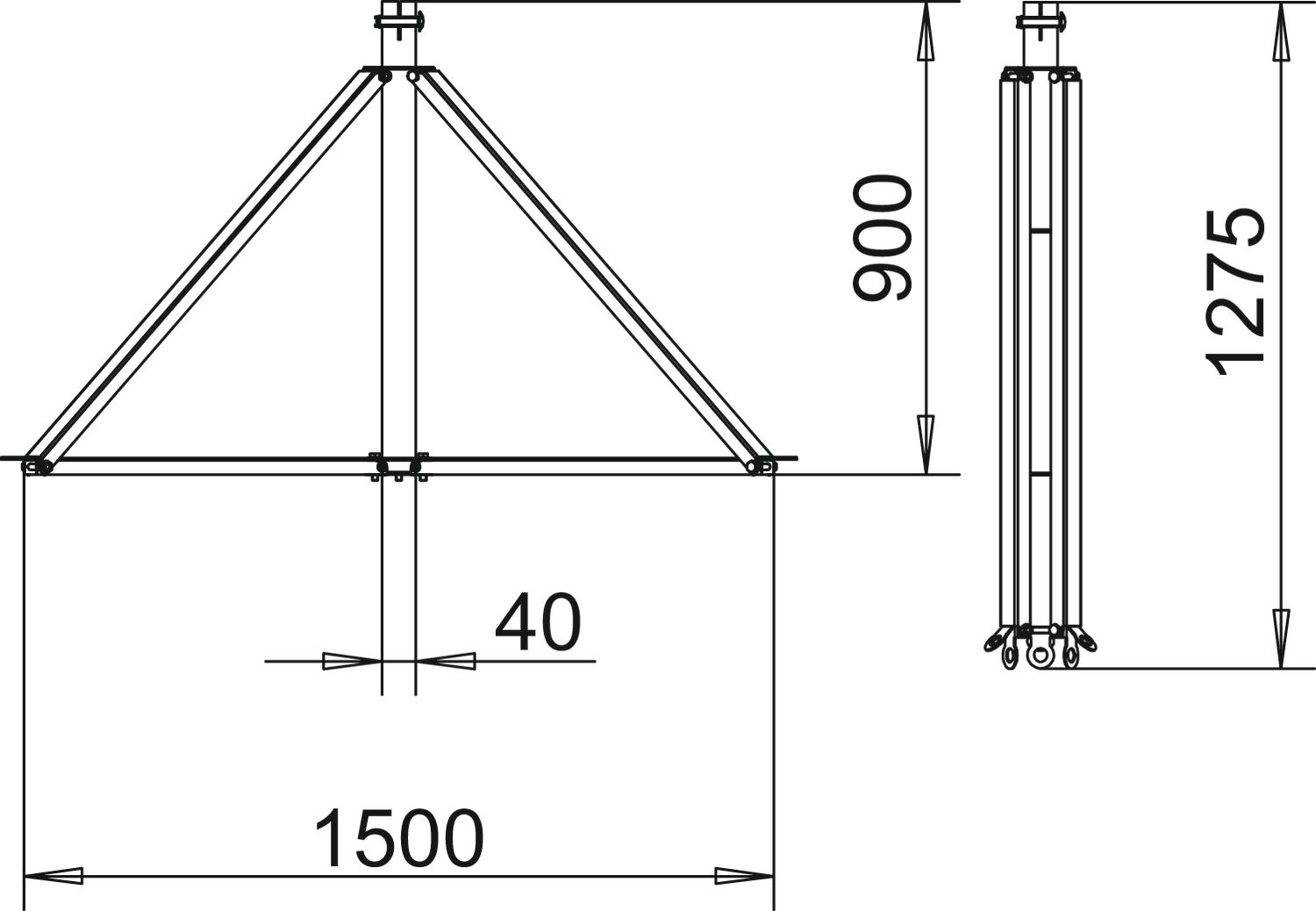

Air-termination rod holder Screwless Diameter 1500 mm Dimension 1,65x1,85m Dimension B 1500 mm Dimension d min. 40 mm Dimension H 1275 mm Dimension L 900 mm Material Aluminium Version for Stand - All types
- Downloads
-
Data sheet isFang 3B-150 AL / 5408967 , 0.17MB , pdfDeclaration of conformity isFang 3B-150 AL / 5408967 , 0.06MB , pdfMounting instructions Mounting instructions, isFang tripod , 0.18MB , pdf
