ISO nail clip 2006, light grey 35 | 6 | 2,0x35 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2006, light grey

Item no. 2227371 | EAN 4012195606970

Item no. / Types

Nail length

for cable diameter	6 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	6mm, L35
Dimension B	8 mm
Dimension H	8,1 mm
Dimension L	12,5 mm
Double clip	no
for cable diameter	6 mm
For nail diameter	2,0x35
Halogen-free	yes

Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	35 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2006 35 LGR SP	35 mm	6 mm	2,0x35	Light grey; RAL 7035	2227371	piece	200 piece
2006 25 LGR	25 mm	6 mm	2,0x25	Light grey; RAL 7035	2227428	piece	100 piece
2006 35 LGR	35 mm	6 mm	2,0x35	Light grey; RAL 7035	2227436	piece	100 piece
2006 25 LGR SP	25 mm	6 mm	2,0x25	Light grey; RAL 7035	2227460	piece	200 piece

Downloads

Data sheet 2006 35 LGR SP / 2227371 , 0.20MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2006 35 LGR SP / 2227371 , 0.06MB , pdf

Download

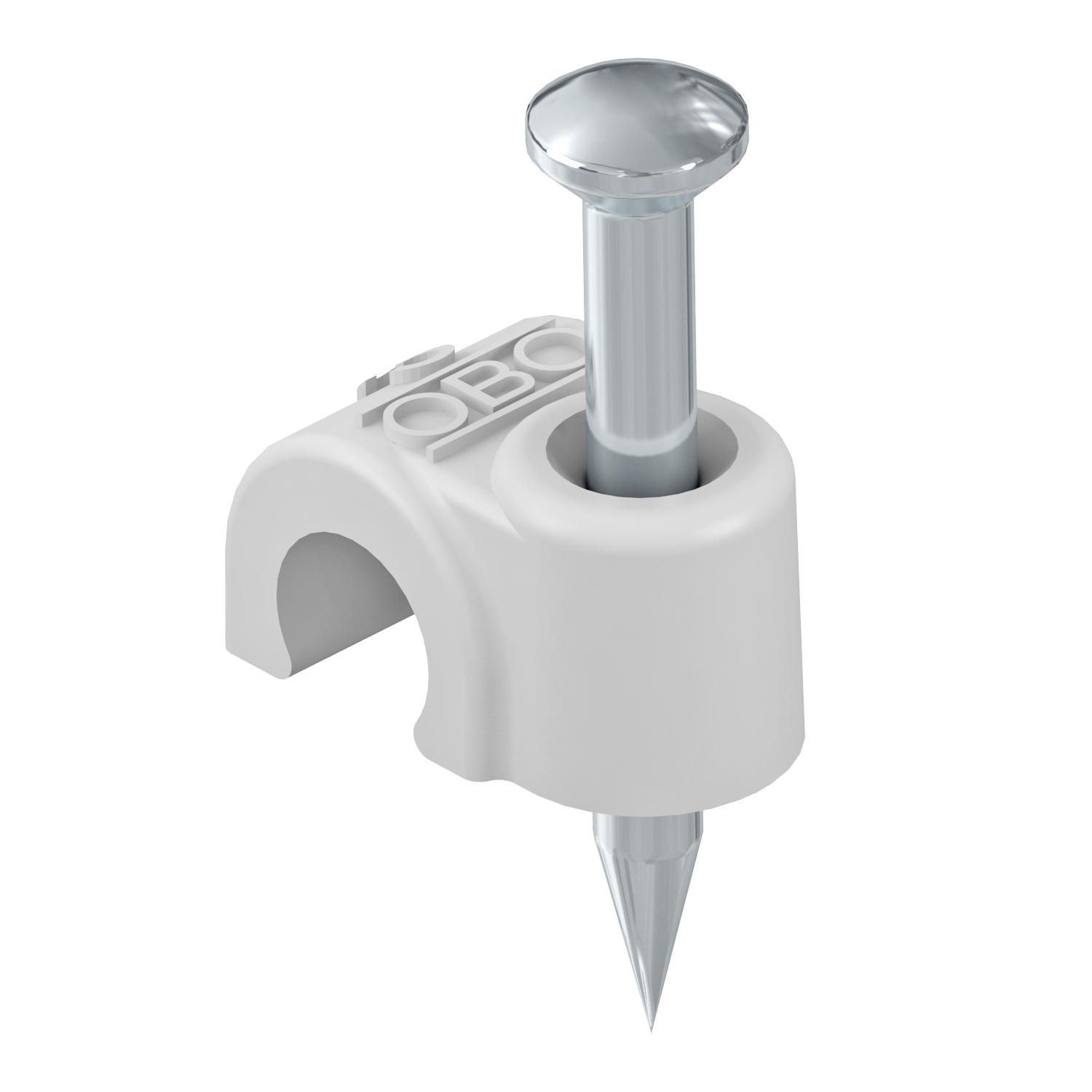

Product graphic 2006 35 LGR SP / 2227371, 42.51 kB, jpg

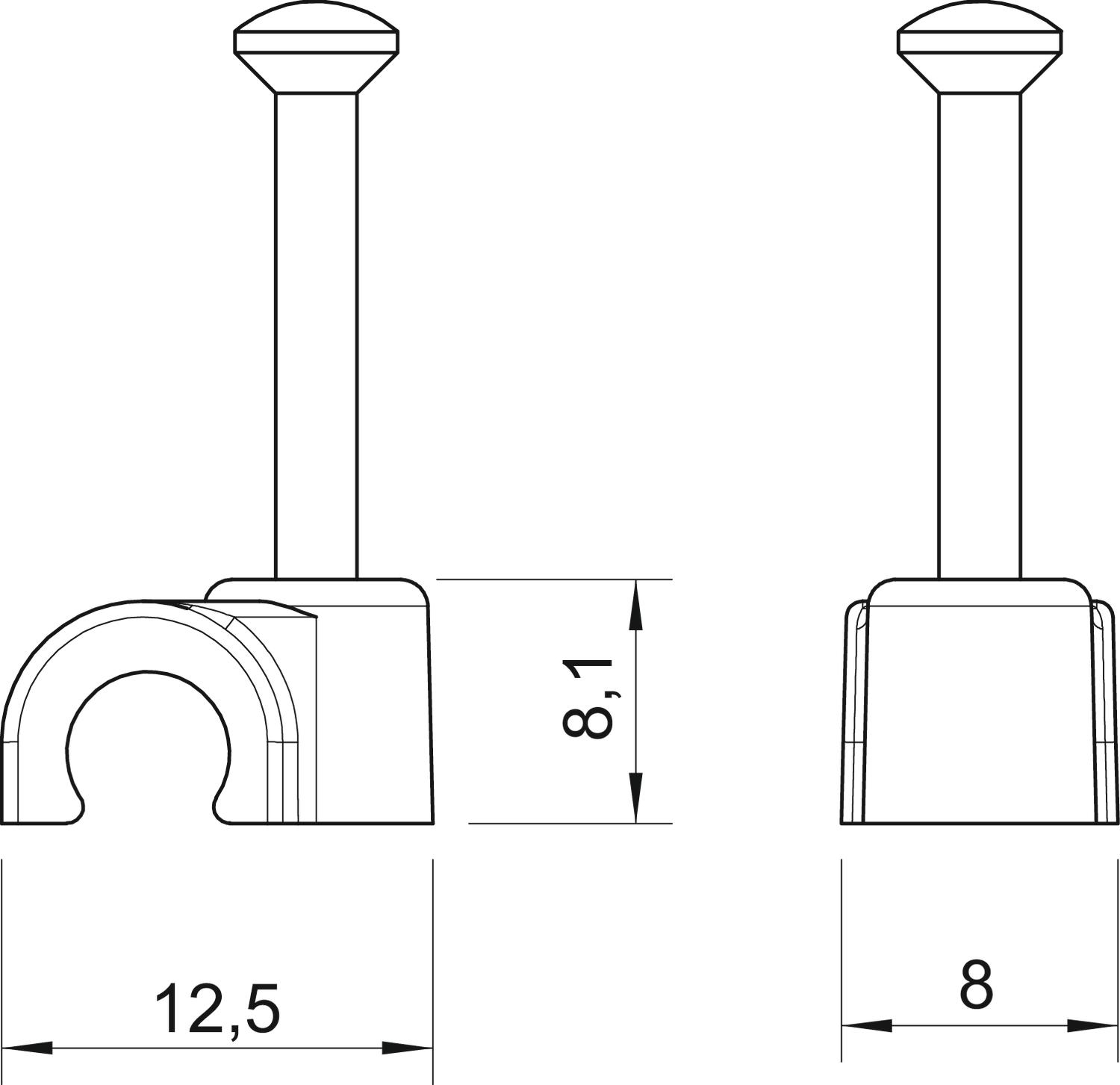

Scale drawing 2006 35 LGR SP / 2227371, 66.23 kB, jpg
