ISO nail clip 2007, light grey 25 | 7 | 2,0x25 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2007, light grey

Item no. 2227517 | EAN 4012195217756

Item no. / Types

Nail length

for cable diameter	7 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	7mm, L25
Dimension B	8 mm
Dimension H	9,4 mm
Dimension L	13,7 mm
Double clip	no
for cable diameter	7 mm
For nail diameter	2,0x25
Halogen-free	yes

Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	25 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2007 25 LGR	25 mm	7 mm	2,0x25	Light grey; RAL 7035	2227517	piece	100 piece
2007 35 LGR	35 mm	7 mm	2,0x35	Light grey; RAL 7035	2227525	piece	100 piece

Downloads

Data sheet 2007 25 LGR / 2227517 , 0.20MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2007 25 LGR / 2227517 , 0.06MB , pdf

Download

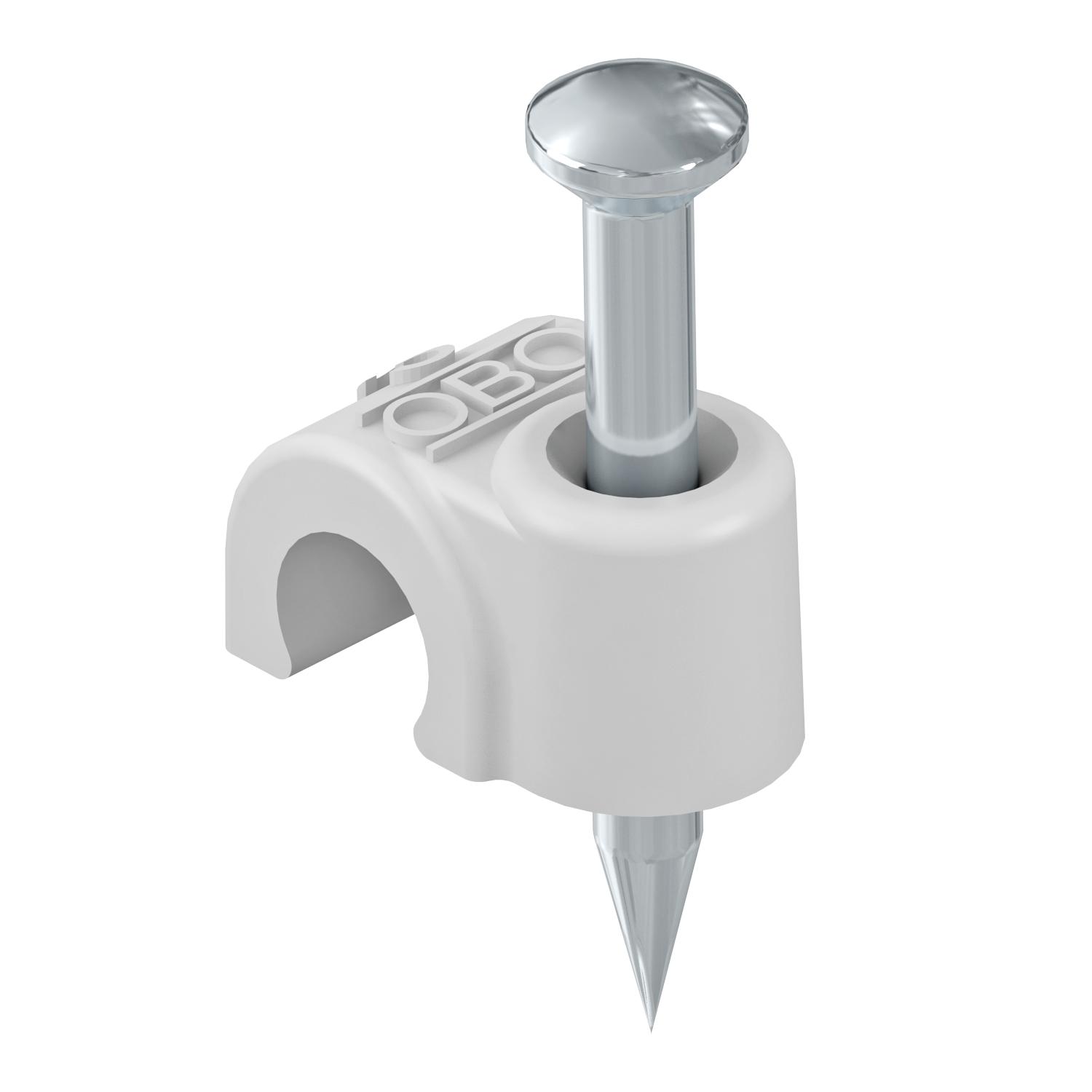

Product graphic 2007 25 LGR / 2227517, 42.51 kB, jpg

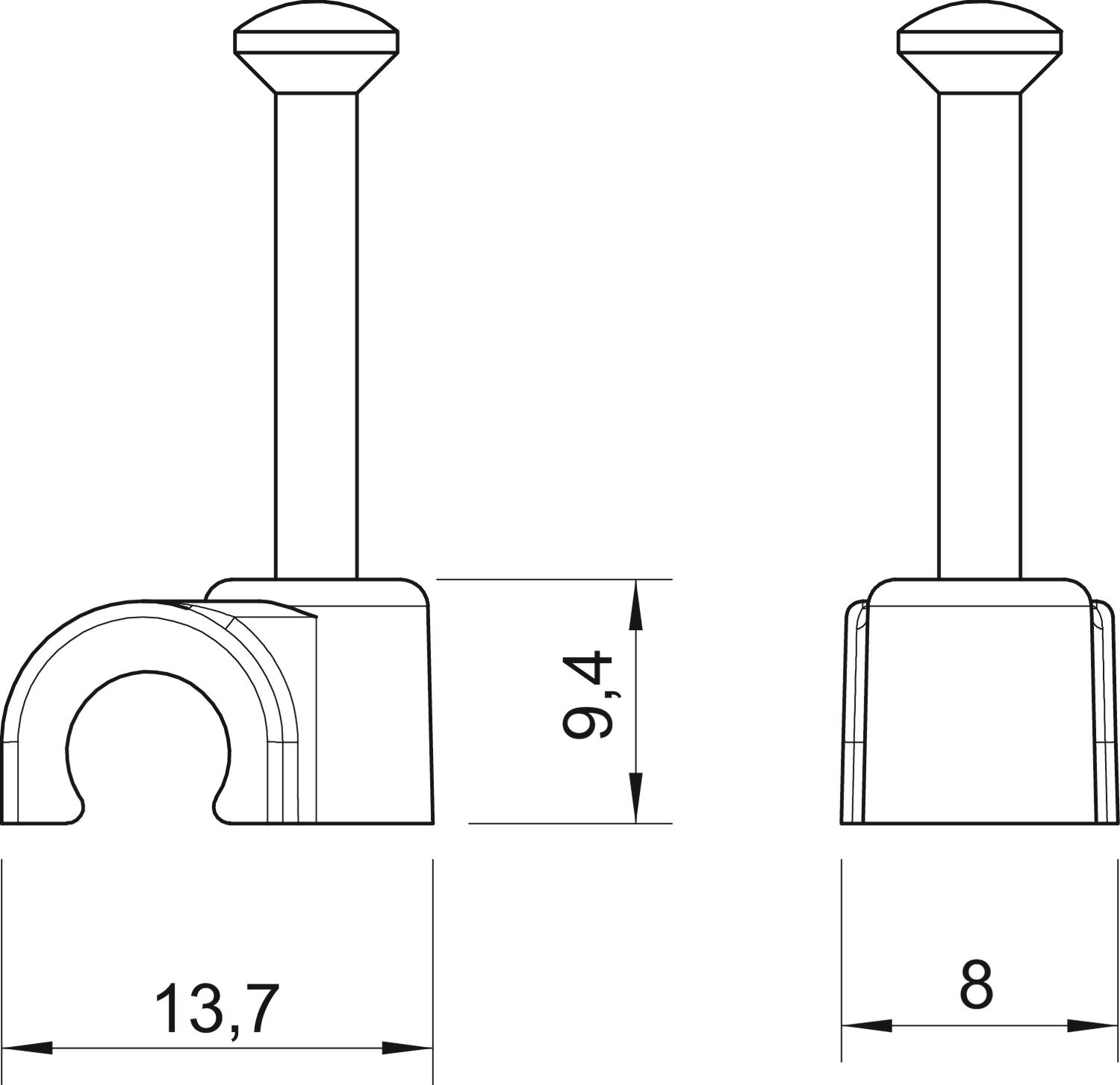

Scale drawing 2007 25 LGR / 2227517, 66.11 kB, jpg

2007 25 LGR / 2227517
