ISO nail clip 2007, pure white 25 | 7 | 2,0x25 | Pure white; RAL 9010
morepic-1 morepic-2

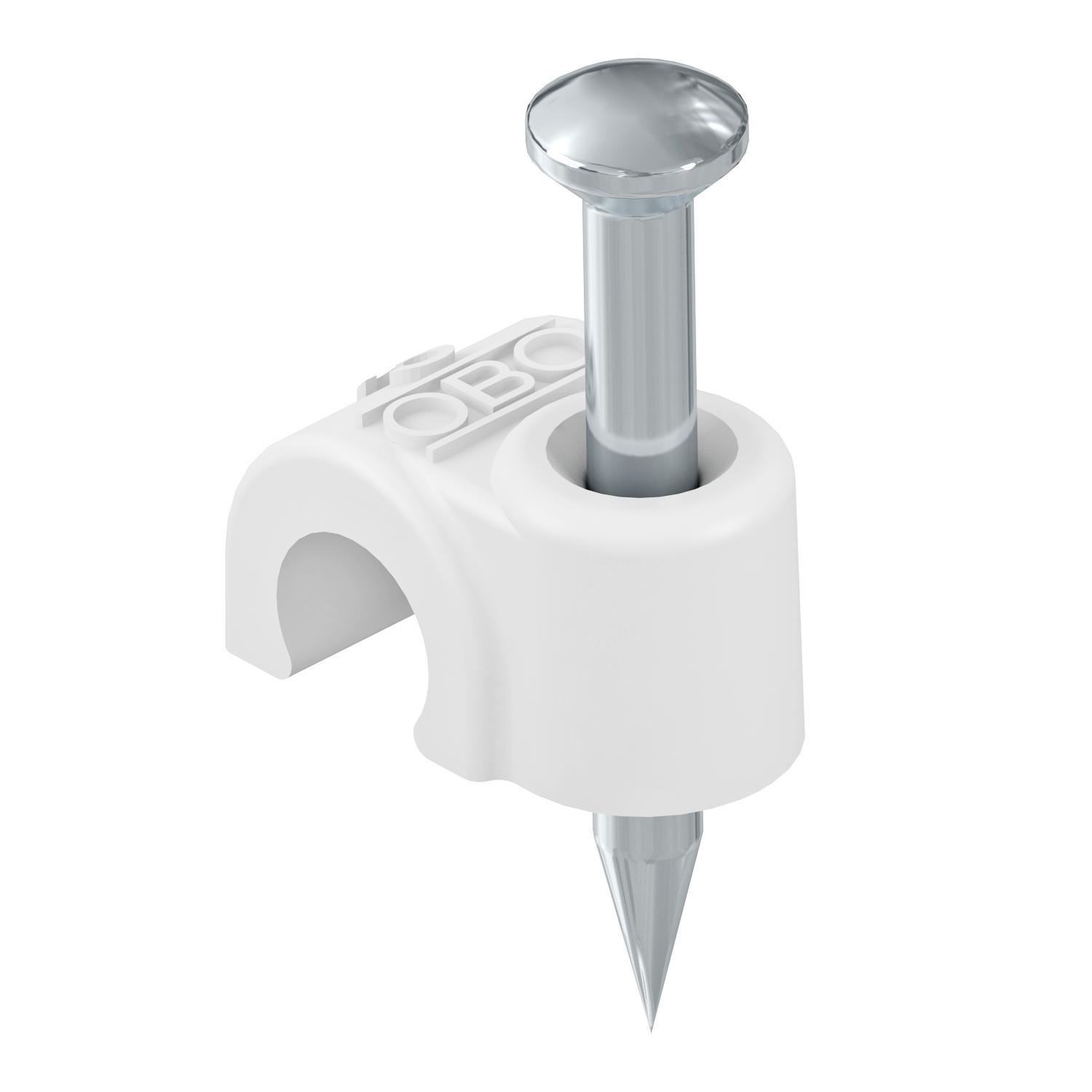

ISO nail clip 2007, pure white

Item no. 2225514 | EAN 4012195215356

7 mm
Pure white; RAL 9010
Product description
Product description
ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010

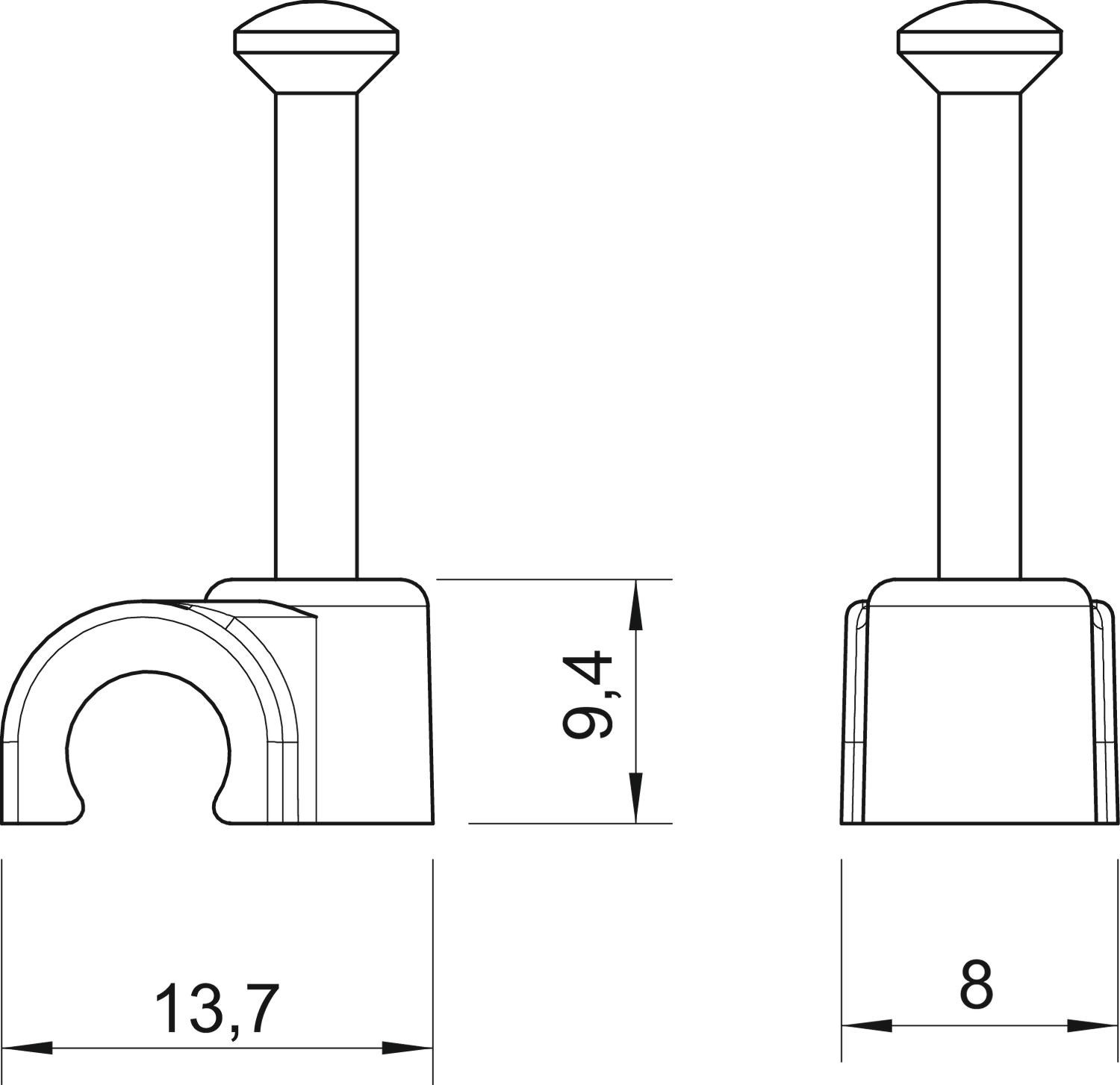

Dimension 7mm, L25
Dimension B 8 mm
Dimension H 9,4 mm
Dimension L 13,7 mm
Double clip no
for cable diameter 7 mm
For nail diameter 2,0x25
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2007 18 RW 18 mm 7 mm 2,0x18 Pure white; RAL 9010 2225506
100 piece
2007 25 RW 25 mm 7 mm 2,0x25 Pure white; RAL 9010 2225514
100 piece
2007 35 RW 35 mm 7 mm 2,0x35 Pure white; RAL 9010 2225522
100 piece
