- Product description
-

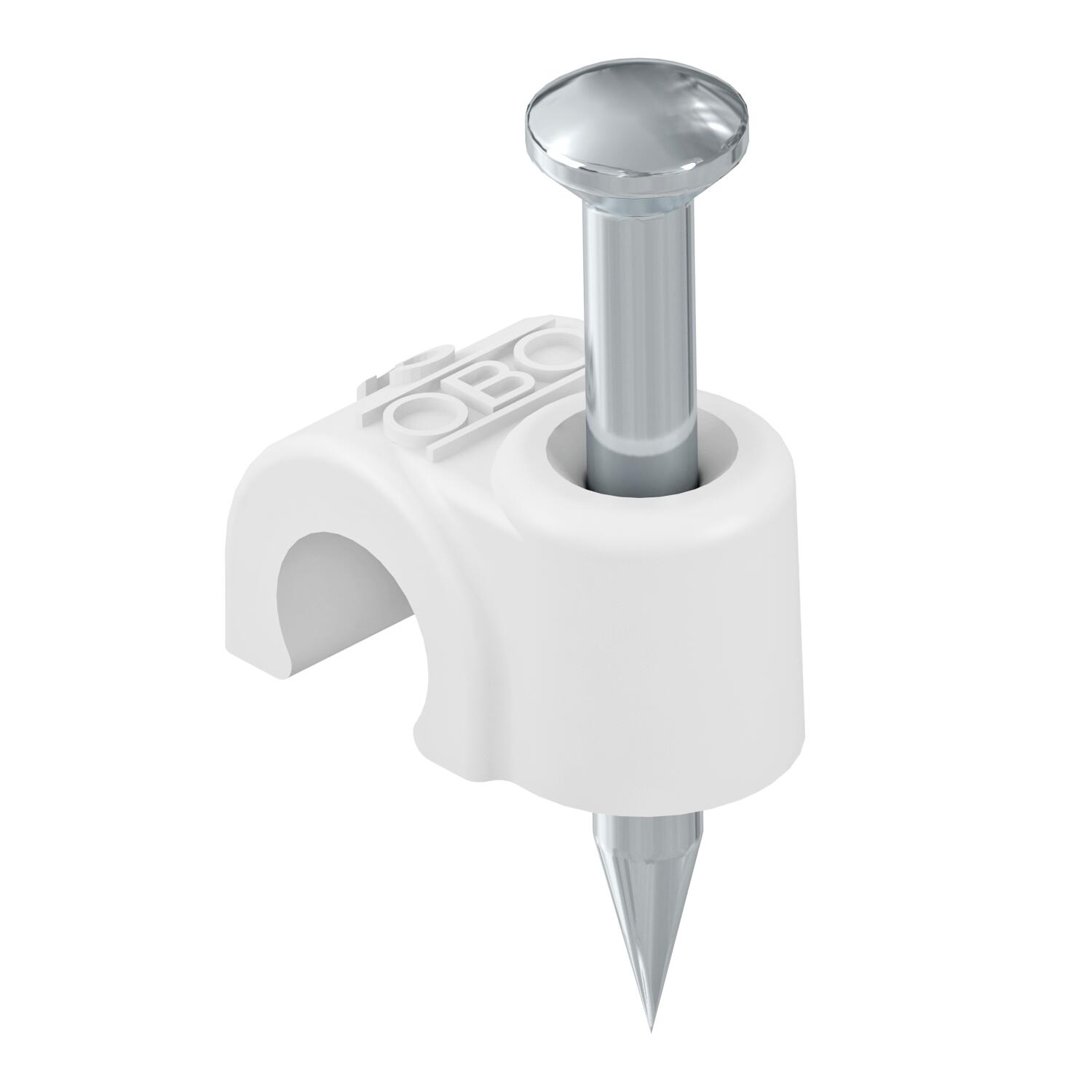

Product descriptionISO nail clip, short design
- Technical data
-
Technical data

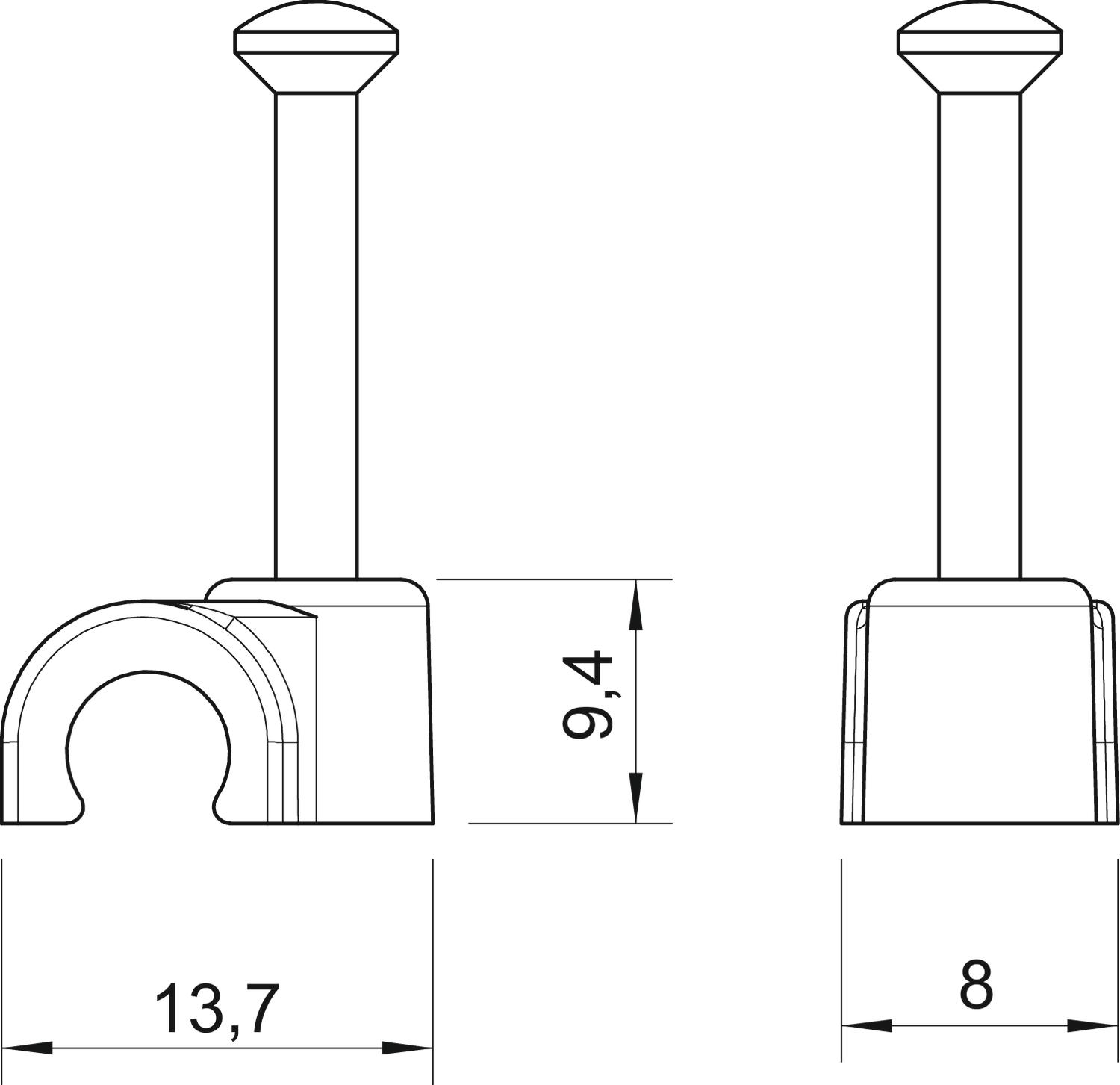

Colour Pure white; RAL 9010 Dimension 7mm, L35 Dimension B 8 mm Dimension H 9,4 mm Dimension L 13,7 mm Double clip no for cable diameter 7 mm For nail diameter 2,0x35 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 35 mm Pipe locking no Shape Round (for round conductor) With nail yes - All types
- Downloads
-
Data sheet 2007 35 RW / 2225522 , 0.18MB , pdfEU declaration of conformity 2007 35 RW / 2225522 , 0.06MB , pdf
