ISO nail clip 2008, pure white 35 | 8 | 2,0x35 | Pure white; RAL 9010

morepic-1

morepic-2

ISO nail clip 2008, pure white

Item no. 2225638 | EAN 4012195215592

Item no. / Types

Nail length

for cable diameter	8 mm

For nail diameter

Colour	Pure white; RAL 9010

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	8mm, L35
Dimension B	8 mm
Dimension H	10,6 mm
Dimension L	15 mm
Double clip	no
for cable diameter	8 mm
For nail diameter	2,0x35

Halogen-free	yes
Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	35 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2008 25 RW	25 mm	8 mm	2,0x25	Pure white; RAL 9010	2225611	piece	100 piece
2008 35 RW	35 mm	8 mm	2,0x35	Pure white; RAL 9010	2225638	piece	100 piece

Downloads

Data sheet 2008 35 RW / 2225638 , 0.16MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2008 35 RW / 2225638 , 0.06MB , pdf

Download

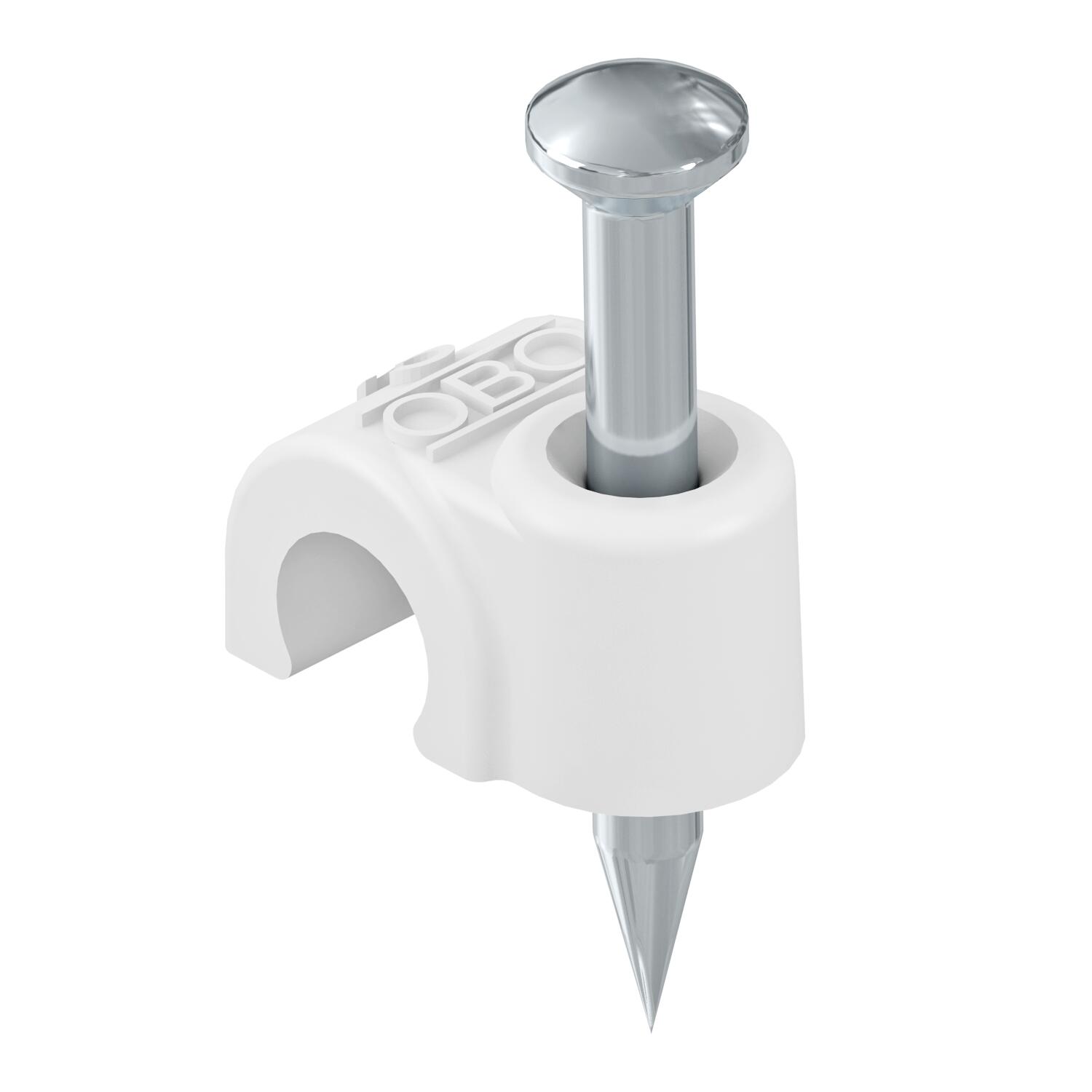

Product graphic 2008 35 RW / 2225638, 39.24 kB, jpg

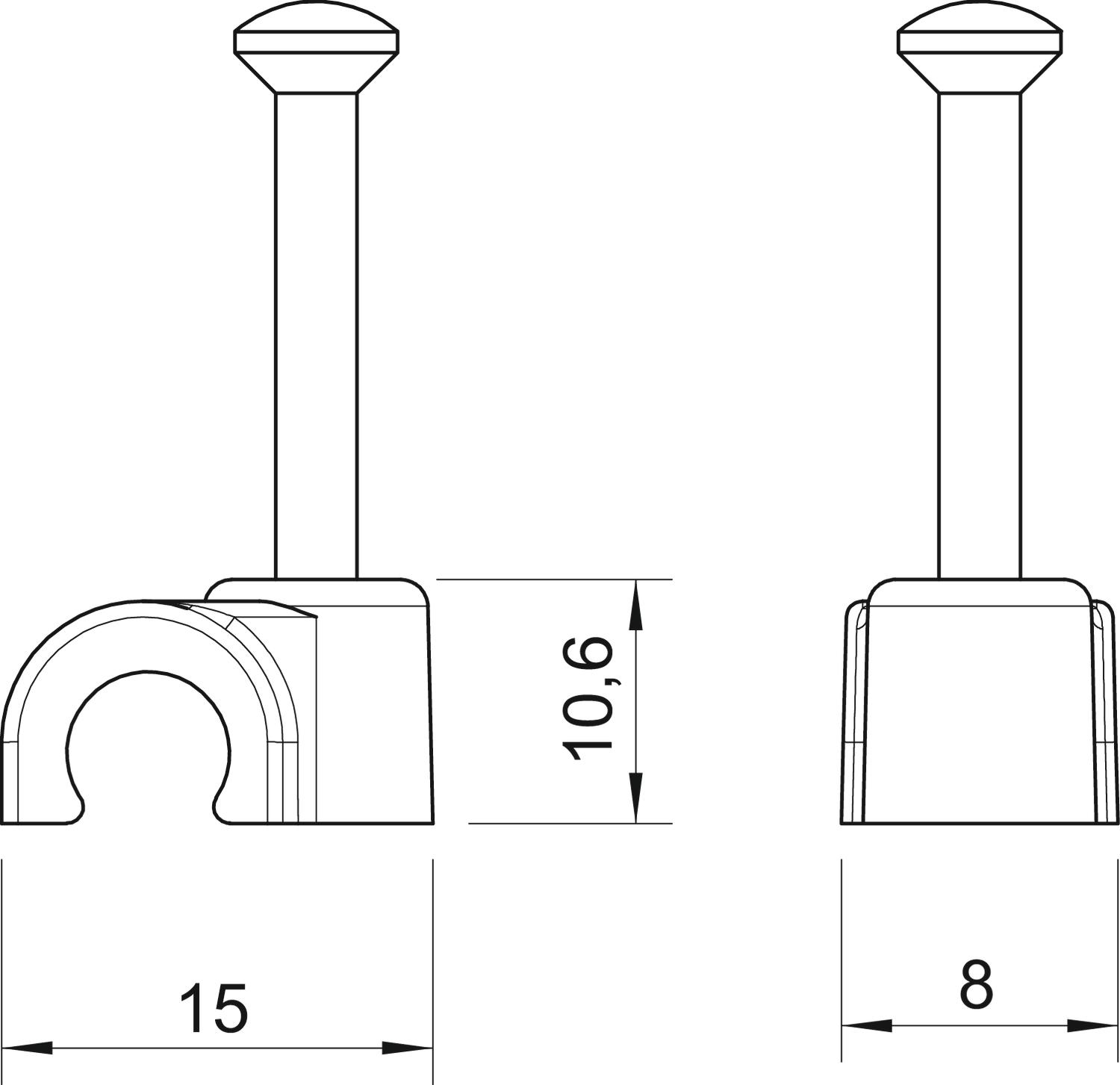

Scale drawing 2008 35 RW / 2225638, 65.93 kB, jpg

2008 35 RW / 2225638
