- Product description
-

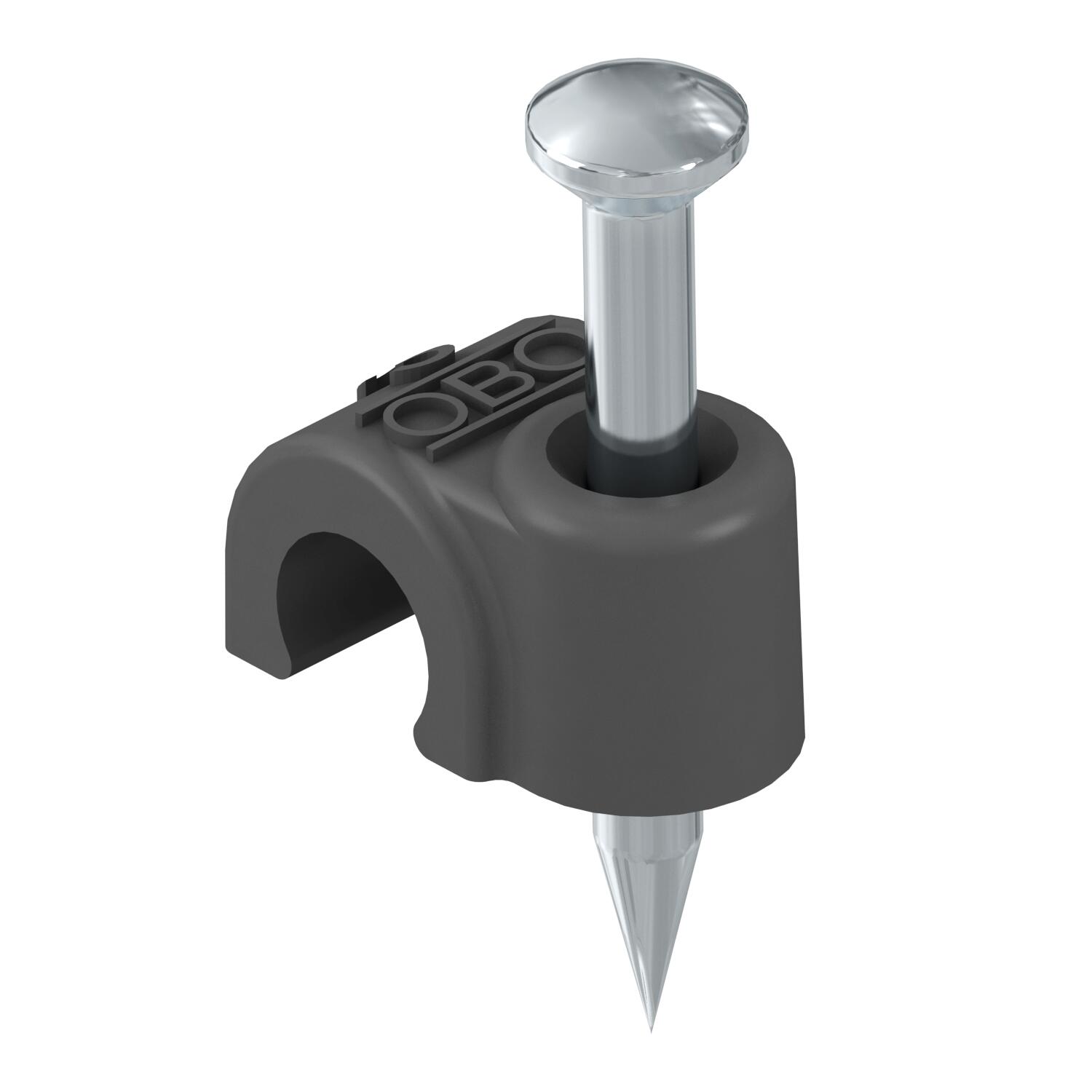

Product descriptionISO nail clip, short design
- Technical data
-
Technical data

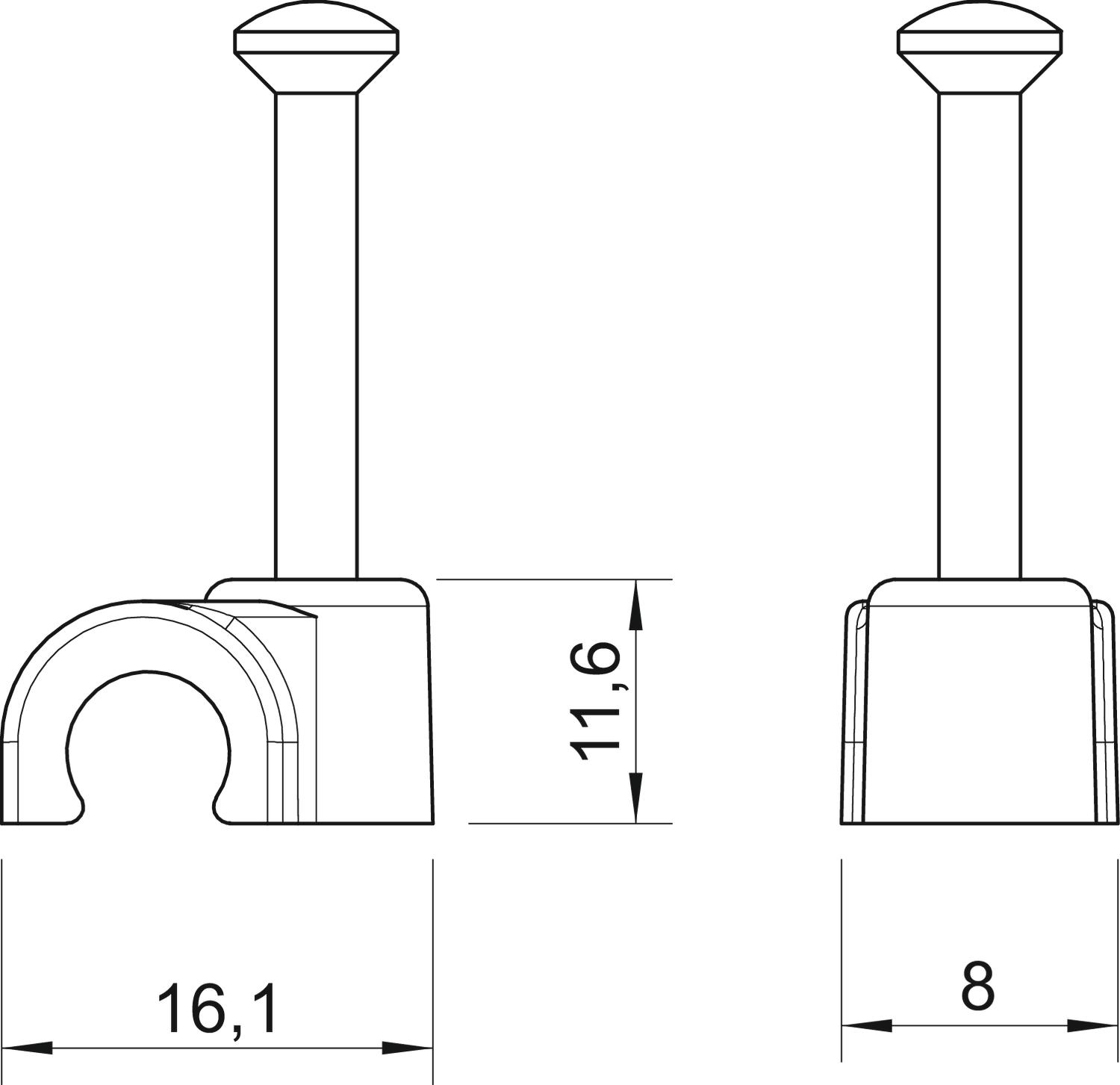

Colour Jet black; RAL 9005 Dimension 9mm, L25 Dimension B 8 mm Dimension H 11,6 mm Dimension L 16,1 mm Double clip no for cable diameter 9 mm For nail diameter 2,0x25 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 25 mm Pipe locking no Shape Round (for round conductor) Transparent no With nail yes - All types
- Downloads
-
Data sheet 2009 25 SW / 2232219 , 0.18MB , pdfEU declaration of conformity 2009 25 SW / 2232219 , 0.06MB , pdf
