- Product description
-

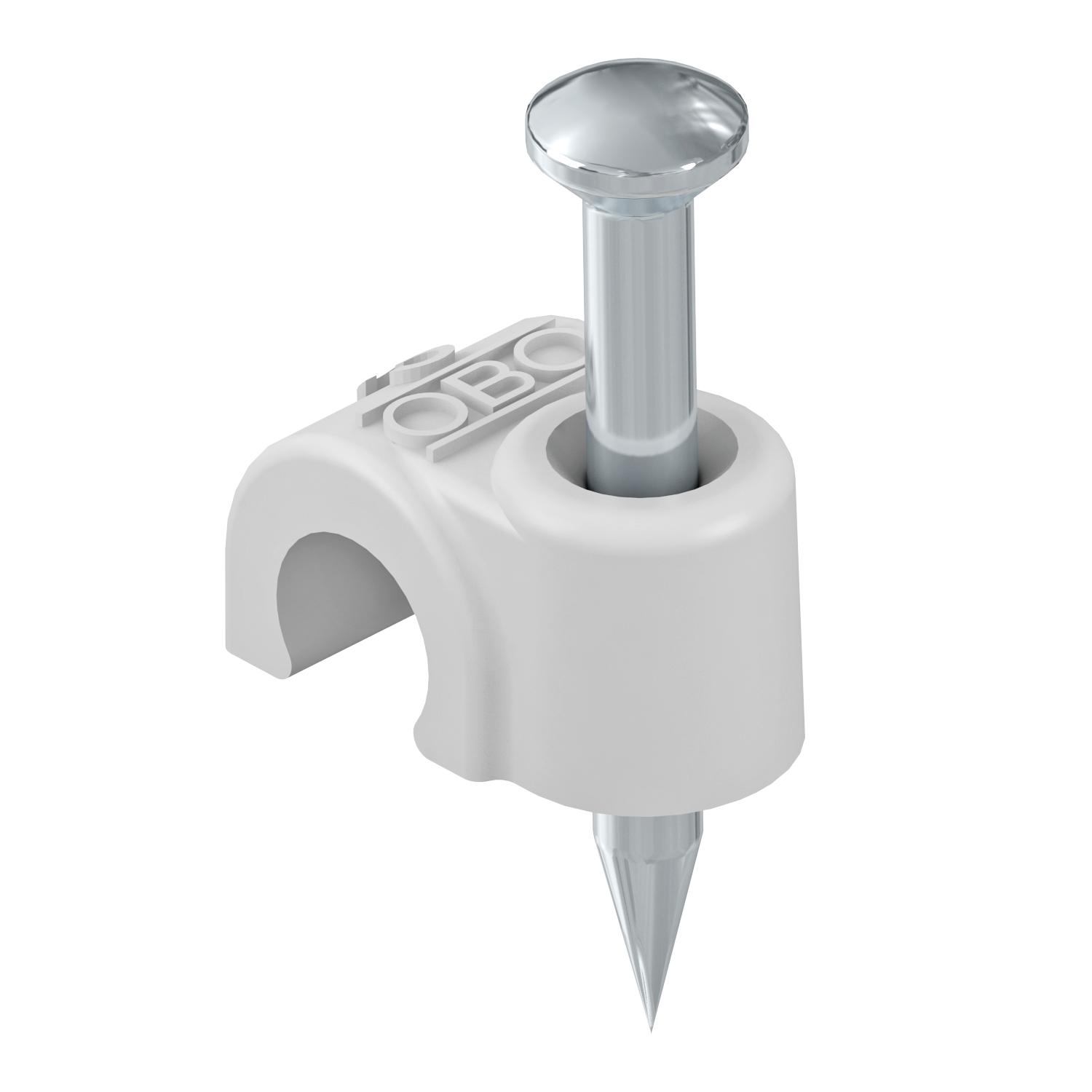

Product descriptionISO nail clip, short design
- Technical data
-
Technical data

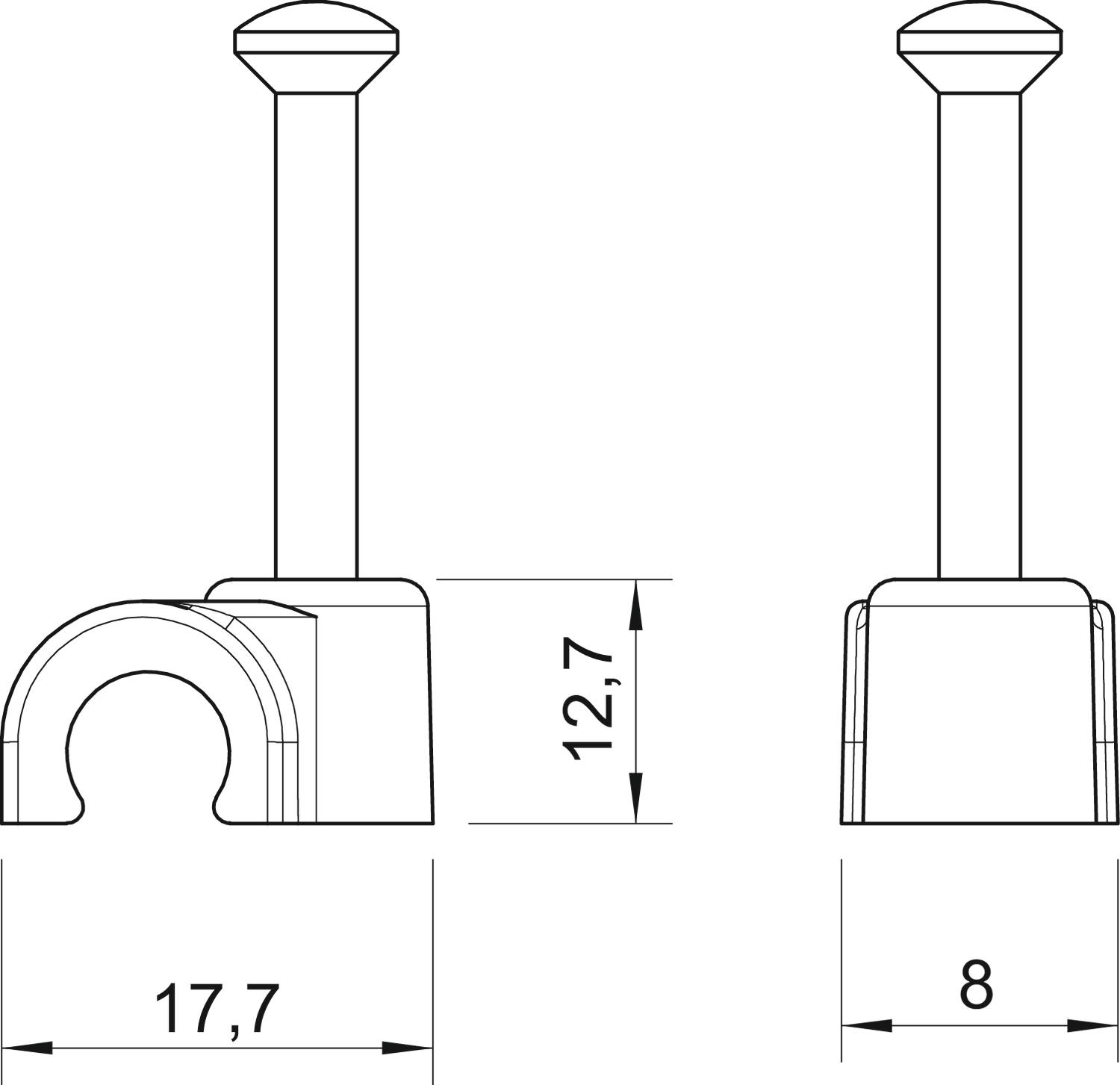

Colour Light grey; RAL 7035 Dimension 10mm, L45 Dimension B 8 mm Dimension H 12,7 mm Dimension L 17,7 mm Double clip no for cable diameter 10 mm For nail diameter 2,0x45 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 45 mm Pipe locking no Shape Round (for round conductor) Transparent no With nail yes - All types
- Downloads
-
Data sheet 2010 45 LGR / 2227827 , 0.19MB , pdfEU declaration of conformity 2010 45 LGR / 2227827 , 0.06MB , pdf
