ISO nail clip 2012, light grey

Item no. 2228033 | EAN 4012195218838

12 mm
Light grey; RAL 7035
Product description
Product description

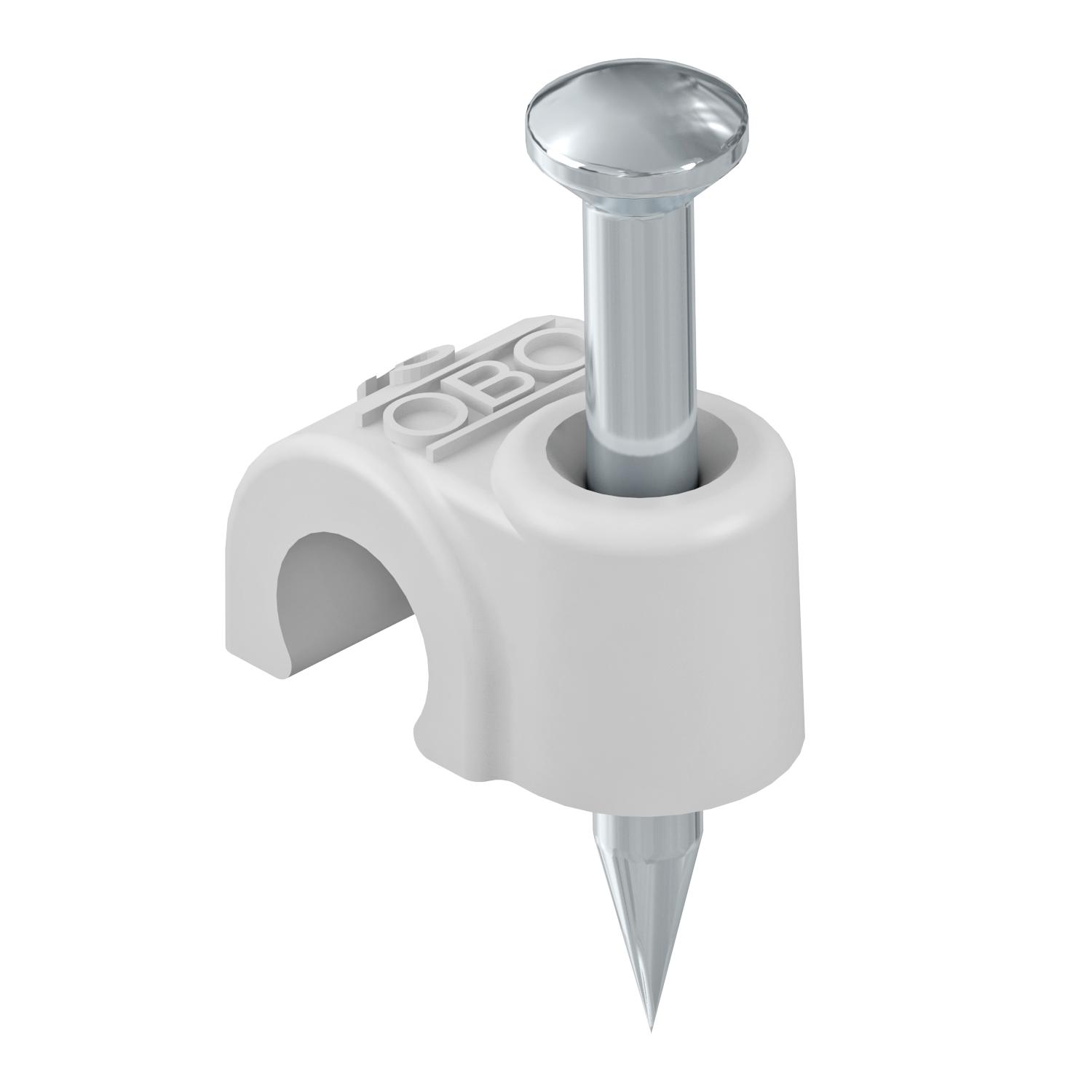

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

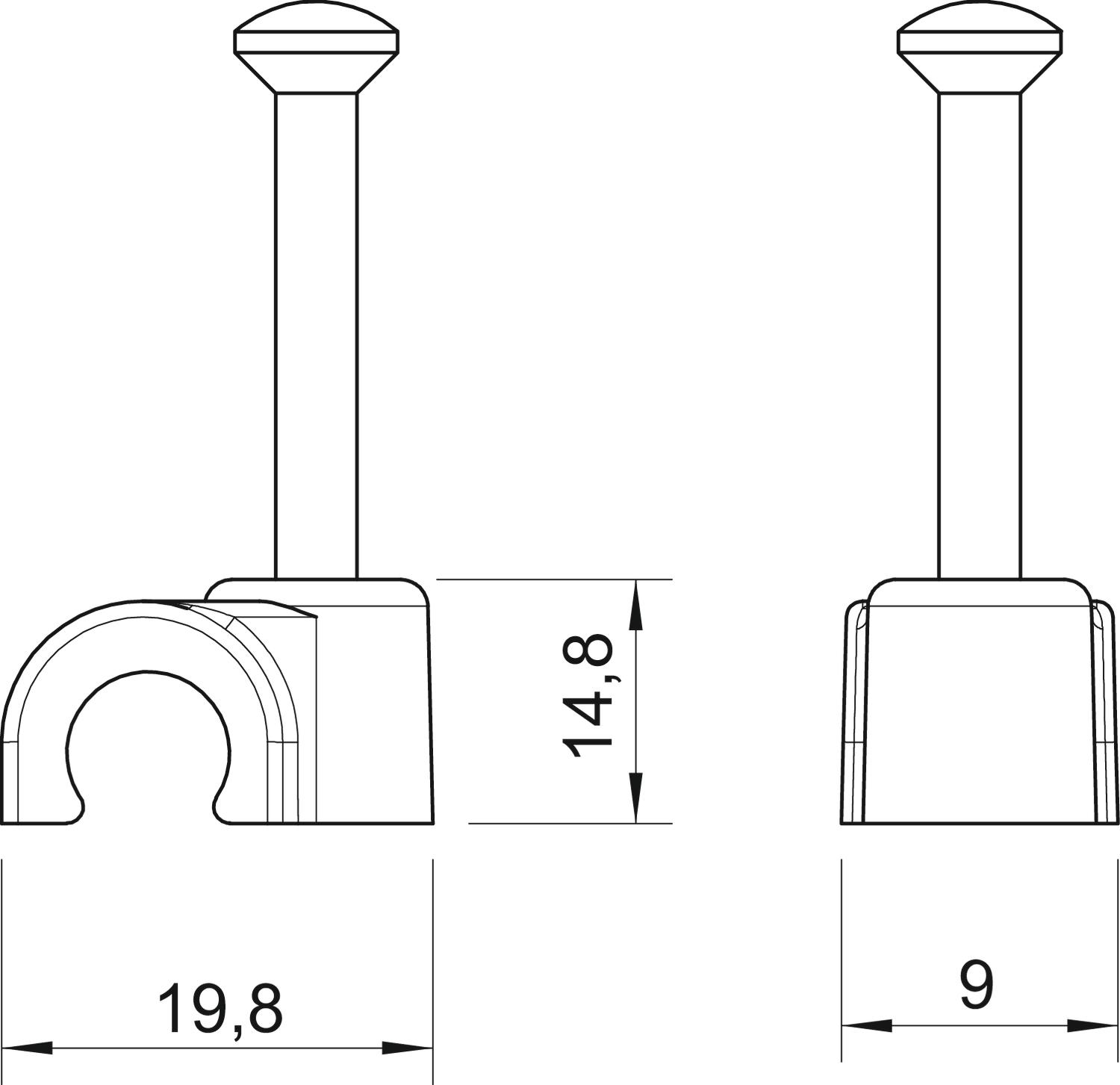

Dimension 12mm, L45
Dimension B 9 mm
Dimension H 14,8 mm
Dimension L 19,8 mm
Double clip no
for cable diameter 12 mm
For nail diameter 2,0x45
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 45 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2012 35 LGR 35 mm 12 mm 2,0x35 Light grey; RAL 7035 2228025
100 piece
2012 45 LGR 45 mm 12 mm 2,0x45 Light grey; RAL 7035 2228033
100 piece
