- Product description
-

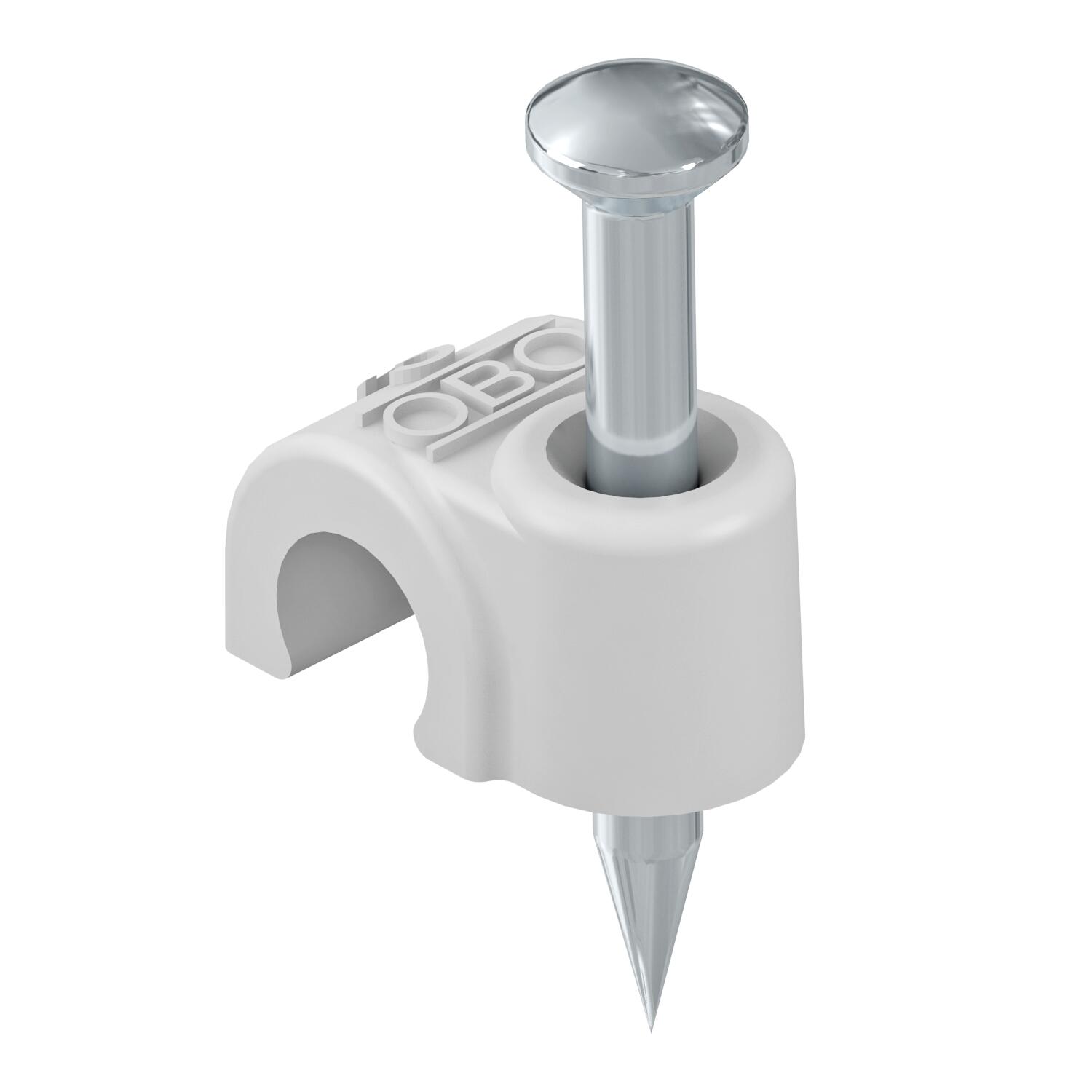

Product descriptionISO nail clip, short design
- Technical data
-
Technical data

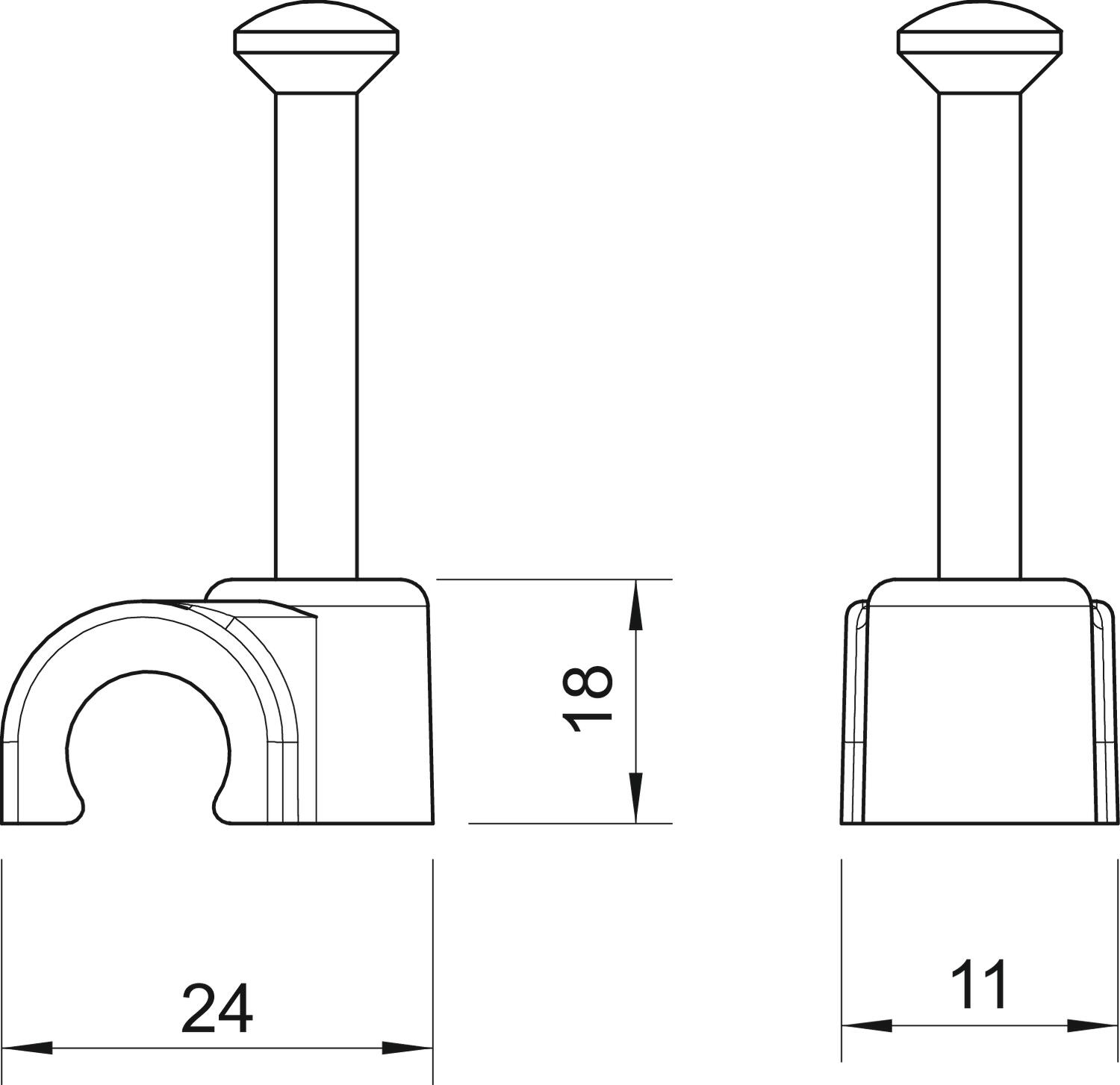

Colour Light grey; RAL 7035 Dimension 14mm, L50 Dimension B 11 mm Dimension H 18 mm Dimension L 24 mm Double clip no for cable diameter 14 mm For nail diameter 2,0x50 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 50 mm Pipe locking no Shape Round (for round conductor) Transparent no With nail yes - All types
- Downloads
-
Data sheet 2014 50 LGR / 2228122 , 0.16MB , pdfEU declaration of conformity 2014 50 LGR / 2228122 , 0.06MB , pdf
