ISO nail clip 2014, white 40 | 14 | 2,0x40 | Pure white; RAL 9010

morepic-1

morepic-2

ISO nail clip 2014, white

Item no. 2226111 | EAN 4012195216490

Item no. / Types

Nail length

for cable diameter	14 mm

For nail diameter

Colour	Pure white; RAL 9010

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	14mm, L40
Dimension B	11 mm
Dimension H	18 mm
Dimension L	24 mm
Double clip	no
for cable diameter	14 mm
For nail diameter	2,0x40

Halogen-free	yes
Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	40 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2014 30 RW	30 mm	14 mm	2,0x30	Pure white; RAL 9010	2226103	piece	50 piece
2014 40 RW	40 mm	14 mm	2,0x40	Pure white; RAL 9010	2226111	piece	50 piece

Downloads

Data sheet 2014 40 RW / 2226111 , 0.16MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2014 40 RW / 2226111 , 0.06MB , pdf

Download

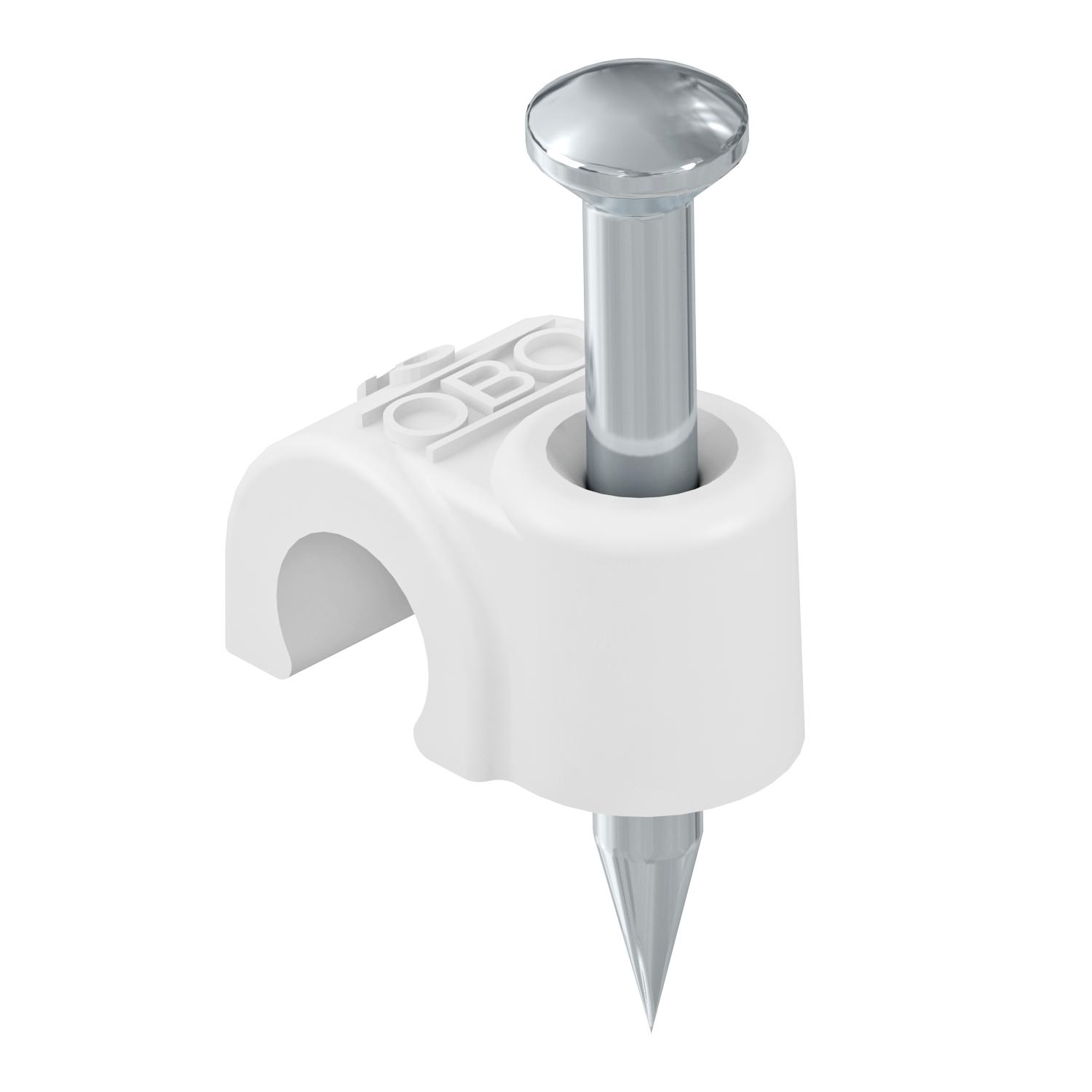

Product graphic 2014 40 RW / 2226111, 39.24 kB, jpg

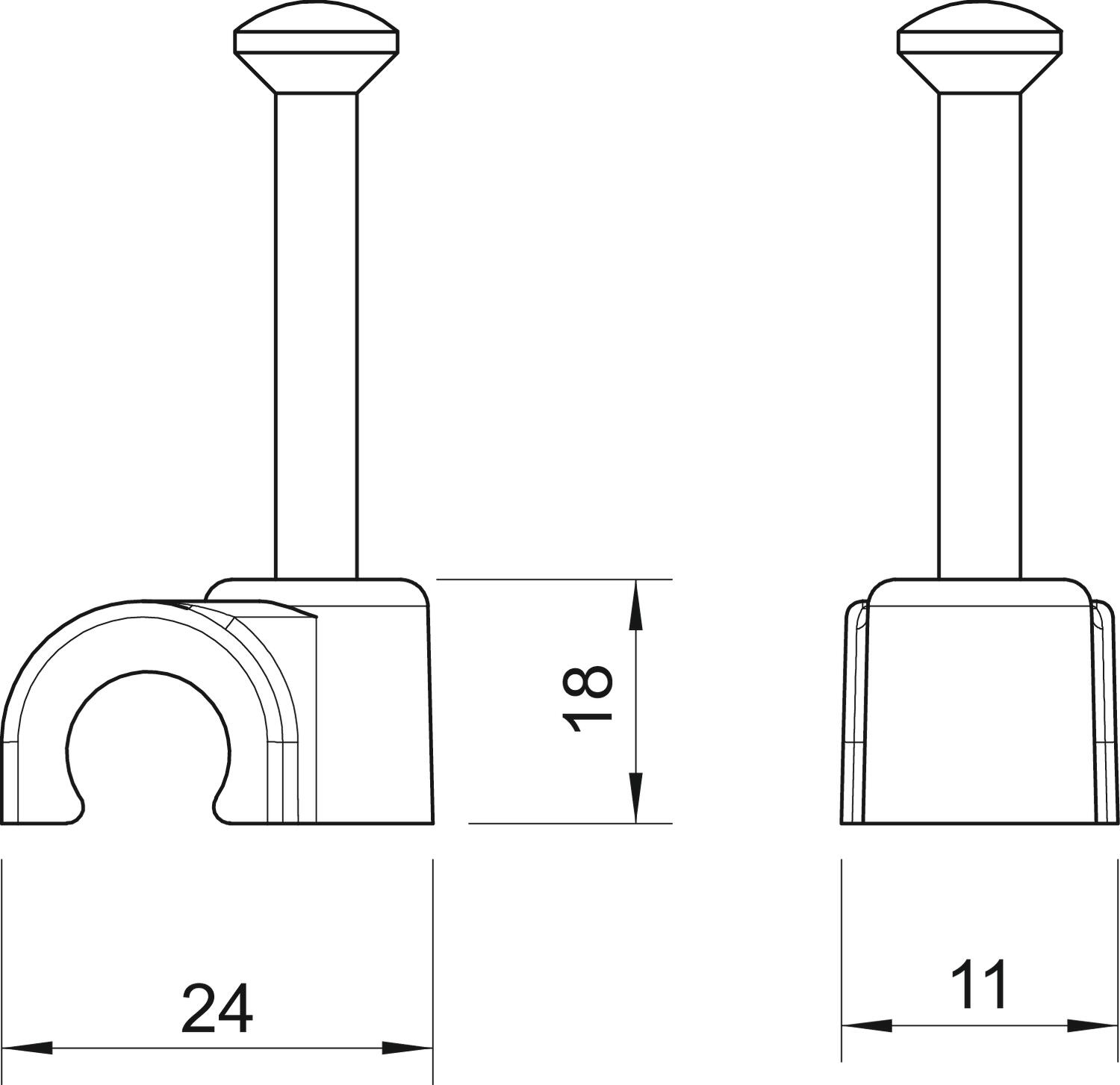

Scale drawing 2014 40 RW / 2226111, 64.86 kB, jpg

2014 40 RW / 2226111
