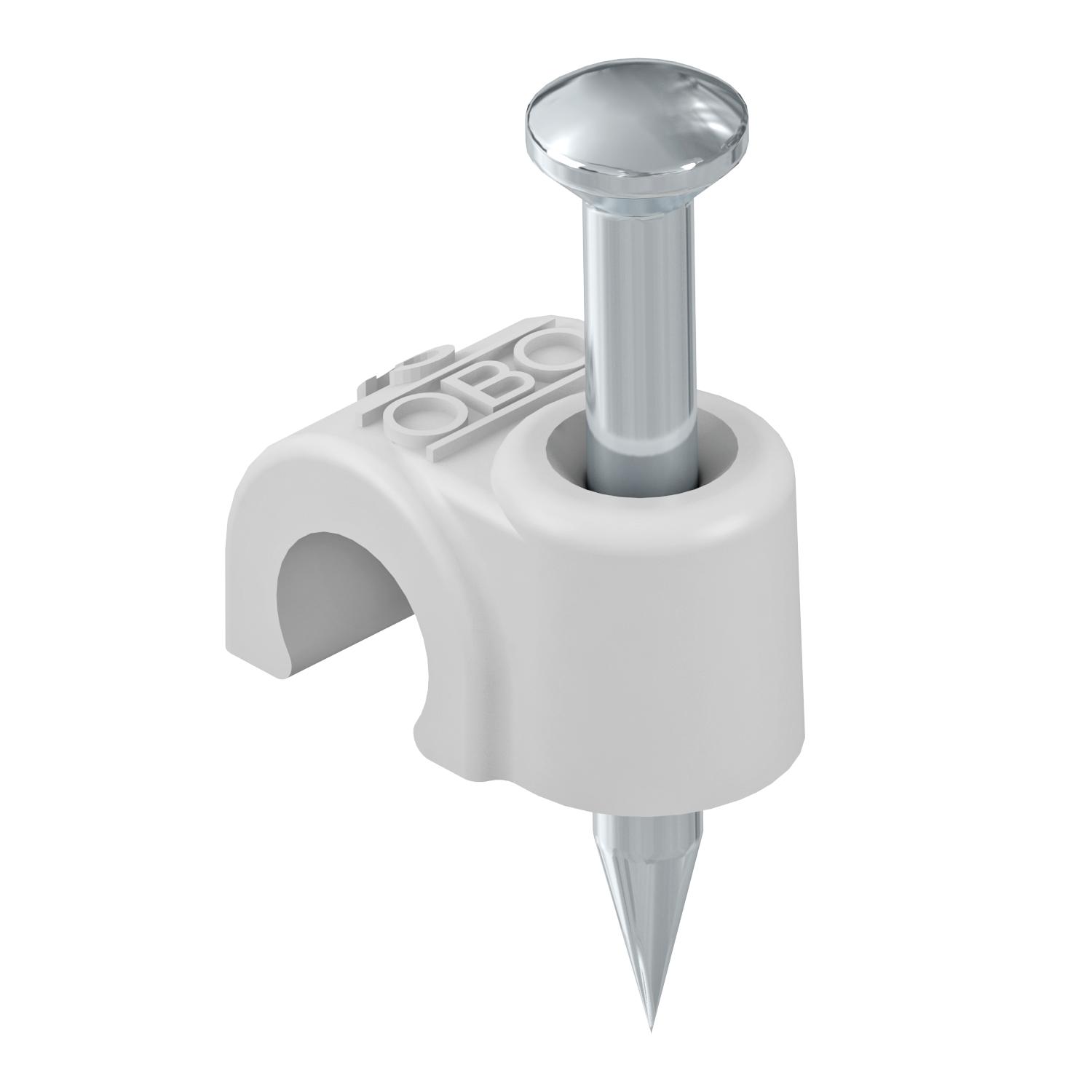

ISO nail clip 2018, light grey

Item no. 2228300 | EAN 4012195219255

18 mm
Light grey; RAL 7035
Product description
Product description
ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

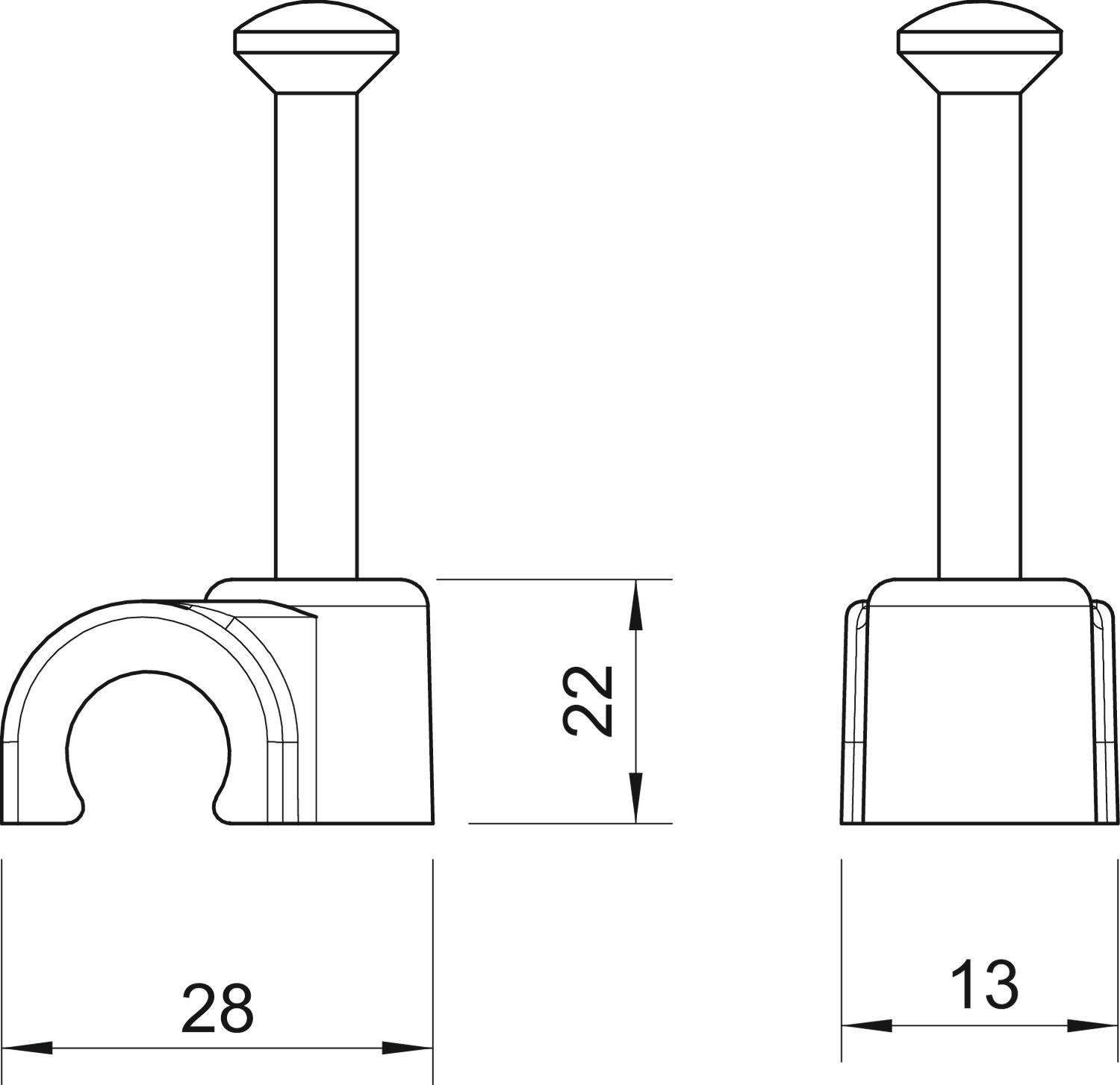

Dimension 18mm, L40
Dimension B 13 mm
Dimension H 22 mm
Dimension L 28 mm
Double clip no
for cable diameter 18 mm
For nail diameter 2,0x40
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 40 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2018 40 LGR 40 mm 18 mm 2,0x40 Light grey; RAL 7035 2228300
25 piece
2018 50 LGR 50 mm 18 mm 2,5x50 Light grey; RAL 7035 2228319
25 piece
