ISO nail clip 2020, light grey

Item no. 2228416 | EAN 4012195219439

20 mm
Light grey; RAL 7035
Product description
Product description

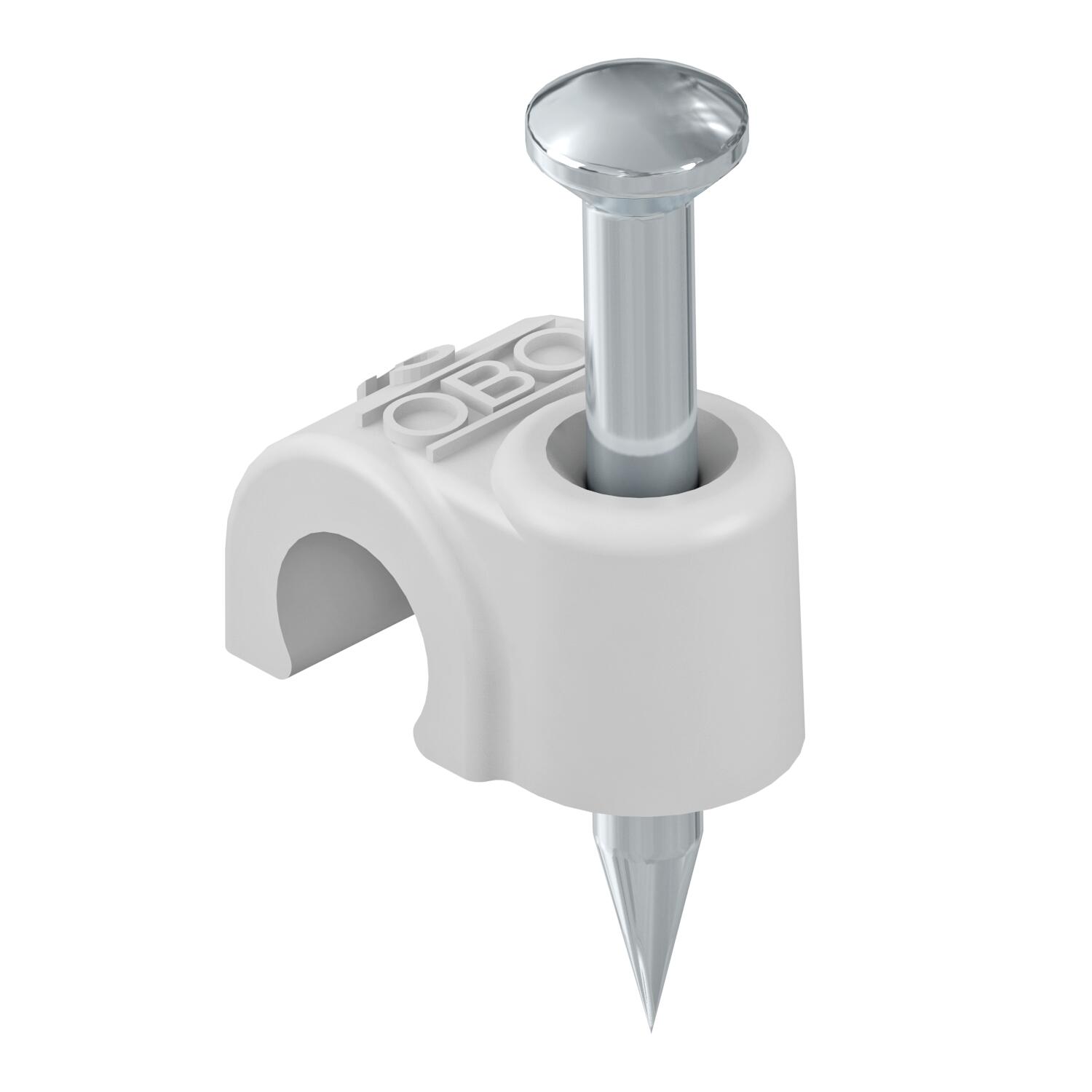

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

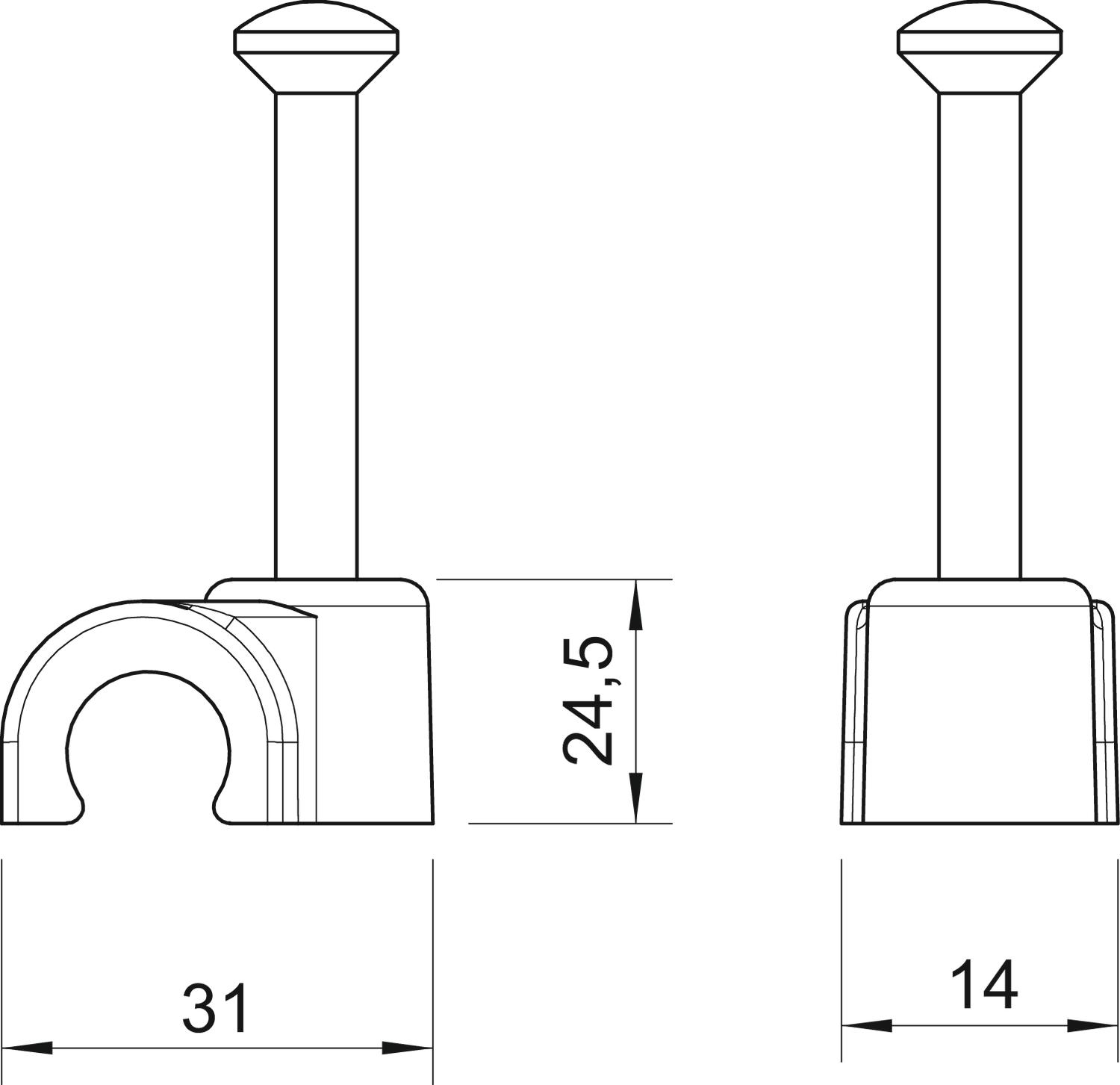

Dimension 20mm, L50
Dimension B 14 mm
Dimension H 24,5 mm
Dimension L 31 mm
Double clip no
for cable diameter 20 mm
For nail diameter 2,0x50
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 50 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2020 40 LGR 40 mm 20 mm 2,0x40 Light grey; RAL 7035 2228408
25 piece
2020 50 LGR 50 mm 20 mm 2,0x50 Light grey; RAL 7035 2228416
25 piece
