- Product description
-

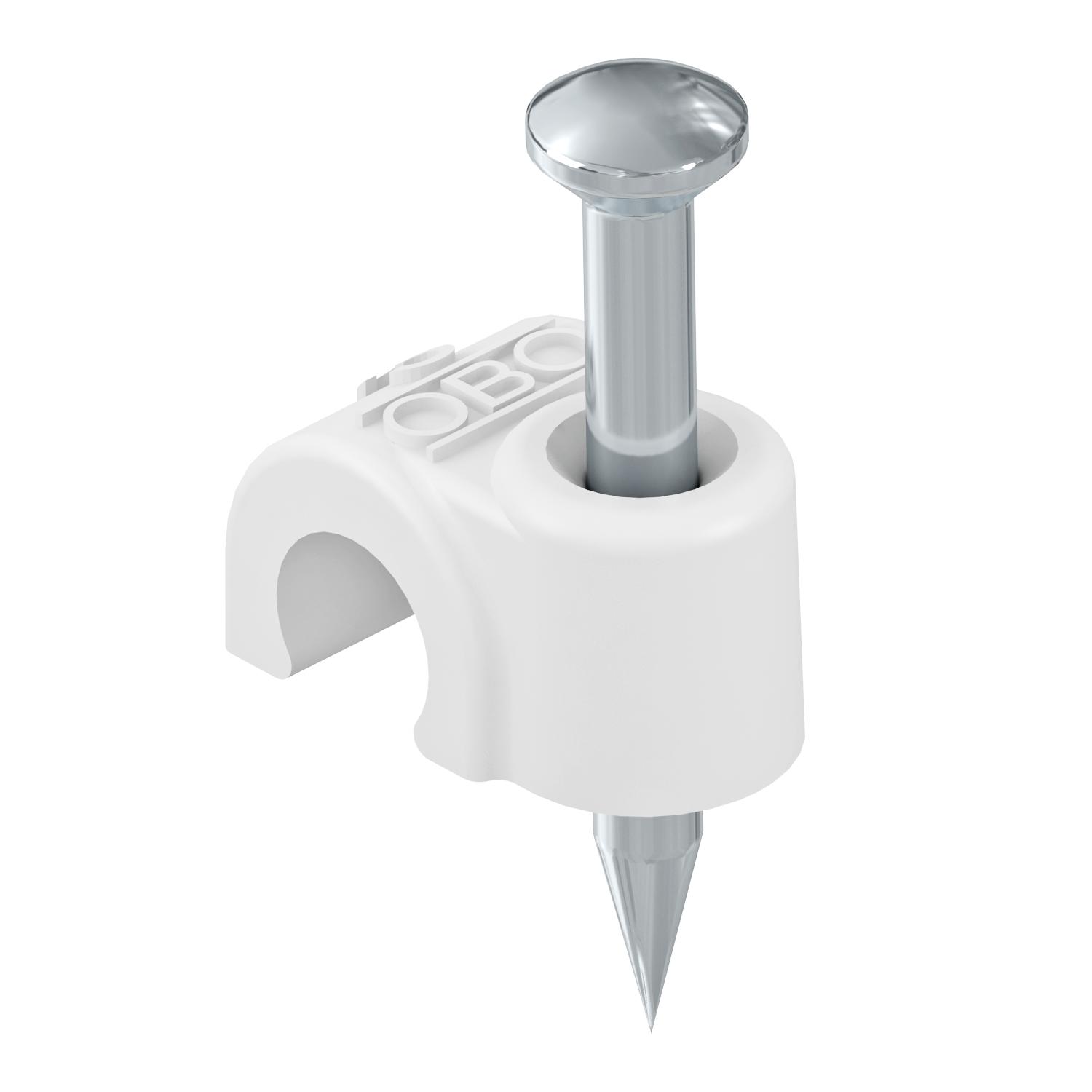

Product descriptionISO nail clip, short design
- Technical data
-
Technical data

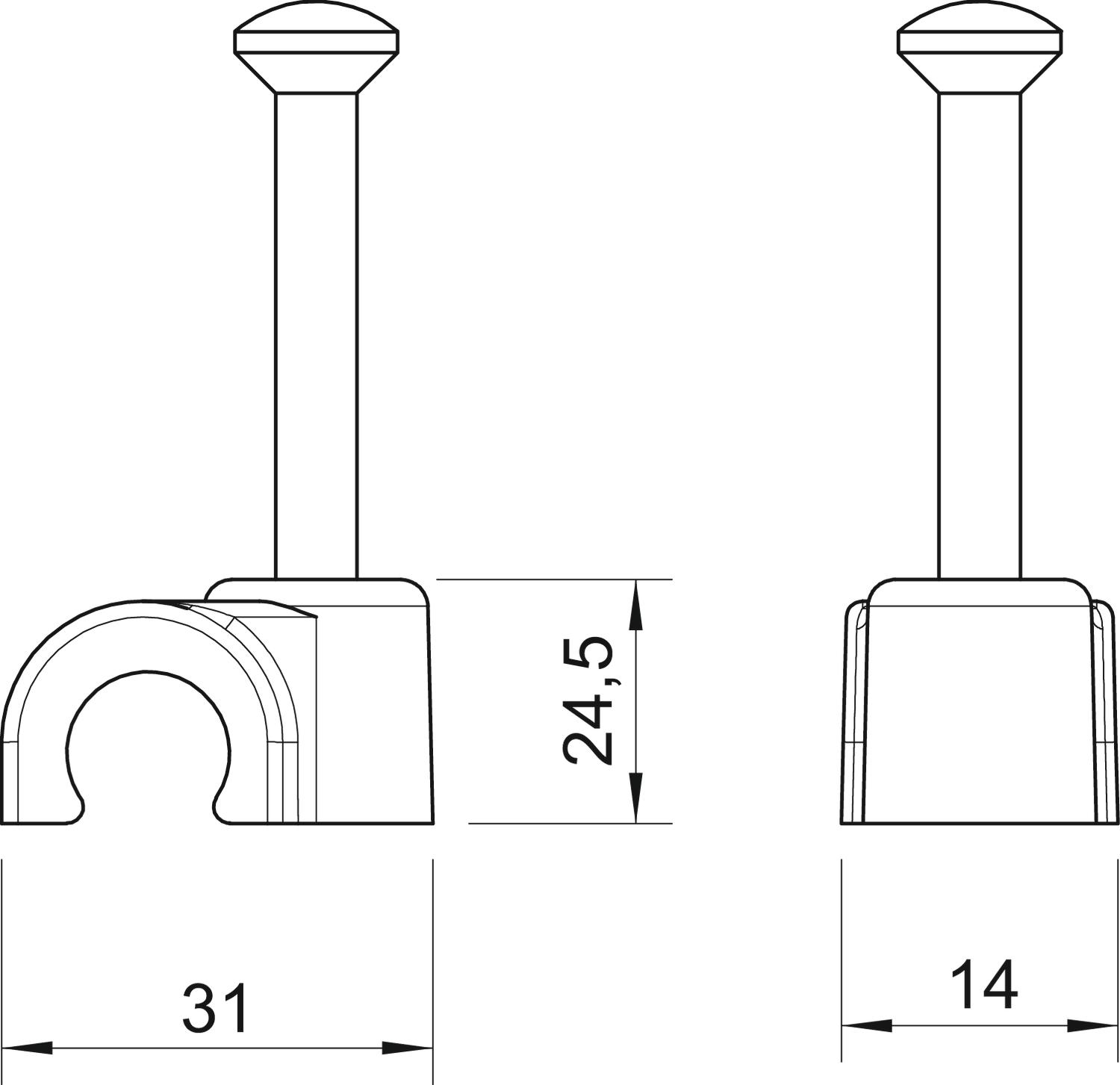

Colour Pure white; RAL 9010 Dimension 20mm, L40 Dimension B 14 mm Dimension H 24,5 mm Dimension L 31 mm Double clip no for cable diameter 20 mm For nail diameter 2,0x40 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 40 mm Pipe locking no Shape Round (for round conductor) With nail yes - All types
- Downloads
-
Data sheet 2020 40 RW / 2226405 , 0.16MB , pdfEU declaration of conformity 2020 40 RW / 2226405 , 0.06MB , pdf
