Joint cover
Item no. 6113032 | EAN 4012196419166
- Product description
-
Product description

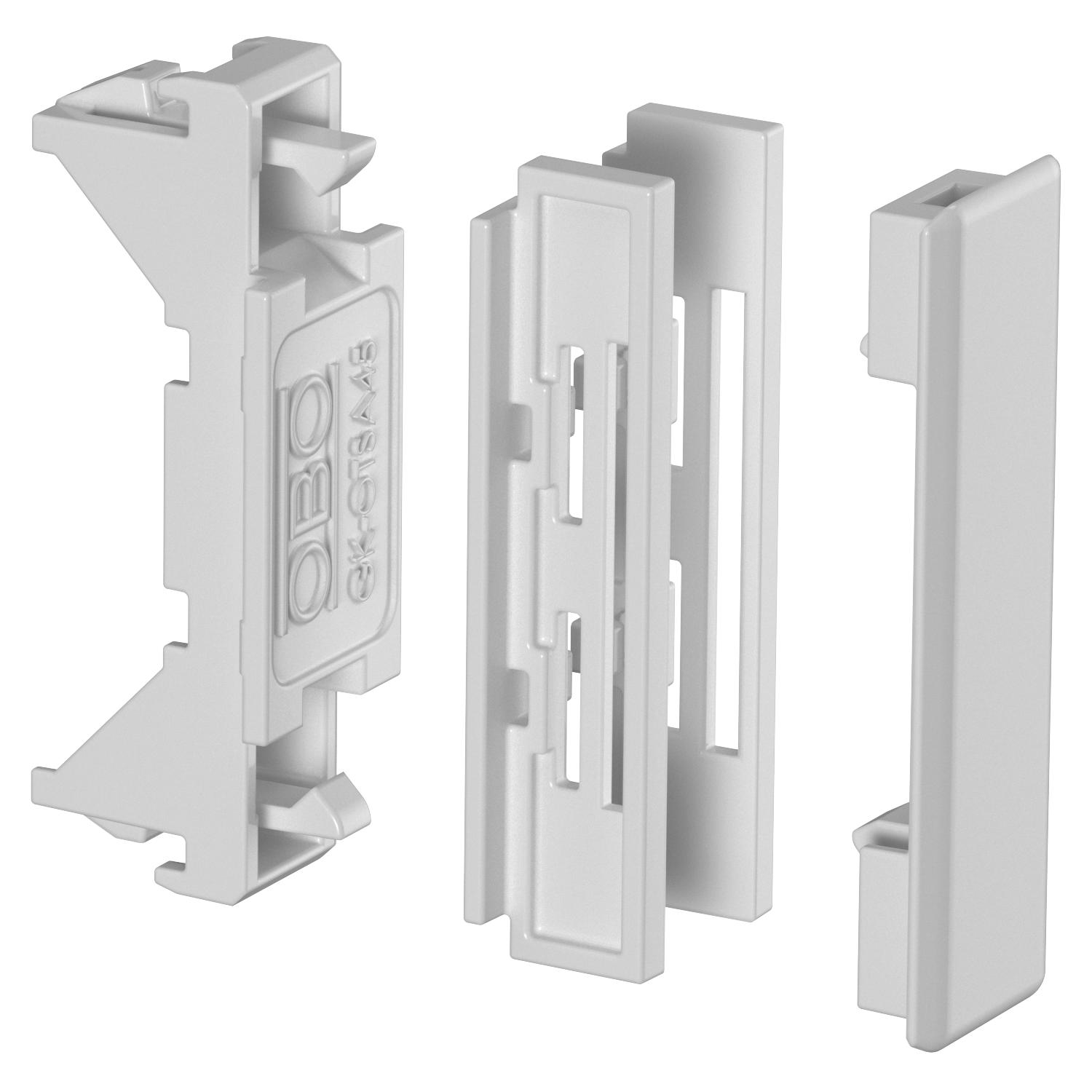

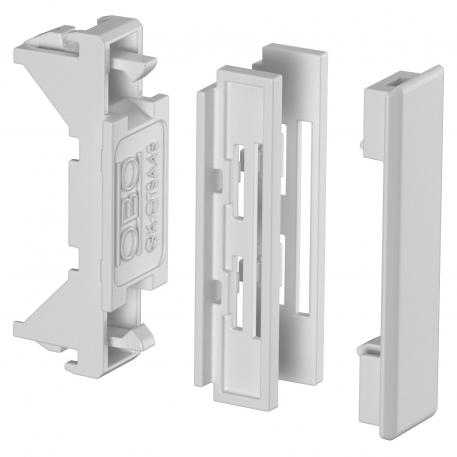

Joint cover for the cover of the Rapid 45-2 device installation trunking to hide cut edges and provide a tidy connection to installed Modul 45® devices.
-
- Technical data
-
Technical data

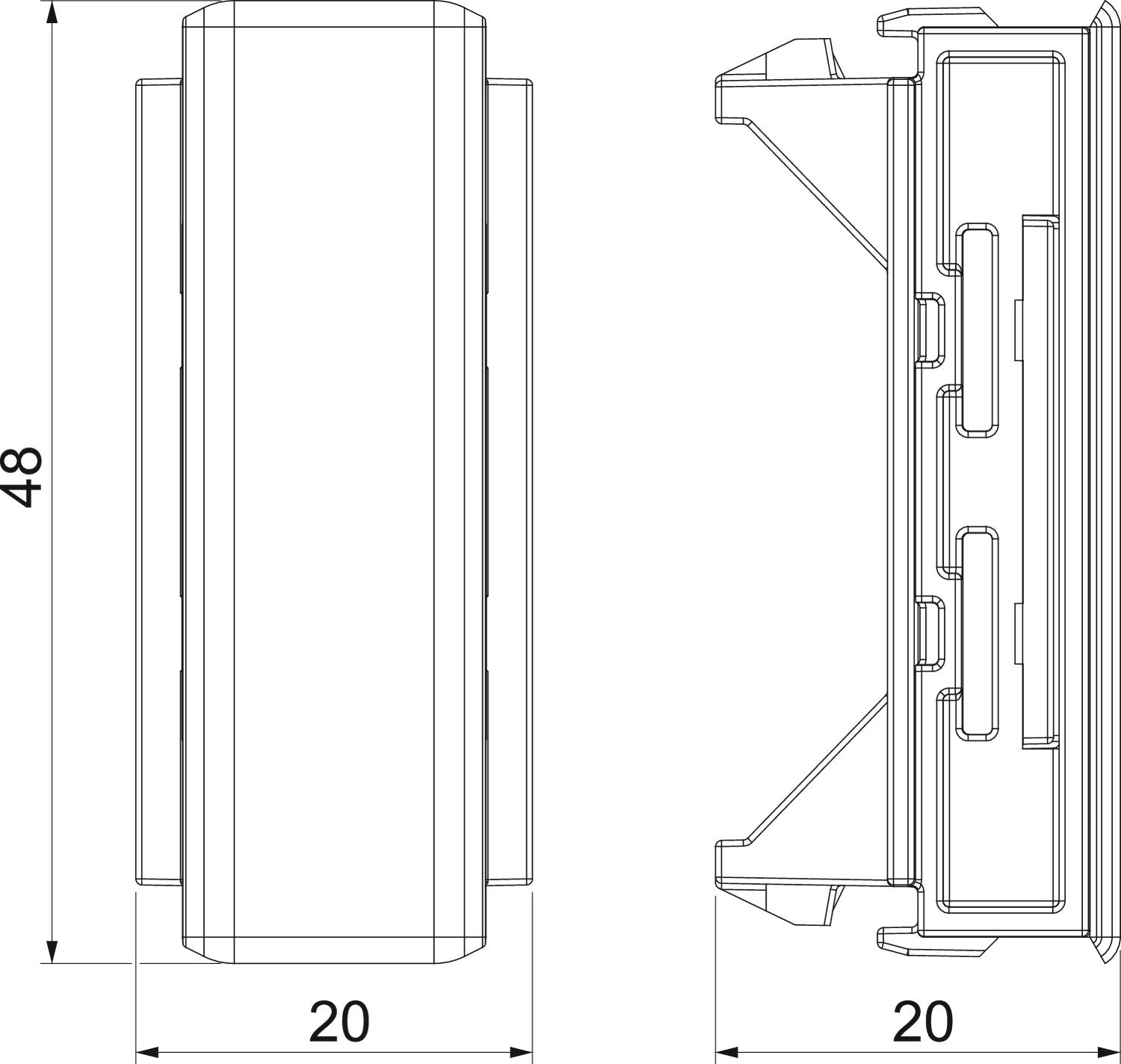

Colour Light grey; RAL 7035 Cover width 45 mm Dimension 48x20x20 Fastening type Lockable for trunking height 53 mm Halogen-free yes Height 20 mm Length 20 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Shape Symmetrical Version for Cover cut lamination Width 48 mm - All types
- Downloads
-
Data sheet GK-OTSA45LGR / 6113032 , 0.40MB , pdfDeclaration of conformity GK-OTSA45LGR / 6113032 , 0.13MB , pdfREACH Declaration of conformity GK-OTSA45LGR / 6113032 , 0.12MB , pdfRoHS Declaration of conformity GK-OTSA45LGR / 6113032 , 0.12MB , pdfMounting instructions Mounting instructions of joint cover for Rapid 45-2 cover GK-OTSA45.. , 0.13MB , pdfNo invitation to tender text is available for this product.
