Knock-in anchor 35 | 6

morepic-1

morepic-2

Knock-in anchor

Item no. 2351056 | EAN 4012195669197

Item no. / Types

Length

Diameter

Product description

Product description

Knock-in anchor: steel, electrogalvanised and transparently passivated.

Technical data

Technical data

Colour	Light grey
Diameter	6 mm
Dimension	6x35mm
Drill hole depth	40 mm
Halogen-free	yes

Length	35 mm
Material	Polyamide
Pull-out force	260 N
Screw system	Pozidrive PZ
With bolts	yes

All types

All types

Types	Length	Diameter	Item no.	Quantity	SSU
910 SD 6X35	35 mm	6 mm	2351056	piece	100 piece
910 SD 6X40	40 mm	6 mm	2351064	piece	100 piece
910 SD 8X55	55 mm	8 mm	2351099	piece	50 piece

Downloads

Data sheet 910 SD 6X35 / 2351056 , 0.14MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 910 SD 6X35 / 2351056 , 0.06MB , pdf

Download

REACH Declaration of conformity 910 SD 6X35 / 2351056 , 0.12MB , pdf

Download

RoHS Declaration of conformity 910 SD 6X35 / 2351056 , 0.12MB , pdf

Download

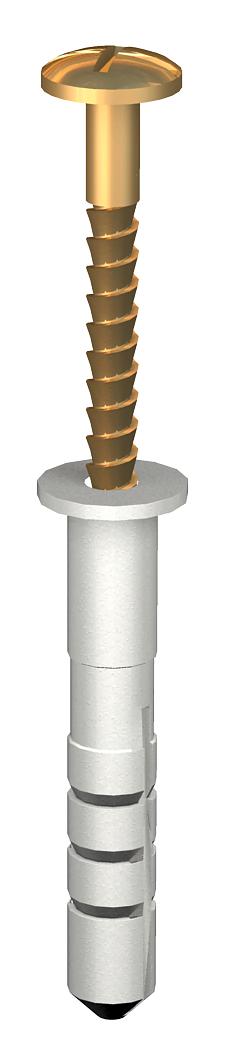

Product graphic 910 SD 6X35 / 2351056, 20.05 kB, jpg

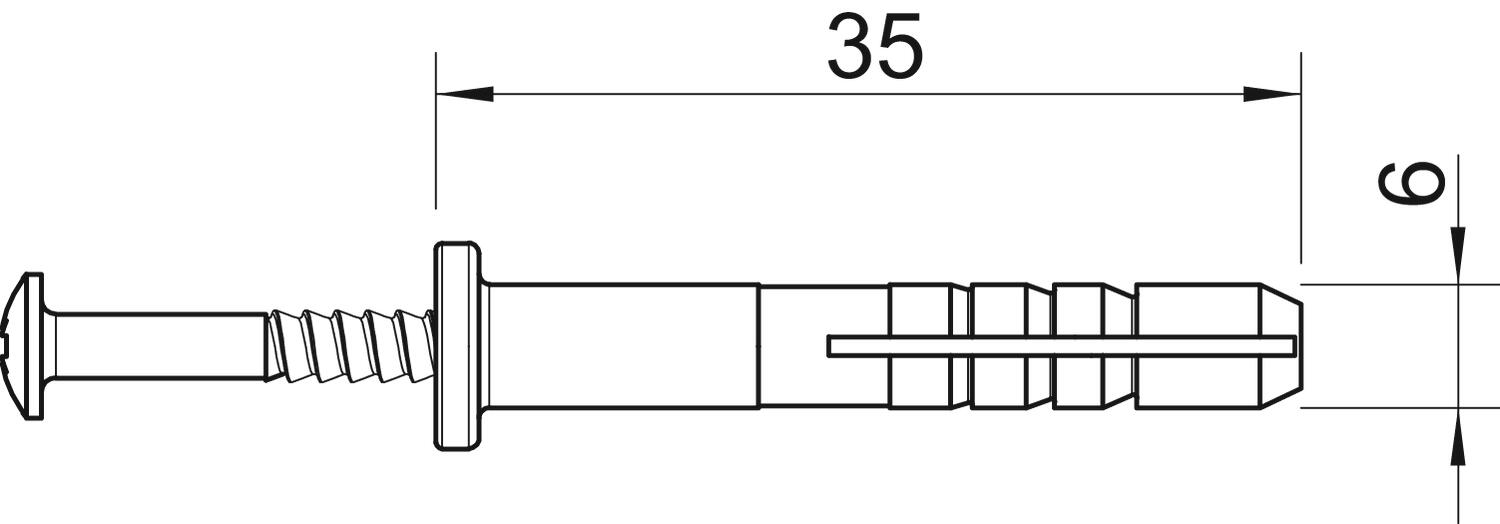

Scale drawing 910 SD 6X35 / 2351056, 33.71 kB, jpg

910 SD 6X35 / 2351056
