Large washer F 22 | 22 | 6.6 | 2 | M6

morepic-1

morepic-2

Large washer F

Item no. 6408702 | EAN 4012196479955

Item no. / Types

Dimension d min.

Dimension d max.

Dimension d

Dimension h

Thread

Product description

Product description

Washer of particularly large outer diameter.

Technical data

Technical data

Diameter	22 mm
Dimension	M6
Dimension d	6,6 mm
Dimension d max.	22 mm
Dimension d min.	22 mm
Dimension h	2 mm
External diameter	22 mm
Faceted	no
Hardened	no

Hole diameter	6,6 mm
Hole shape	Round
Inner diameter	6,6 mm
Material	Steel
Material thickness	2 mm
Plate thickness	0,08 in
Surface	Hot galvanized
Thread	M6

All types

All types

Types	Dimension d min.	Dimension d max.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
DIN440 7 F	22 mm	22 mm	6.6 mm	2 mm	M6	6408702	piece	100 piece
DIN440 9 F	28 mm	28 mm	9 mm	3 mm	M8	6408710	piece	100 piece
DIN440 11 F	34 mm	34 mm	11 mm	3 mm	M10	6408729	piece	100 piece
DIN440 14 F	44 mm	44 mm	13.5 mm	4 mm	M12	6408737	piece	50 piece

Downloads

Data sheet DIN440 7 F / 6408702 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity DIN440 7 F / 6408702 , 0.10MB , pdf

REACH Declaration of conformity DIN440 7 F / 6408702 , 0.12MB , pdf

Download

RoHS Declaration of conformity DIN440 7 F / 6408702 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

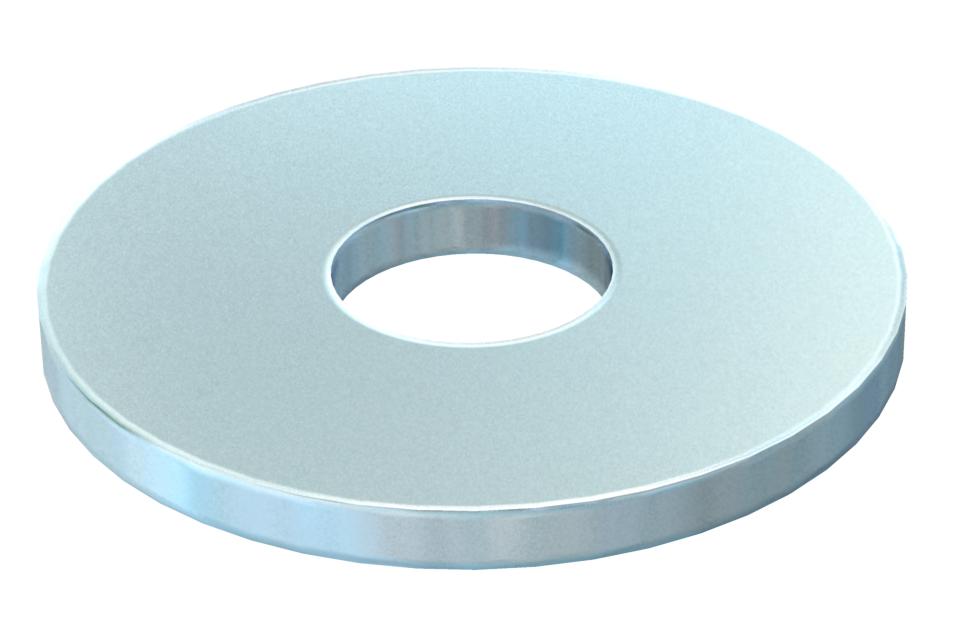

Product graphic DIN440 7 F / 6408702, 32.16 kB, jpg

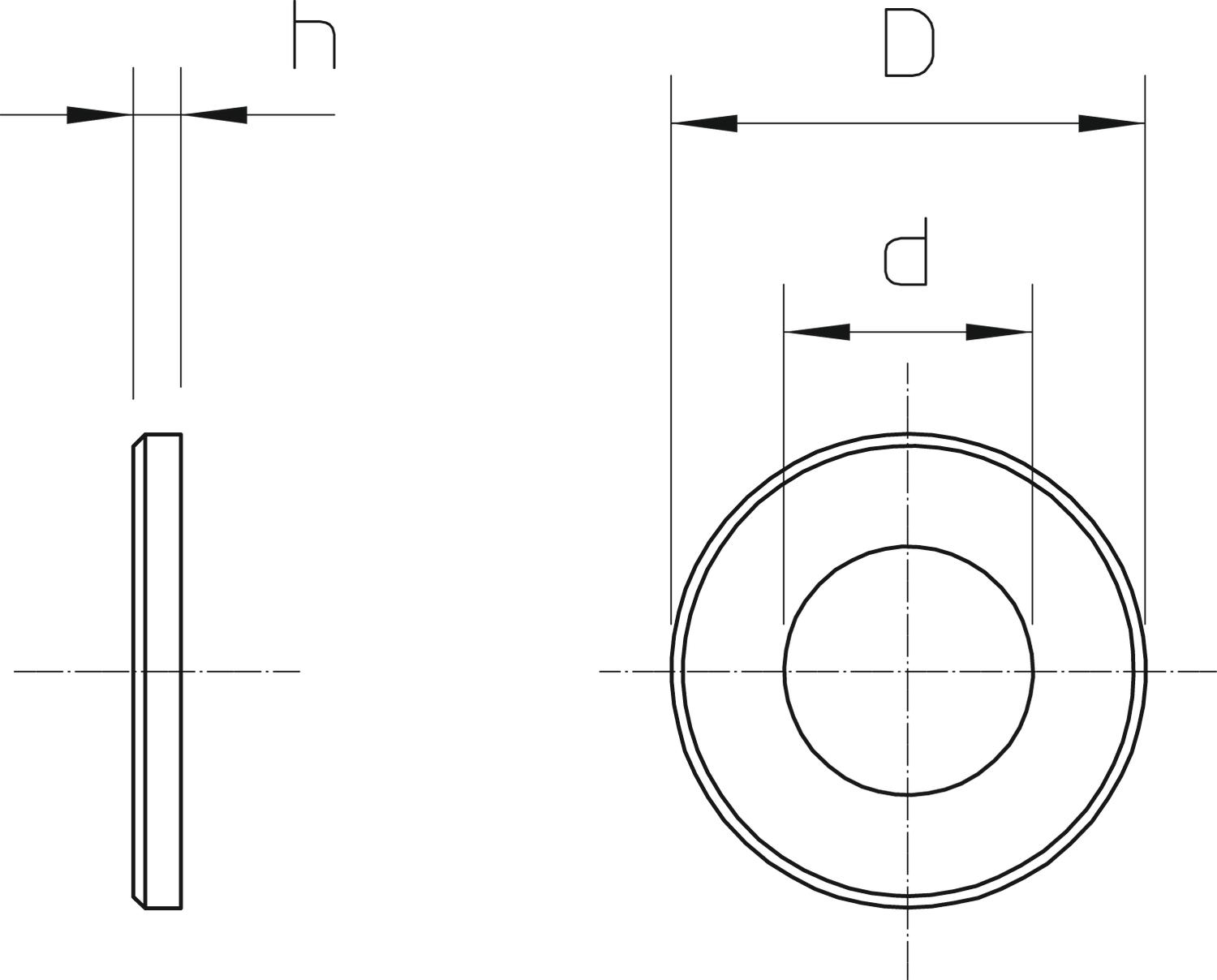

Scale drawing DIN440 7 F / 6408702, 59.05 kB, jpg
