LG 60 cable ladder, 3 m NS FS 3000 | 500 | 1.5 | no | Steel | Strip galvanized

LG 60 cable ladder, 3 m NS FS

Item no. 6208515 | EAN 4012195064008

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

Cable ladder with perforated side rail of side height 60 mm with riveted C profile rungs, open in an upwards direction (NS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Colour	zinc
CO₂ Footprint (GWP) Cradle-to-Gate	7,421 kg CO₂e / 1 Meter
Dimension	60x500x3000
Dimension	60x500x3000
Fastening of rung	Blind riveted
Height	60 mm
Length	3000 ft
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rustproof steel, pickled	no
Side perforation	yes

Side rail version	Flat profile
Support spacing 1.5 m	3,1 kN/m
Support spacing 2.0 m	2 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	1 kN/m
Support spacing 3.5 m	0,6 kN/m
Support spacing 4.0 m	0,4 kN/m
Surface	Strip galvanized
Usable cross-section	248 cm²
Usable cross-section	24800 mm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	500 mm

Technical data

Load diagram, cable ladder, type LG 60 NS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 NS 3 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6208506	m	3 m
LG 630 NS 3 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6208509	m	3 m
LG 640 NS 3 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6208512	m	3 m
LG 650 NS 3 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6208515	m	3 m
LG 660 NS 3 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6208518	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FS	DRL 500 FS	6052509	m	3 m

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Clamping piece for separating retainer fastening A2	KS KL A2	6062284	piece	30 piece
Straight connector FS	LVG 60 FS	6208840	piece	10 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair

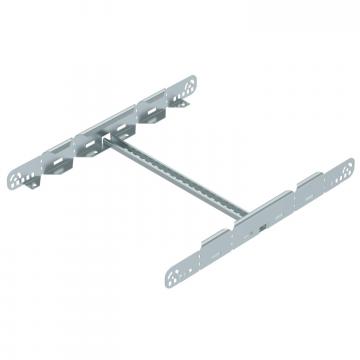

Multifunctional connector FS	LMFV 650 FS	6225716	piece	1 piece
