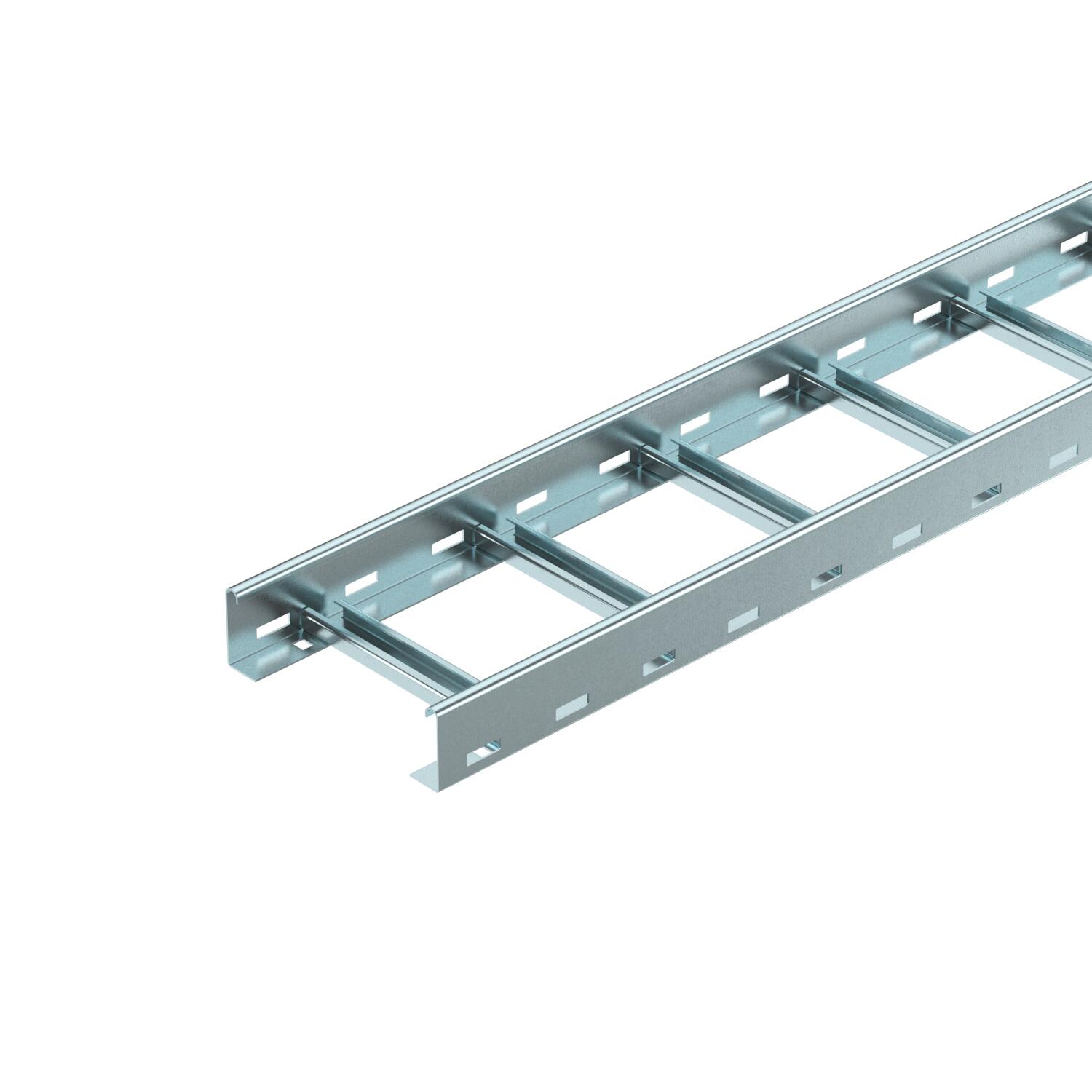

LG 60 cable ladder, 3 m VSF FS
Item no. 6207518 | EAN 4012196748747
- Product description
-
Product descriptionCable ladder for horizontal routing of cables. Can be used in the widths 200–400 mm as a standard support structure for the maintenance of electrical functionality according to DIN 4102 Part 12. Maintenance of electrical functionality classes E30 to E90. With riveted C profile rung, open in an upward direction.
-
- Technical data
-
Technical data

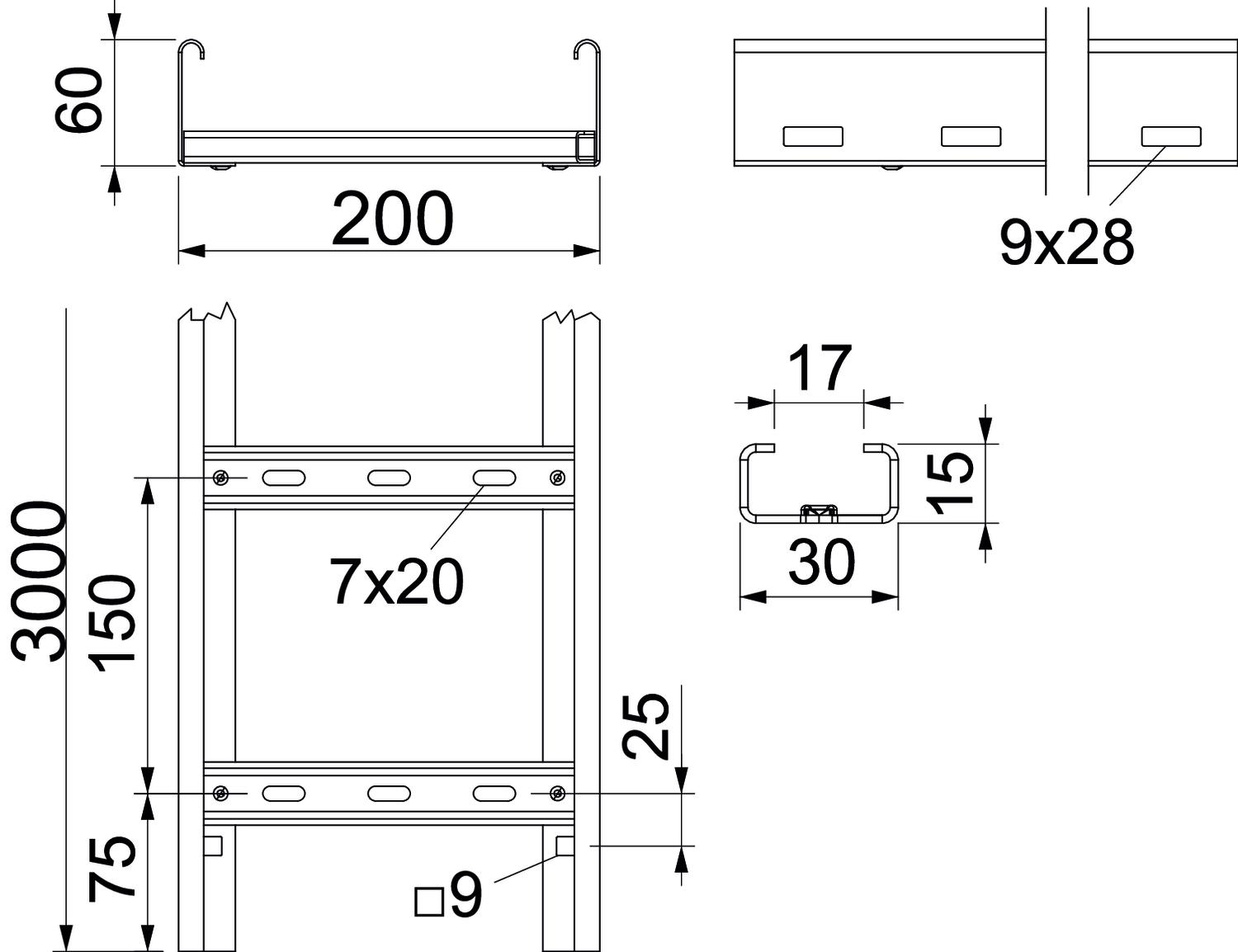

CO₂ Footprint (GWP) Cradle-to-Gate 7,853 kg CO₂e / 1 Meter Dimension 60x200x3000 Dimension B 200 mm Fastening of rung Blind riveted Fire protection Maintenance of electrical function of standard support structure Height 60 mm Length 3000 mm Length 3000 ft Maintain electrical functions yes Material Steel Rail thickness 1,5 mm Rung distance 150 mm Rung slot dimension 17,00 Rustproof steel, pickled no Side perforation yes Side rail version Profile (open) Surface Strip galvanized Usable cross-section 9800 mm² Version of the rungs Profile perforated Wide-span version no Width 200 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Protective cap 60
SKH 60 OR 6222537 40 Pair Mounting accessories
Products Types Item no. Quantity SSU

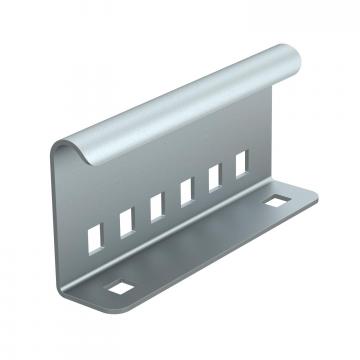

External connector
AVL 60 FS 6208770 10 piece
Drop-out plate FT
LAB 20 FT 6220436 1 piece - Downloads
-
