LG 60 cable ladder, 6 m VSF
Item no. 6207505 | EAN 4012195299646
- Product description
-

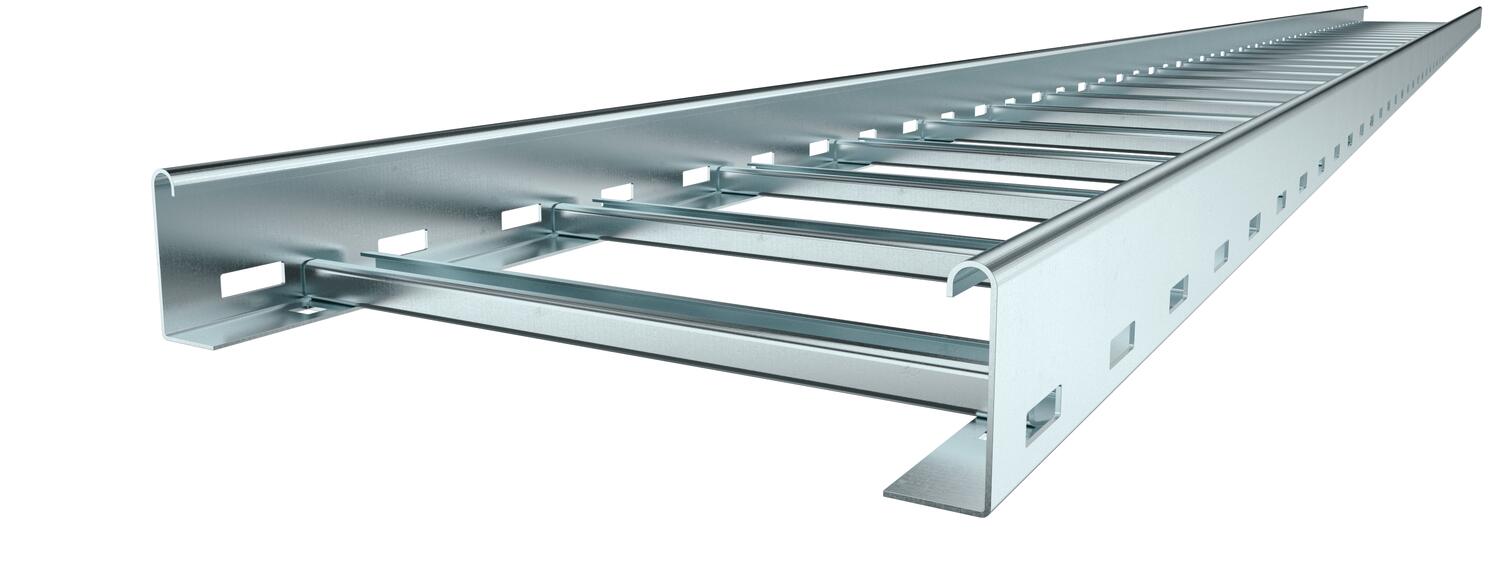

Product descriptionCable ladder for the horizontal routing of cables. Can be used as a standard support structure for the maintenance of electrical functionality according to DIN 4102 Part 12. Maintenance of electrical function classes E30 to E90. With riveted C profile rung, open in an upward direction.
-
- Technical data
-
Technical data

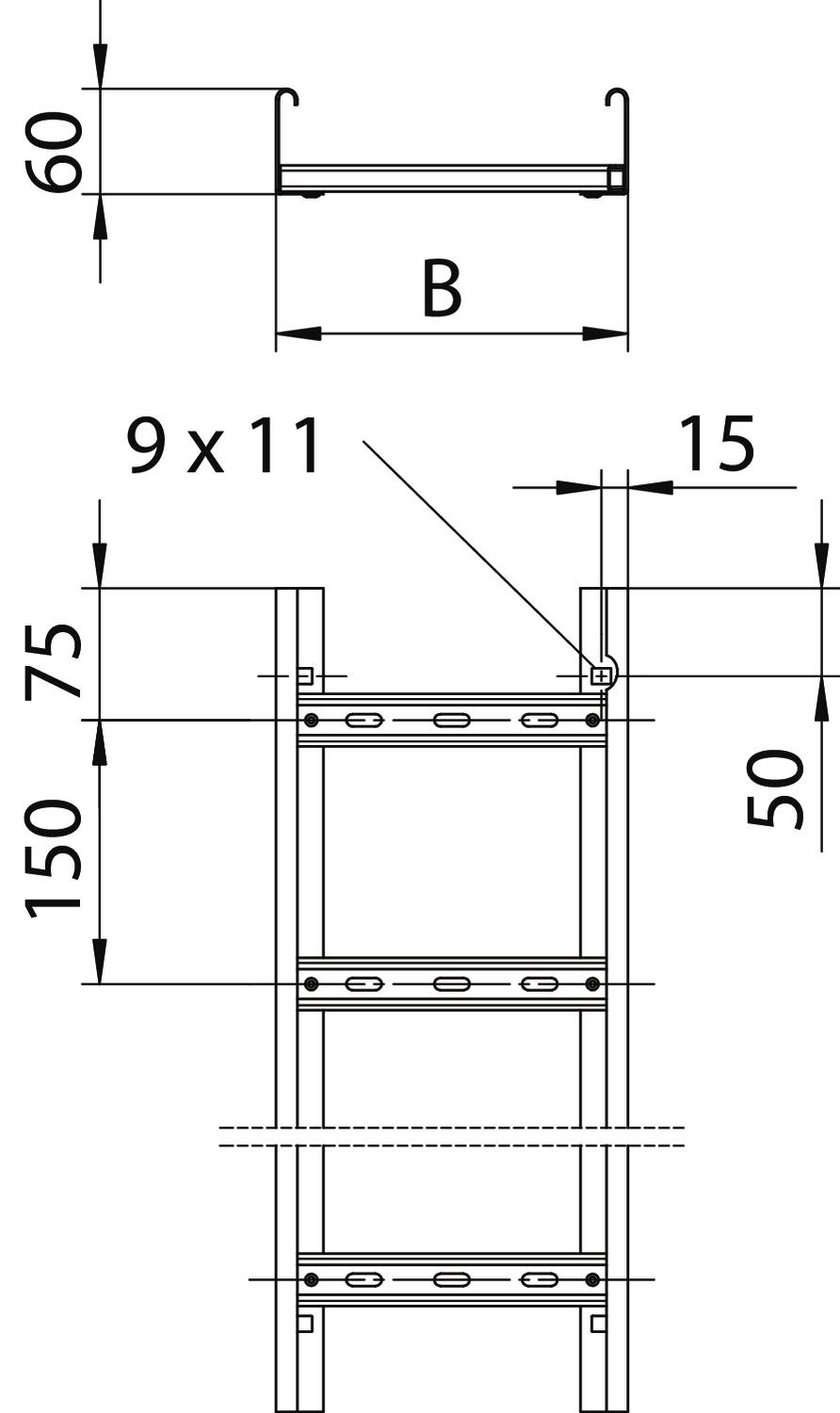

CO₂ Footprint (GWP) Cradle-to-Gate 8,99 kg CO₂e / 1 Meter Dimension 60x300x6000 Dimension B 300 mm Fastening of rung Blind riveted Fire protection Maintenance of electrical function of standard support structure Height 60 mm Length 6000 mm Length 6000 ft Maintain electrical functions yes Material Steel Rail thickness 1,5 mm Rung distance 150 mm Rung slot dimension 17,00 Rustproof steel, pickled no Side perforation yes Side rail version Profile (open) Surface Strip galvanized Usable cross-section 148 cm² Usable cross-section 14800 mm² Version of the rungs Profile perforated Wide-span version no Width 300 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Protective cap 60
SKH 60 OR 6222537 40 Pair Mounting accessories
Products Types Item no. Quantity SSU
External connector
AVL 60 FS 6208770 10 piece
Drop-out plate FT
LAB 30 FT 6220444 1 piece - Downloads
-
Data sheet LG 630 VSF 6 FS / 6207505 , 0.24MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity LG 630 VSF 6 FS / 6207505 , 0.11MB , pdfREACH Declaration of conformity LG 630 VSF 6 FS / 6207505 , 0.12MB , pdfRoHS Declaration of conformity LG 630 VSF 6 FS / 6207505 , 0.13MB , pdfNo invitation to tender text is available for this product.
