Lid butt support for trunking width 400, 500 and 600 mm 600 | 600
morepic-1 morepic-2

Lid butt support for trunking width 400, 500 and 600 mm

Item no. 7424364 | EAN 4012195244110

Product description
Product description
For underlaying and sealing joints of nominal trunking widths of 400, 500 or 600. With installation option for central, height-adjustable support.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes
Centre support no

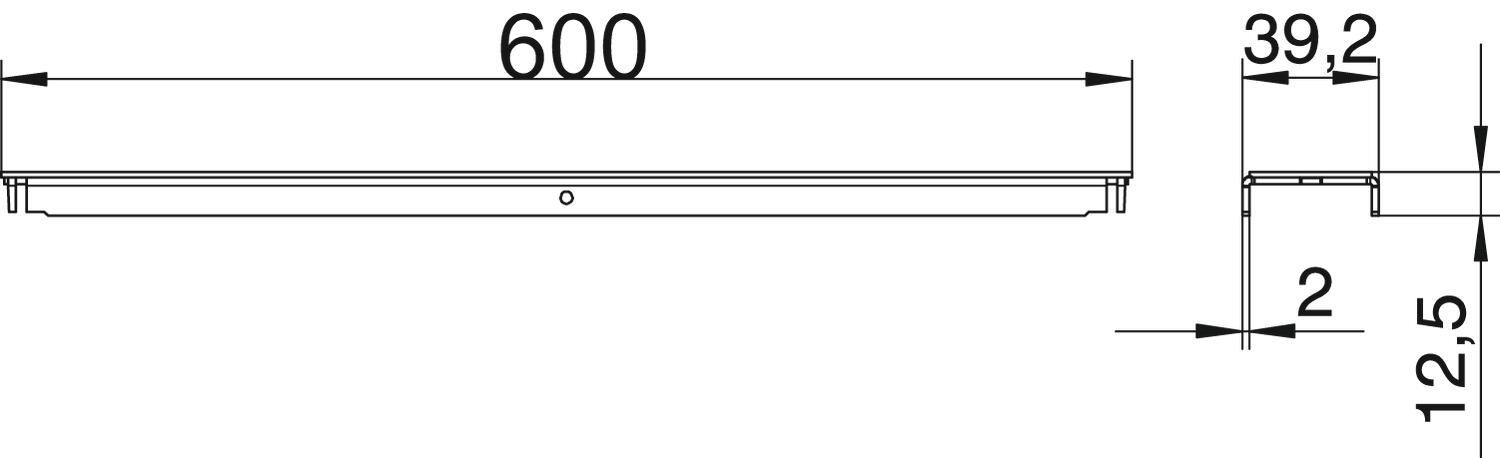

Dimension A 600 mm
Material Steel
Minimum screed height 40
Spare part no
Surface Strip galvanized
Width 600 mm
All types

All types

Types Width Dimension A Item no. Quantity SSU
DSU2 400 400 mm 400 mm 7424360
1 piece
DSU2 500 500 mm 500 mm 7424362
1 piece
DSU2 600 600 mm 600 mm 7424364
1 piece
Downloads

Download

Download

EU declaration of conformity DSU2 600 / 7424364 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
