- Product description
-

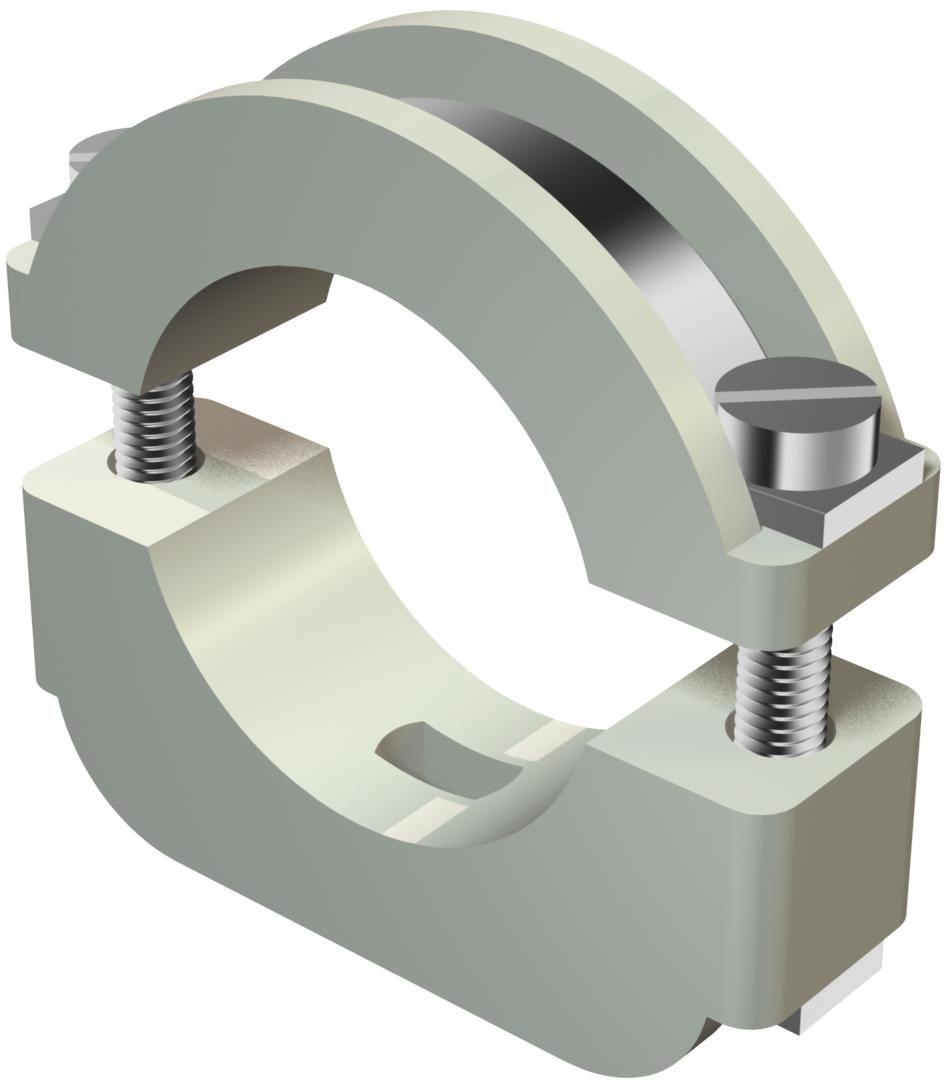

Product descriptionLightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
3015 with 4.5 mm slot.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.
- Technical data
-
Technical data

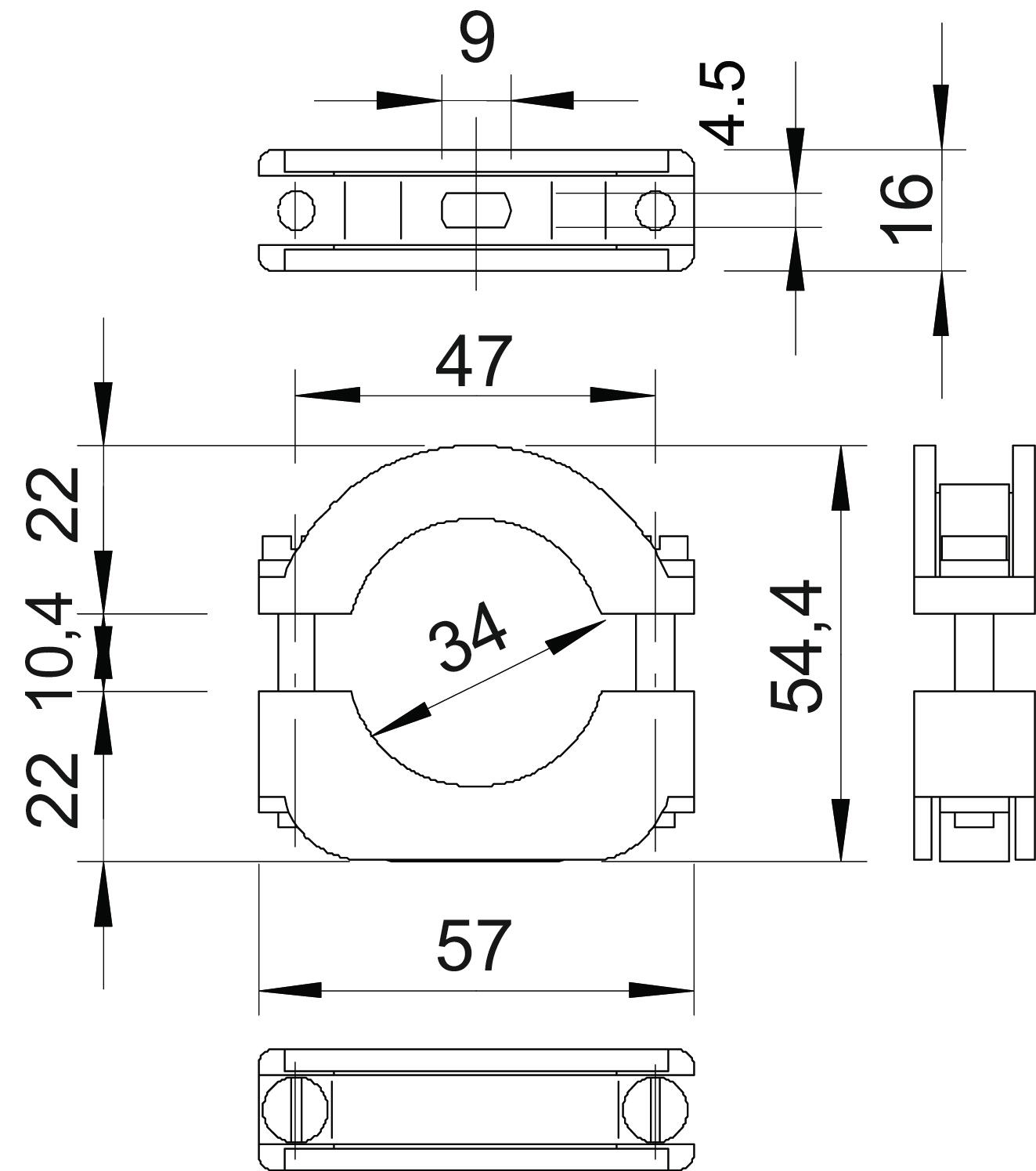

Bolt M5 x 35 Clamping range D, max. 34 mm Clamping range D, min. 24 mm Colour Light grey; RAL 7035 Dimension 24-34mm Dimension A 57 mm Dimension B 47 mm Dimension b 16 mm Dimension D 34 mm Dimension H 54,4 mm Dimension Ho (mm) 22 Dimension Hu (mm) 22 Dimension L 9 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 3015 34 LGR / 2157349 , 0.27MB , pdfEU declaration of conformity 3015 34 LGR / 2157349 , 0.13MB , pdfREACH Declaration of conformity 3015 34 LGR / 2157349 , 0.13MB , pdfRoHS Declaration of conformity 3015 34 LGR / 2157349 , 0.13MB , pdf
