- Product description
-

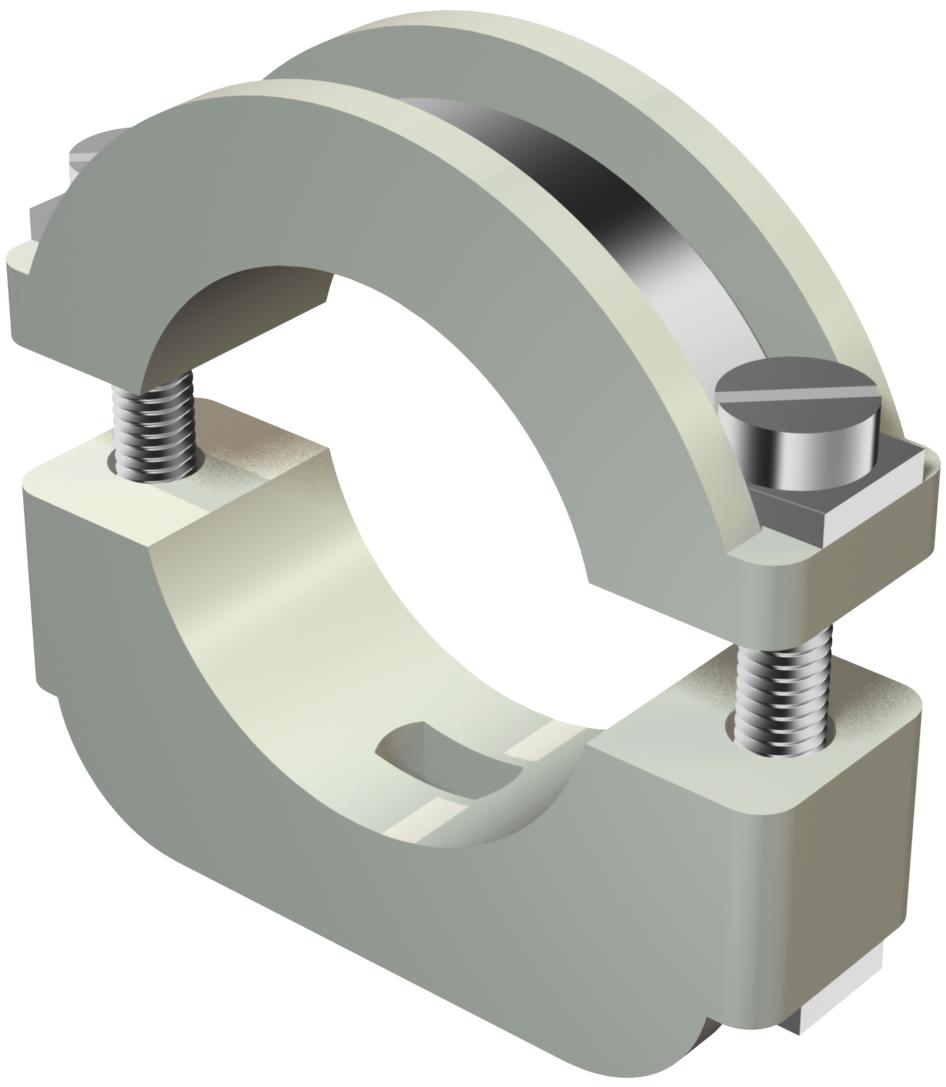

Product descriptionLightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
3015 with 4.5 mm slot.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.
- Technical data
-
Technical data

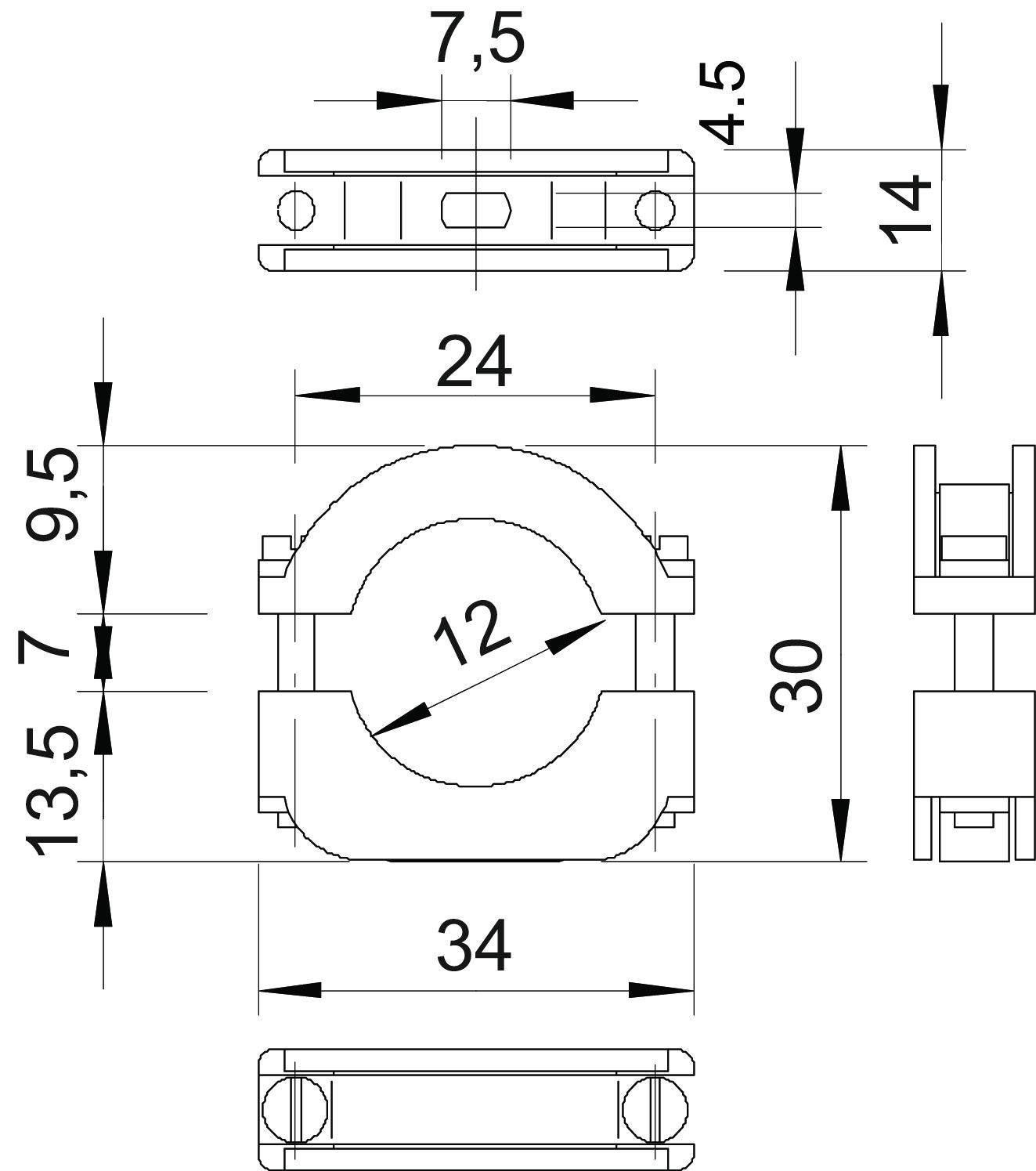

Bolt M4 x 22 Clamping range D, max. 12 mm Clamping range D, min. 6 mm Colour Light grey; RAL 7035 Dimension 6-12mm Dimension A 34 mm Dimension b 14 mm Dimension B 24 mm Dimension D 12 mm Dimension H 30 mm Dimension Ho (mm) 9,5 Dimension Hu (mm) 13,5 Dimension L 7,5 mm Dimension x 7 mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 3015 12 LGR / 2157128 , 0.23MB , pdfEU declaration of conformity 3015 12 LGR / 2157128 , 0.13MB , pdf
