- Product description
-

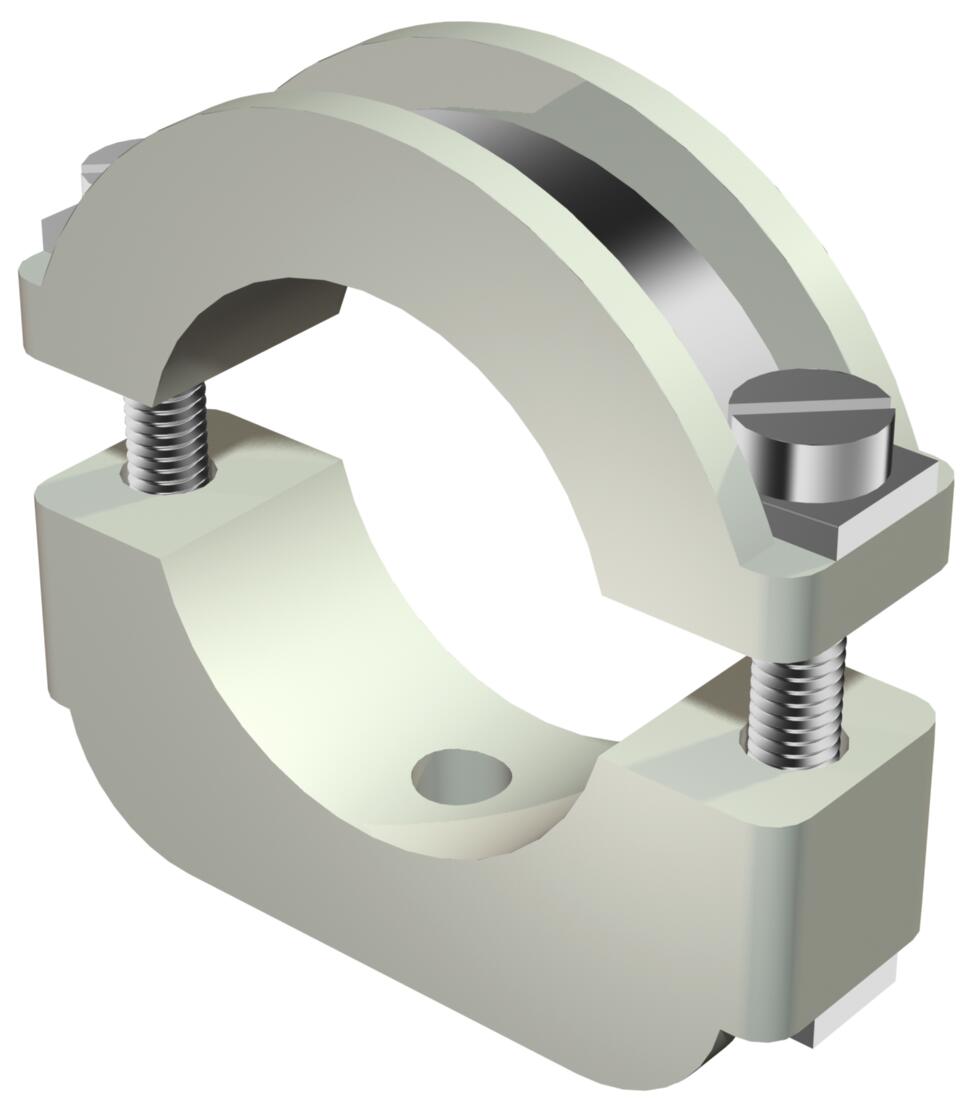

Product descriptionLightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
Can be screwed onto M6 thread.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.
- Technical data
-
Technical data

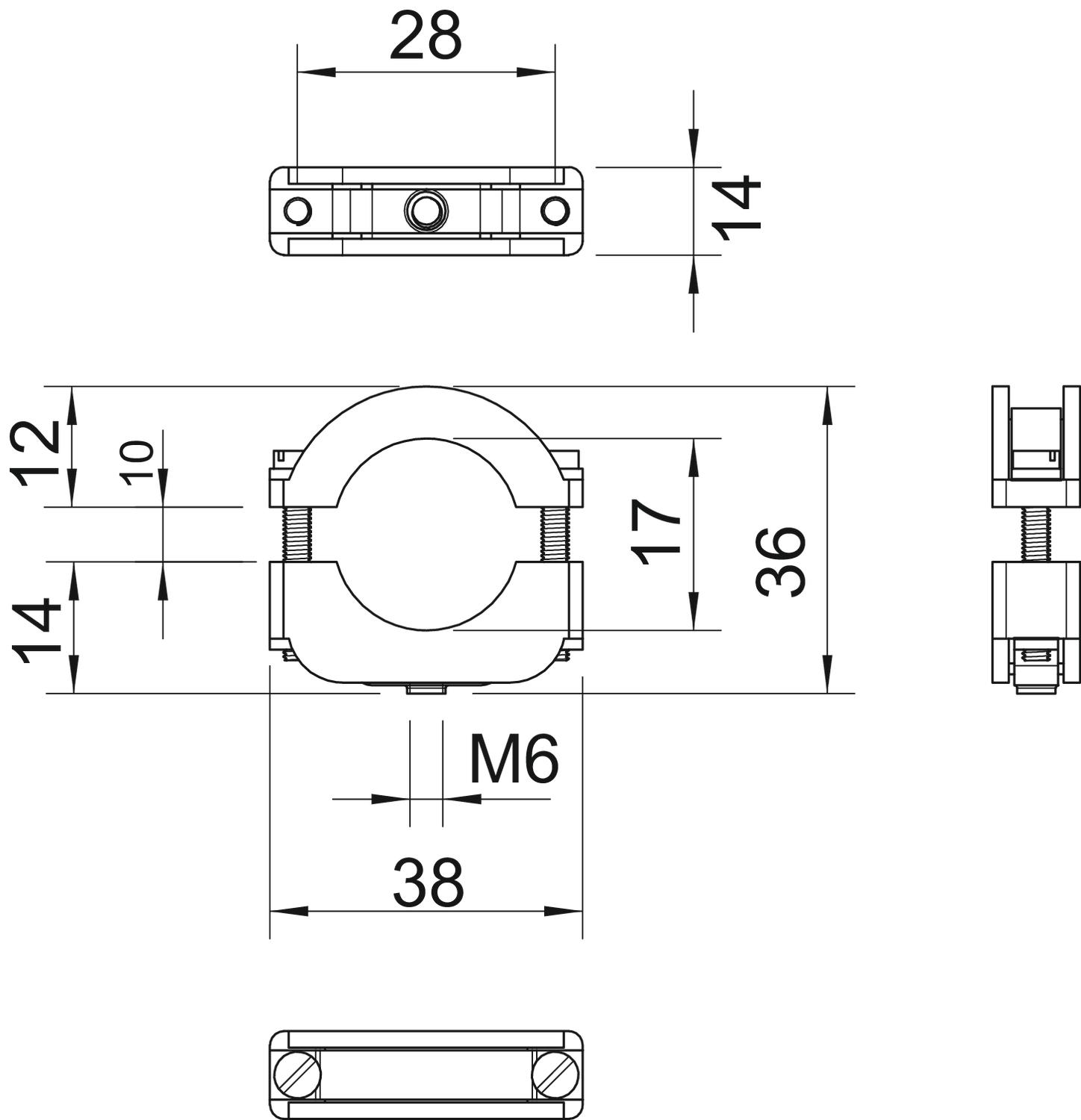

Bolt M4 x 25 Clamping range D, max. 17 mm Clamping range D, min. 10 mm Colour Light grey; RAL 7035 Dimension 10-17mm Dimension A 38 mm Dimension B 28 mm Dimension b 14 mm Dimension D 17 mm Dimension H 36 mm Dimension Ho (mm) 12 Dimension Hu (mm) 14 Dimension l 25 mm Dimension x 7 mm Fastening type Threaded connection Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 3020 LGR / 2158175 , 0.25MB , pdfEU declaration of conformity 3020 LGR / 2158175 , 0.13MB , pdf
