Lock washer 11.8 | 2.1 | M6

morepic-1

morepic-2

Lock washer

Item no. 3405060 | EAN 4012195302292

Item no. / Types

Dimension d min.

Dimension h

Thread

Product description

Product description

Lock washer M6

Technical data

Technical data

Dimension	M6
Dimension d	6,3 mm
Dimension d max.	11,8 mm
Dimension d min.	11,8 mm
Dimension h	2,1 mm
External diameter	11,8 mm
Height	2,1 mm

Inner diameter	0,25 mm
Lock washer version	Ribbed
Material	Steel
Plate thickness	0,08 in
Surface	Electrogalvanized
Thickness	2,1 mm
Thread	M6

All types

All types

Types	Dimension d min.	Dimension h	Thread	Item no.	Quantity	SSU
LWS M6 G	11.8 mm	2.1 mm	M6	3405060	piece	100 piece
LWS M8 G	14.8 mm	2.6 mm	M8	3405087	piece	100 piece
LWS M10 G	18.1 mm	3 mm	M10	3405109	piece	100 piece
LWS M12 G	21.1 mm	3.5 mm	M12	3405125	piece	100 piece

Downloads

Data sheet LWS M6 G / 3405060 , 0.11MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity LWS M6 G / 3405060 , 0.05MB , pdf

Download

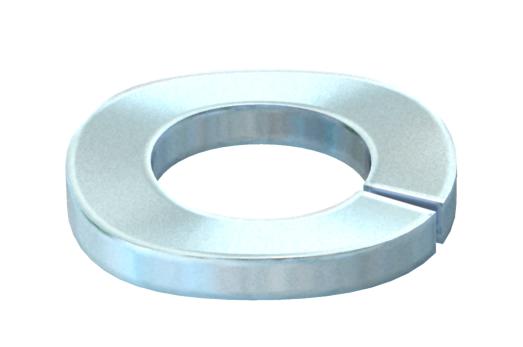

Product graphic LWS M6 G / 3405060, 12.82 kB, jpg

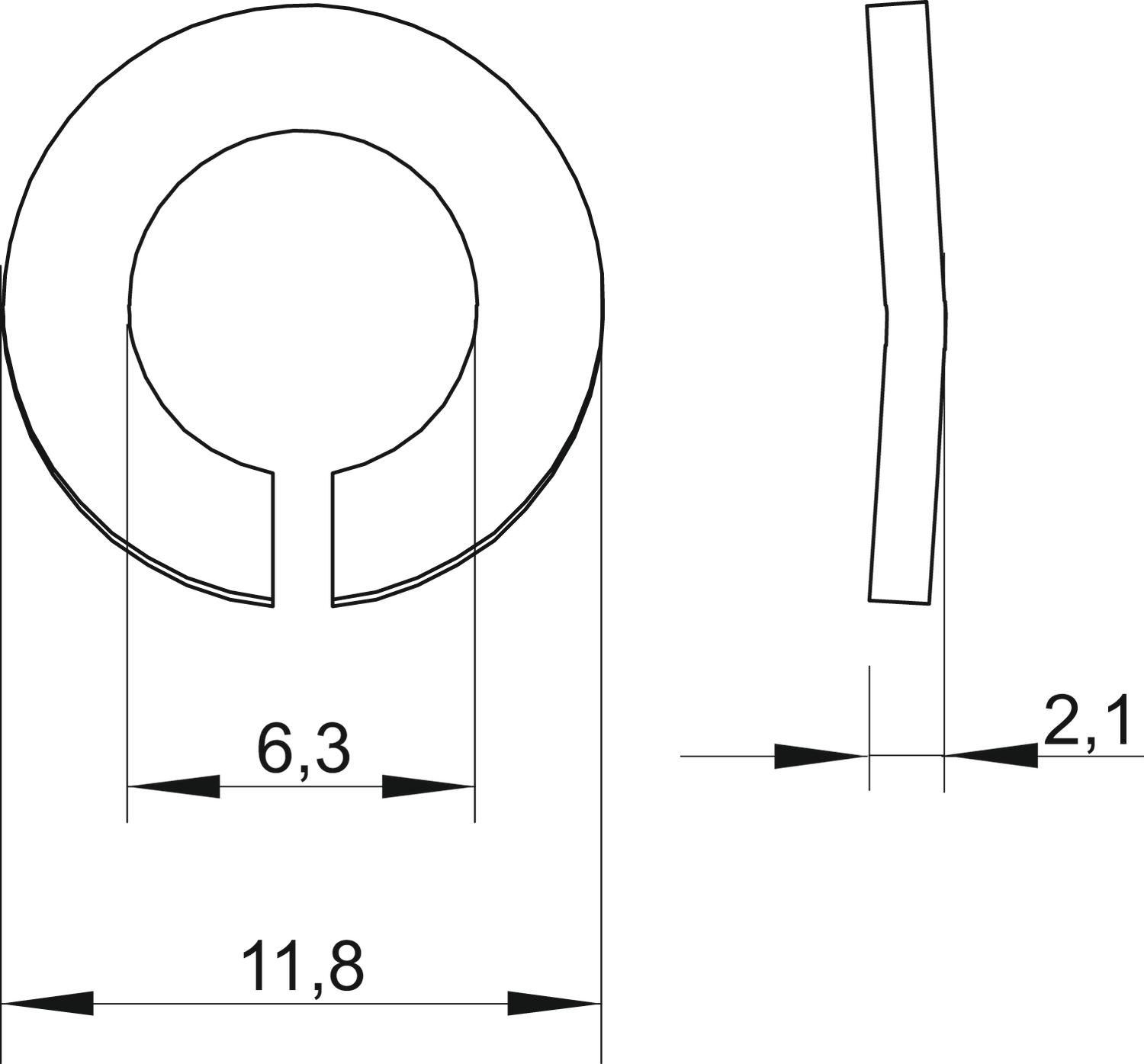

Scale drawing LWS M6 G / 3405060, 66.08 kB, jpg

LWS M6 G / 3405060
