Lock washer 18.1 | 3 | M10

morepic-1

morepic-2

Lock washer

Item no. 3405109 | EAN 4012195302414

Item no. / Types

Dimension d min.

Dimension h

Thread

Product description

Product description

Lock washer M10

Technical data

Technical data

Dimension	M10
Dimension d	10,5 mm
Dimension d max.	18,1 mm
Dimension d min.	18,1 mm
Dimension h	3 mm
External diameter	18,1 mm
Height	3 mm

Inner diameter	0,41 mm
Lock washer version	Ribbed
Material	Steel
Plate thickness	0,12 in
Surface	Electrogalvanized
Thickness	3 mm
Thread	M10

All types

All types

Types	Dimension d min.	Dimension h	Thread	Item no.	Quantity	SSU
LWS M6 G	11.8 mm	2.1 mm	M6	3405060	piece	100 piece
LWS M8 G	14.8 mm	2.6 mm	M8	3405087	piece	100 piece
LWS M10 G	18.1 mm	3 mm	M10	3405109	piece	100 piece
LWS M12 G	21.1 mm	3.5 mm	M12	3405125	piece	100 piece

Downloads

Data sheet LWS M10 G / 3405109 , 0.11MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity LWS M10 G / 3405109 , 0.05MB , pdf

Download

Product graphic LWS M10 G / 3405109, 12.82 kB, jpg

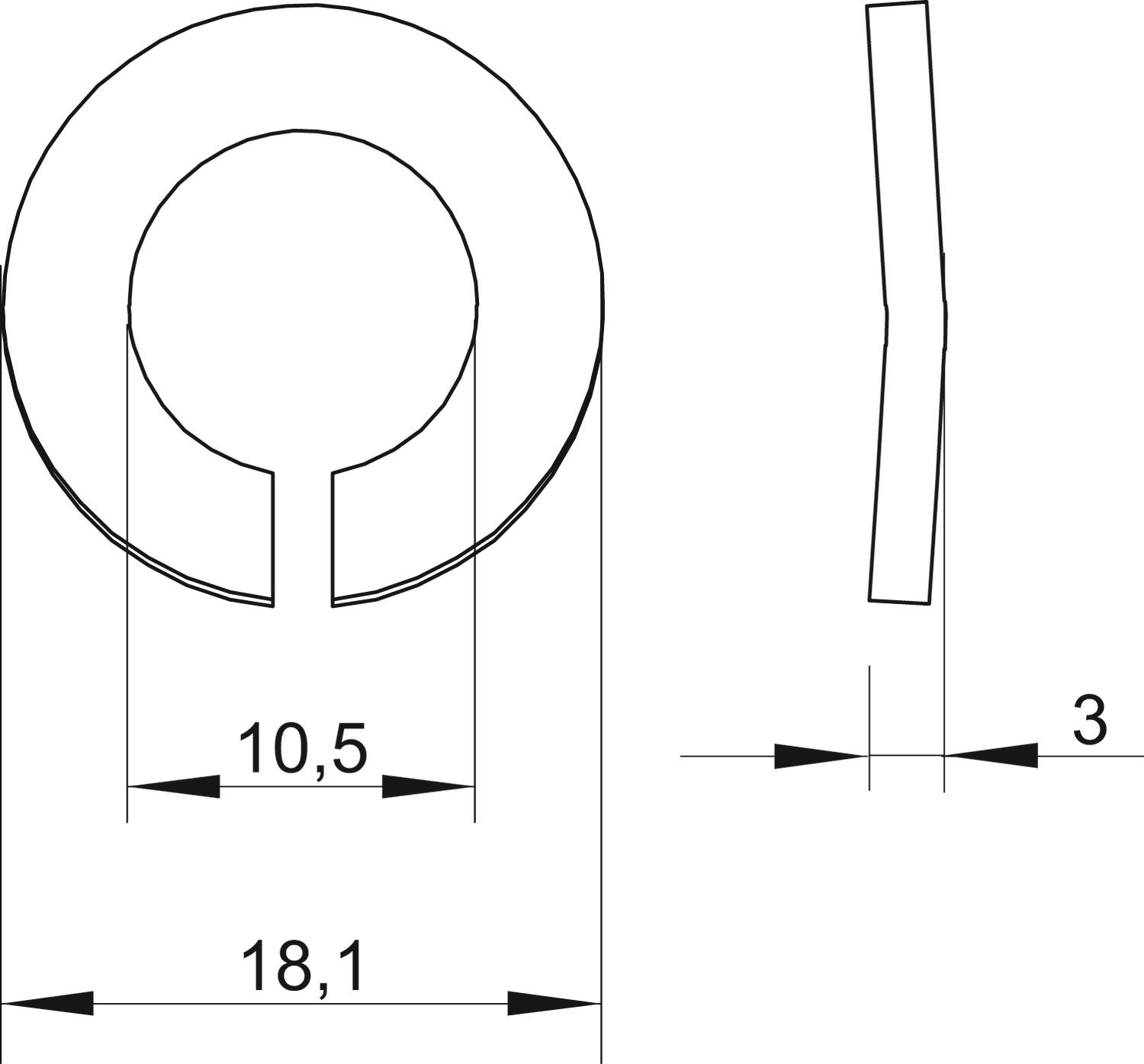

Scale drawing LWS M10 G / 3405109, 65.72 kB, jpg

LWS M10 G / 3405109

3405109_KSTP1.stp, 21.96 kB
