Locknut, PG thread Pg_36 | 60
morepic-1 morepic-2

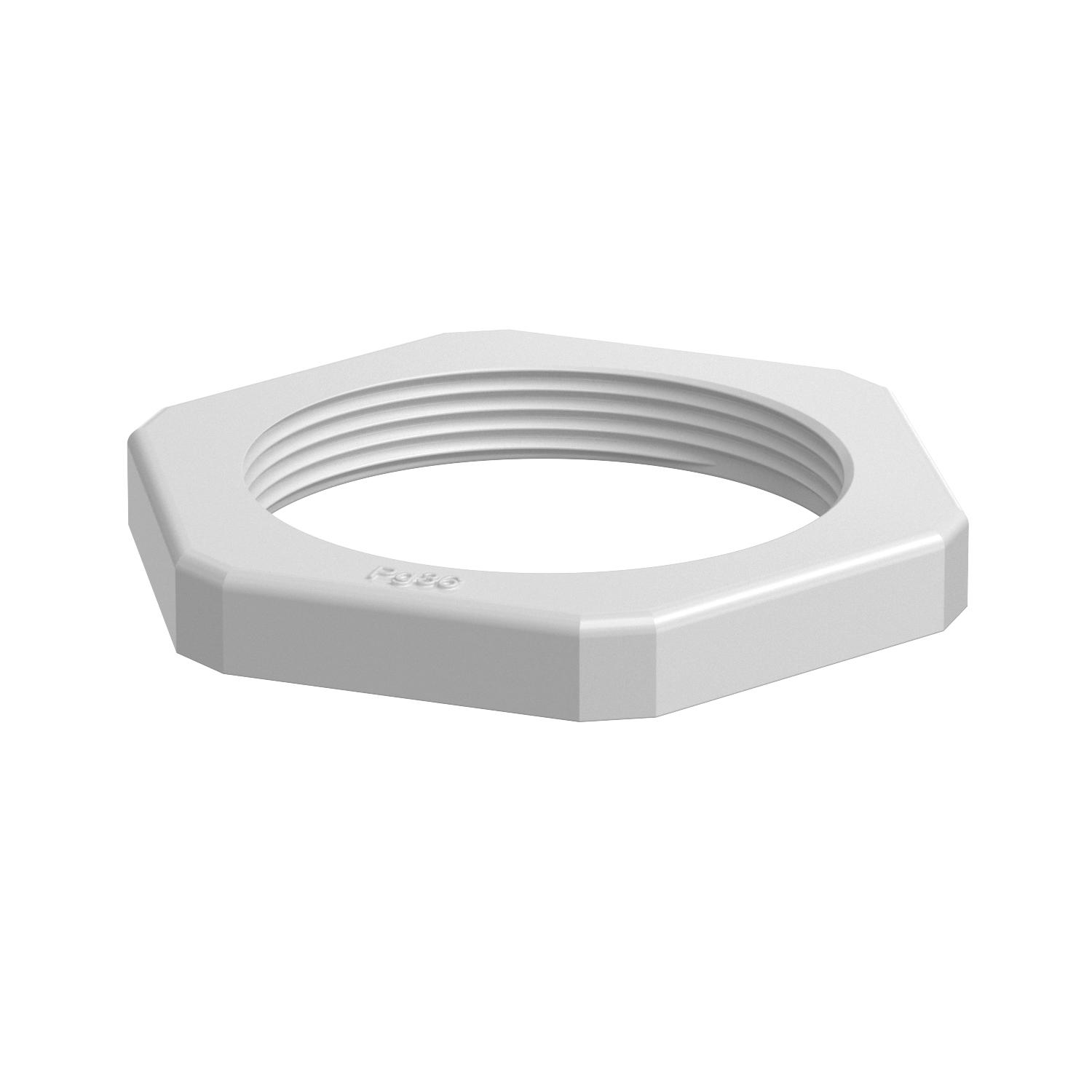

Locknut, PG thread

Item no. 2043351 | EAN 4012195179238

Product description
Product description
Locknut DIN 46320, with PG thread DIN 40430.

Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035

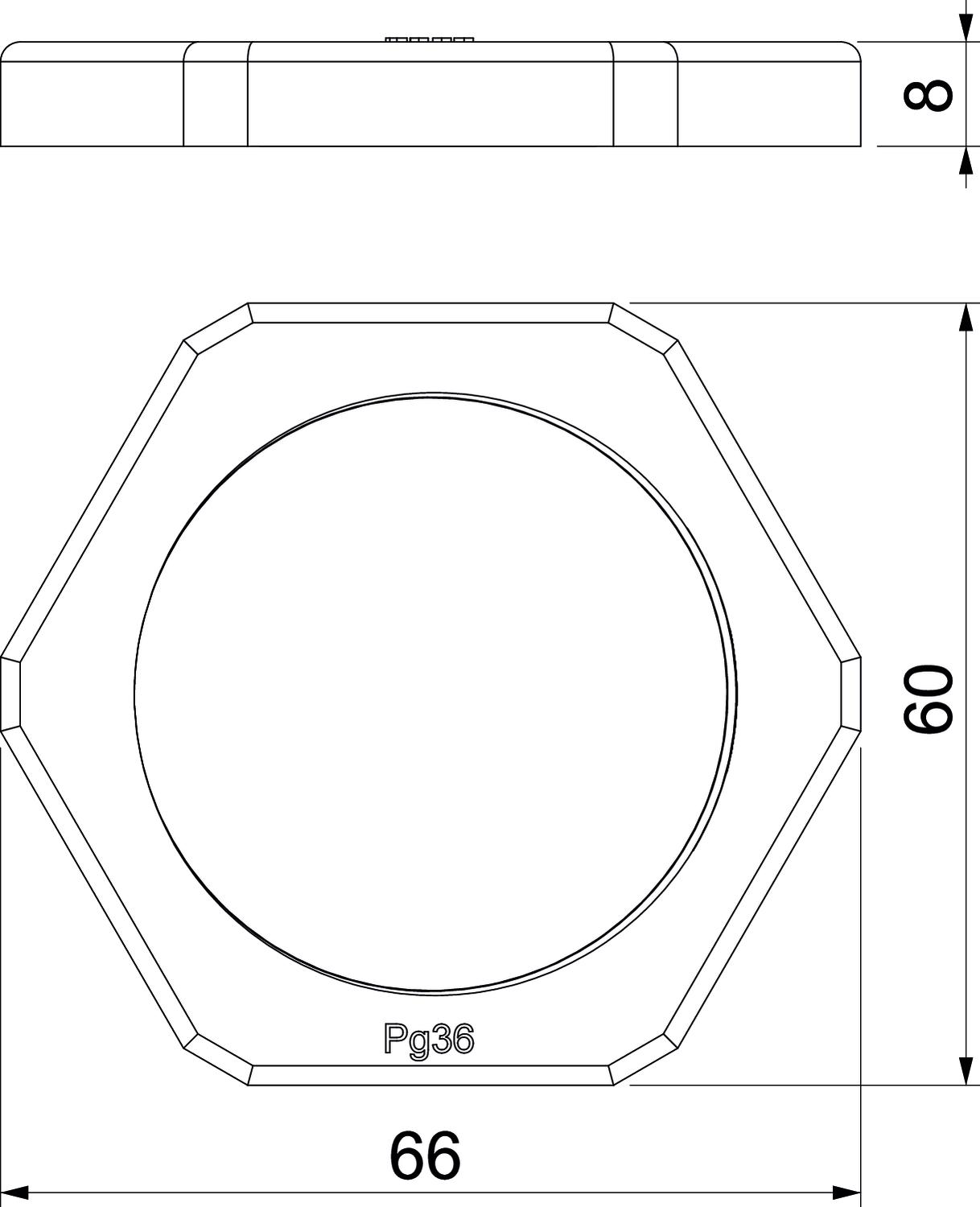

Dimension PG36
Dimension E 66 mm
Dimension L 8 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Nominal thread size metric/PG 36
Thread Pg_36
Thread type PG
WAF 60
All types

All types

Types Thread WAF Item no. Quantity SSU
116 PG 7 Pg_7 19 2043076
100 piece
116 PG 9 Pg_9 22 2043092
100 piece
116 PG11 Pg_11 24 2043114
100 piece
116 PG13.5 Pg_13,5 27 2043130
100 piece
116 PG16 Pg_16 30 2043165
100 piece
116 PG21 Pg_21 36 2043211
100 piece
116 PG29 Pg_29 46 2043297
50 piece
116 PG36 Pg_36 60 2043351
25 piece
116 PG42 Pg_42 65 2043424
25 piece
116 PG48 Pg_48 70 2043483
25 piece
