MCR protection for 2-pole for power supply, 48 V 2 | 60 | 80 | IP20

MCR protection for 2-pole for power supply, 48 V

Item no. 5097615 | EAN 4012195578130

Item no. / Types

Pole version	2

Maximum continuous voltage AC

Maximum continuous voltage DC

Protection rating	IP20

Product description

Product description

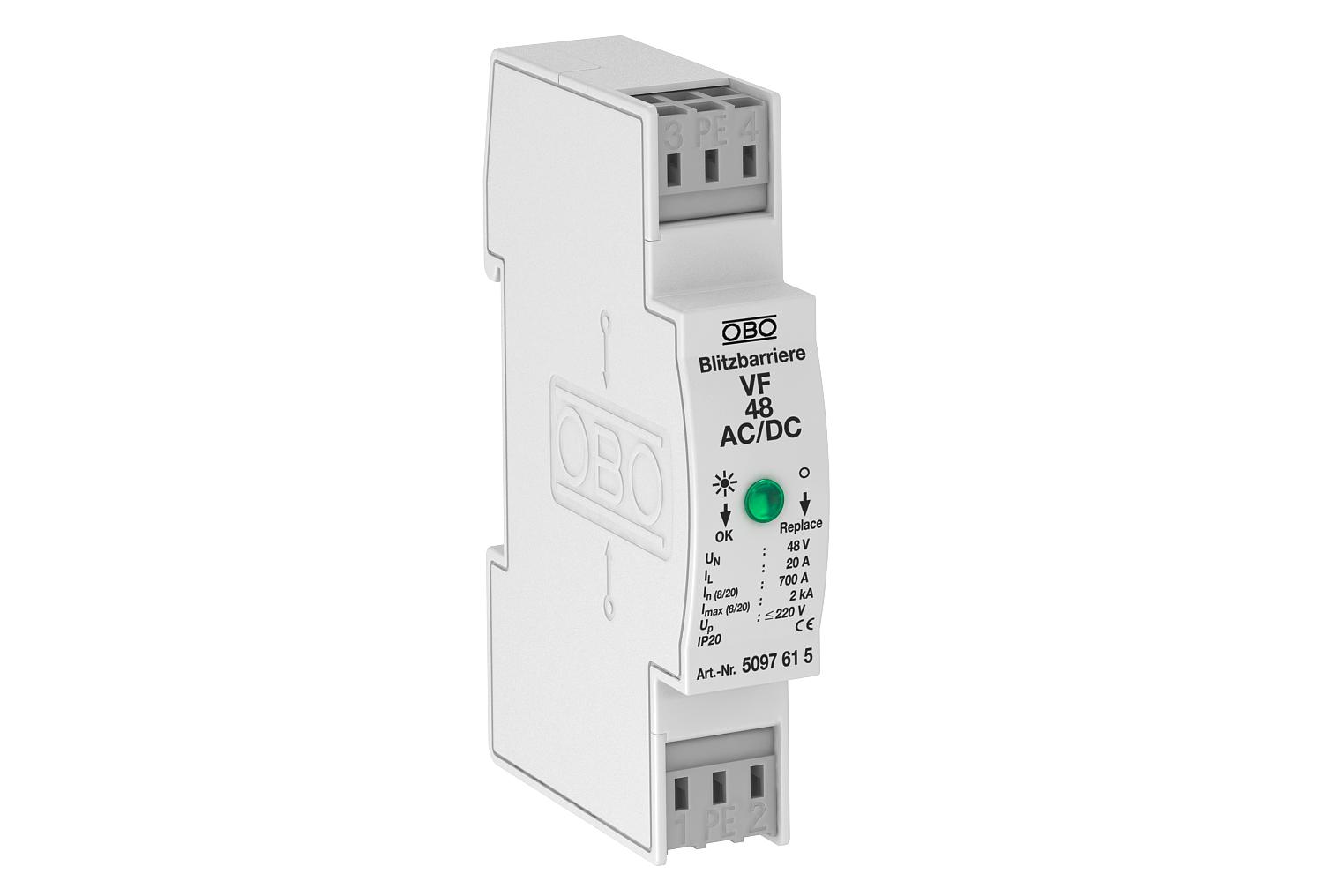

Surge protective device/fine protection type 3 to EN 61643-11

• Suitable for DC and AC voltage systems

• With visual function display

• With installation-friendly, screwless connection terminals

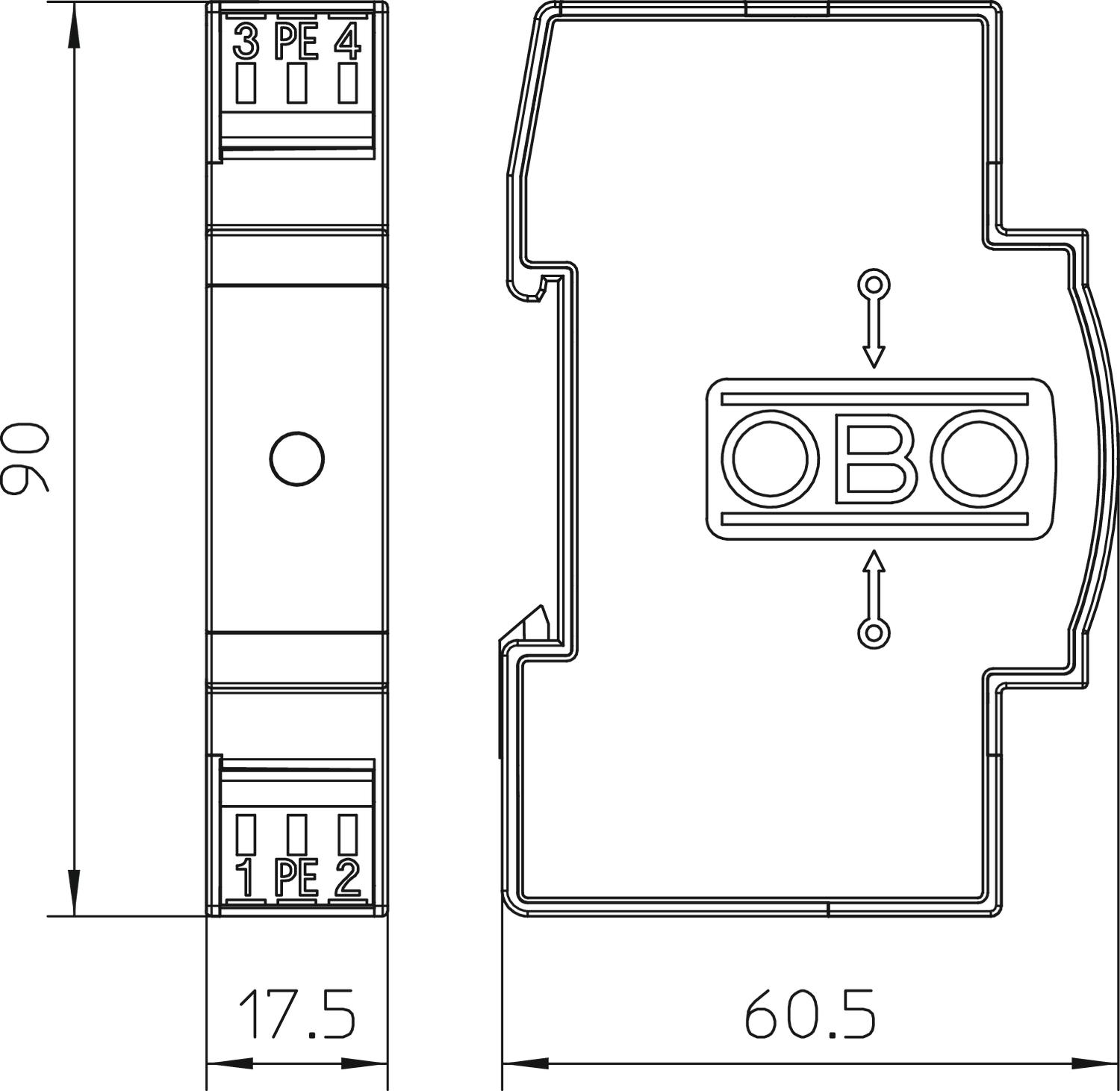

• In a space-saving 17.5 mm grid

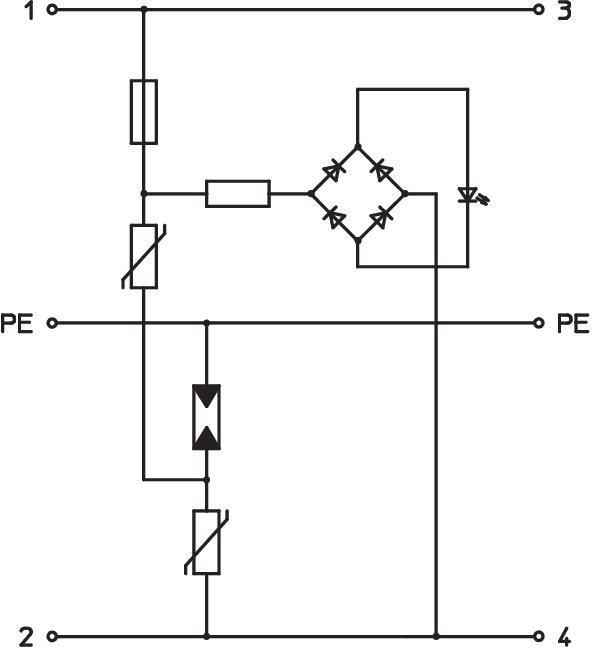

• Y circuit

Application: Universal use on 35 mm DIN profile rail in every normal commercially available distributor housing.

Technical data

Technical data

Blow-out	no
Cable type for surge protection devices	Power cable AV
Conductor cross-section, flexible (fine-wire), min.	2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	0,14 mm²
Dimension	48V AC
Explosion-tested version	no
Installation type	DIN rail 35 mm
Lightning protection zone LPZ	2→3
Max. mains-side overcurrent protection	20
Maximum back-up fuse	20 A
Maximum continuous voltage AC	60
Maximum continuous voltage DC	80
Maximum discharge current (8/20 μs)	2 kA
Network form	Other
Nominal discharge current (8/20 µs)	0,7 kA

Nominal voltage AC (50/60 Hz)	48 V
OBO_Nominal load current (input/output terminal)	20 A
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Pole number	3
Pole version	2
Protection level wire-earth	<1200 V
Protection level wire-wire	<220 V
Protection rating	IP20
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 3
SPD to IEC 61643-1	Class III
Test class, type 3	yes
Version for	48 V version

All types

All types

Types	Pole version	Maximum continuous voltage AC	Maximum continuous voltage DC	Protection rating	Item no.	Quantity	SSU
VF12-AC DC	2	13.5	18	IP20	5097453	piece	1 piece
VF24-AC/DC	2	34	46	IP20	5097607	piece	1 piece
VF48-AC/DC	2	60	80	IP20	5097615	piece	1 piece
VF110-AC DC	2	150	200	IP20	5097631	piece	1 piece
VF230-AC/DC	2	255	350	IP20	5097650	piece	1 piece
