Mesh cable tray GR-Magic® 105 A2

Item no. / Types

Length	3000 mm

Width

Height	105 mm

Wire diameter

Usable cross-section

Maintain electrical functions	no

Product description

Product description

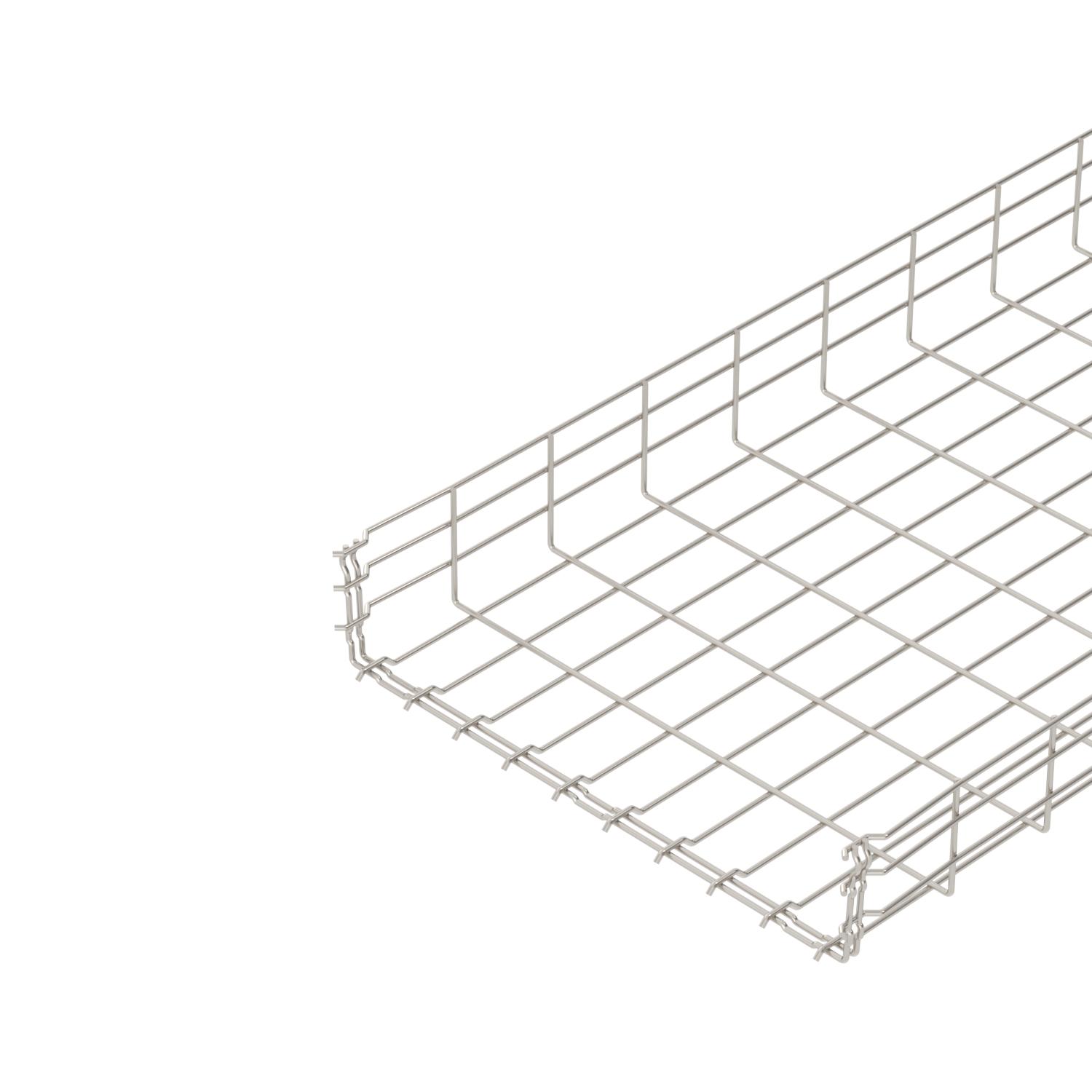

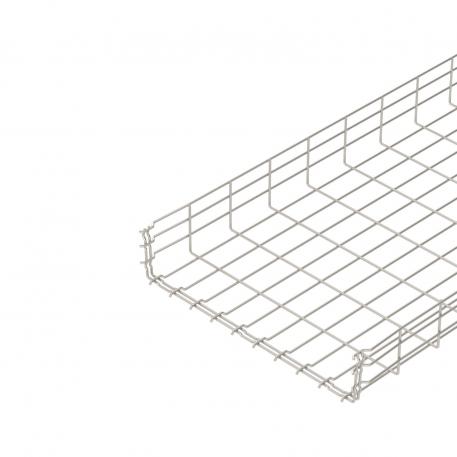

Mesh cable tray with shaped connector of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Colour	stainless steel
Connector version	Integrated connector
CO₂ Footprint (GWP) Cradle-to-Gate	15,9728 kg CO₂e / 1 Meter

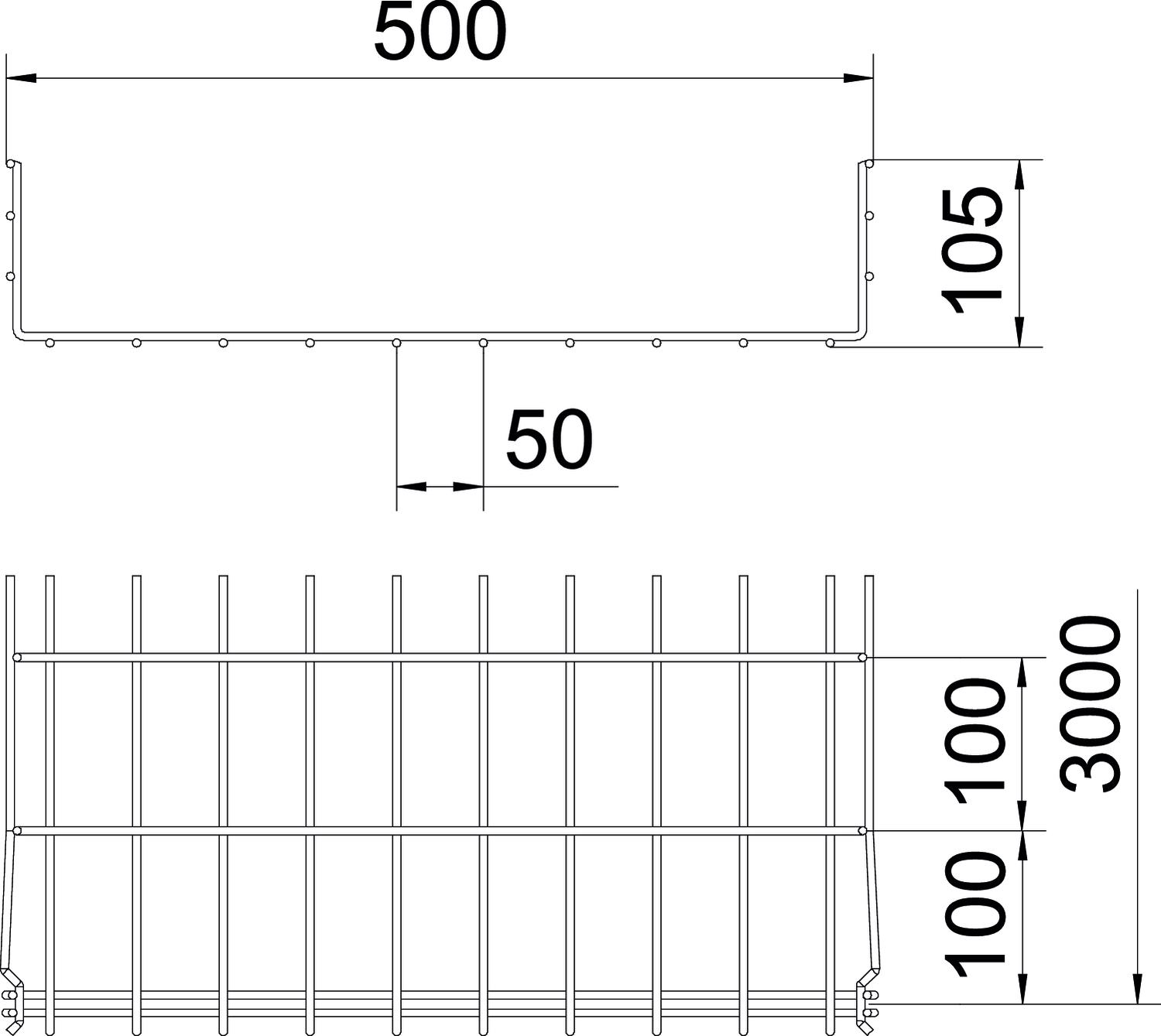

Dimension	105x500x3000
Dimension B	500 mm
Dimension H	108 mm
Height	105 mm
Height	4,13 in
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Stainless steel
Profile shape	U-shaped
Rustproof steel, pickled	yes

Screwless connector	yes
Support spacing 1.0 m	1,25 kN/m
Support spacing 1.5 m	0,85 kN/m
Support spacing 2.0 m	0,6 kN/m
Support spacing 2.5 m	0,42 kN/m
Support spacing 3.0 m	0,3 kN/m
Surface	Bright, treated
Type of connector, cable support system	Click fastening
Usable cross-section	45900 mm²
Usable cross-section	459 cm²
Wide-span version	no
Width	19,69 in
Width	500 mm
Wire diameter	4,8 mm

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
GRM 105 100 A2	3000 mm	100 mm	105 mm	3.9 mm	82 cm²	no	6002451	m	3 m
GRM 105 150 A2	3000 mm	150 mm	105 mm	3.9 mm	130 cm²	no	6002455	m	3 m
GRM 105 200 A2	3000 mm	200 mm	105 mm	4.8 mm	175 cm²	no	6002457	m	3 m
GRM 105 300 A2	3000 mm	300 mm	105 mm	4.8 mm	268 cm²	no	6002460	m	3 m
GRM 105 400 A2	3000 mm	400 mm	105 mm	4.8 mm	363 cm²	no	6002463	m	3 m
GRM 105 500 A2	3000 mm	500 mm	105 mm	4.8 mm	459 cm²	no	6002466	m	3 m
GRM 105 600 A2	3000 mm	600 mm	105 mm	4.8 mm	554 cm²	no	6002469	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU

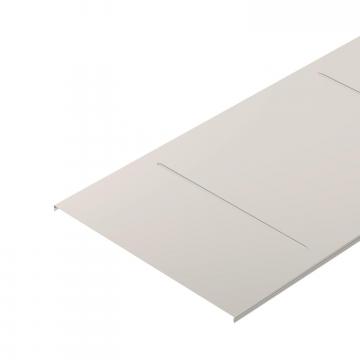

Cover for mesh cable tray, latchable A2	DGRR 500 A2	6001872	m	3 m
Corner connector A2	GEV 36 A2	6016731	piece	20 piece

Products	Types	Item no.	Quantity	SSU
Barrier strip 85 A2	TSG 85 A2	6062173	m	3 m
Clamping piece for separating retainer fastening	KS GR A2	6062282	piece	30 piece
Drop-out plate A2	KAB GR A2	6220145	piece	10 piece
