MMS-plus I 7.5x60 internal thread tie, with combination thread sleeve

Item no. 3498268 | EAN 4012196710911

Item no. / Types

Dimension

Anchor length

Drill hole diameter, min.	6 mm

WAF	13

Product description

Product description

Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With M8/M10 combination thread sleeve for fastening threaded rods.

Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.

Technical data

Technical data

Anchor length	53,5 mm
Dimension	7,5x60
Dimension	7,5x60
Dimension L	60 mm
Drill hole diameter, min.	6 mm
Head shape	Hexagonal

Length	60 mm
Material	Steel
Screw system	Hexagonal
Surface	Electrogalvanized
WAF	13

All types

All types

Types	Dimension	Anchor length	Drill hole diameter, min.	WAF	Item no.	Quantity	SSU
MMS+ I 7.5x40	7,5x40	33.5 mm	6 mm	13	3498266	piece	40 piece
MMS+ I 7.5x60	7,5x60	53.5 mm	6 mm	13	3498268	piece	40 piece

Downloads

Data sheet MMS+ I 7.5x60 / 3498268 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Brochure The Experts , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Schutzinstallation Brandgeprüfte Verlegesysteme , 19.95MB , pdf

REACH Declaration of conformity MMS+ I 7.5x60 / 3498268 , 0.12MB , pdf

Download

RoHS Declaration of conformity MMS+ I 7.5x60 / 3498268 , 0.12MB , pdf

Download

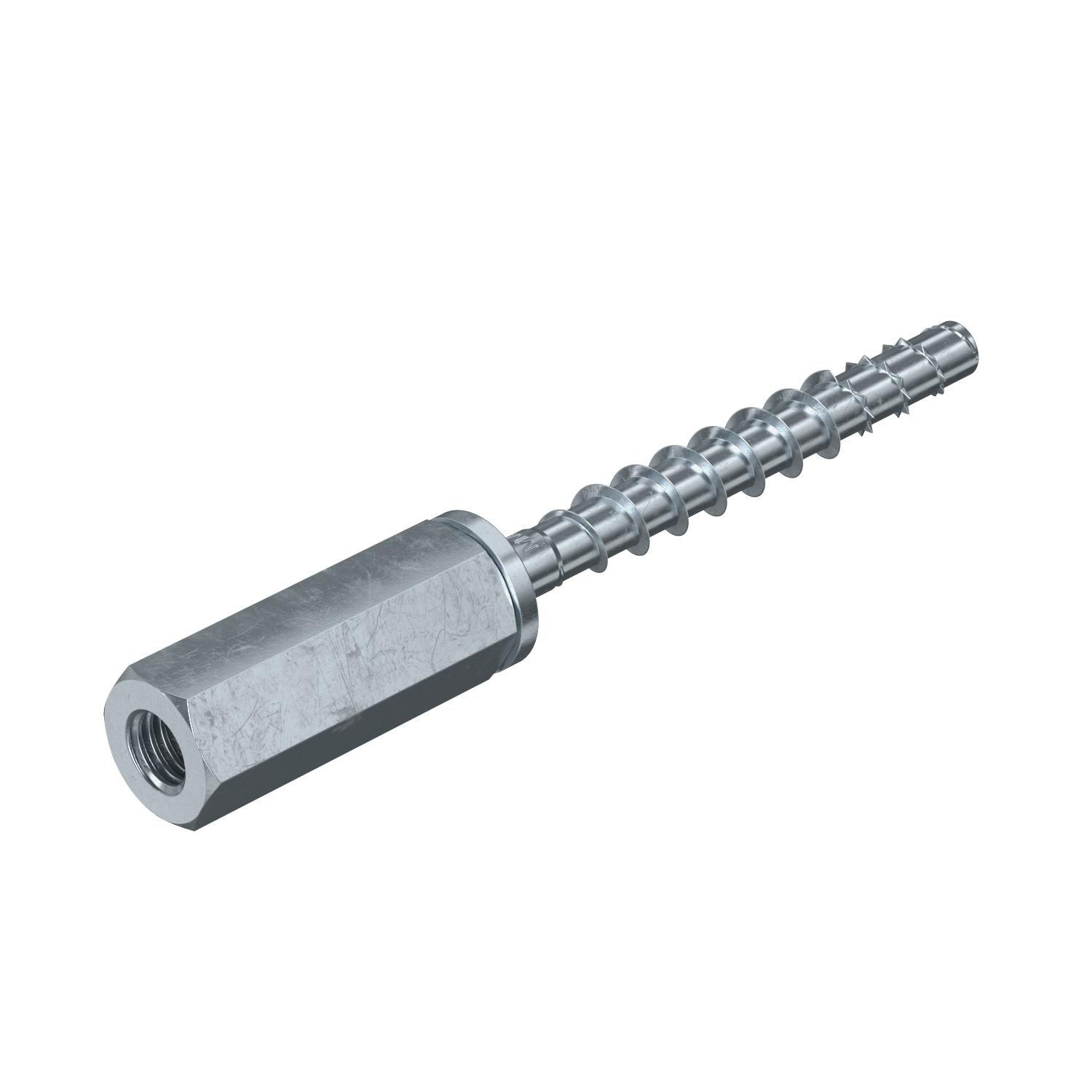

Product graphic MMS+ I 7.5x60 / 3498268, 56.51 kB, jpg

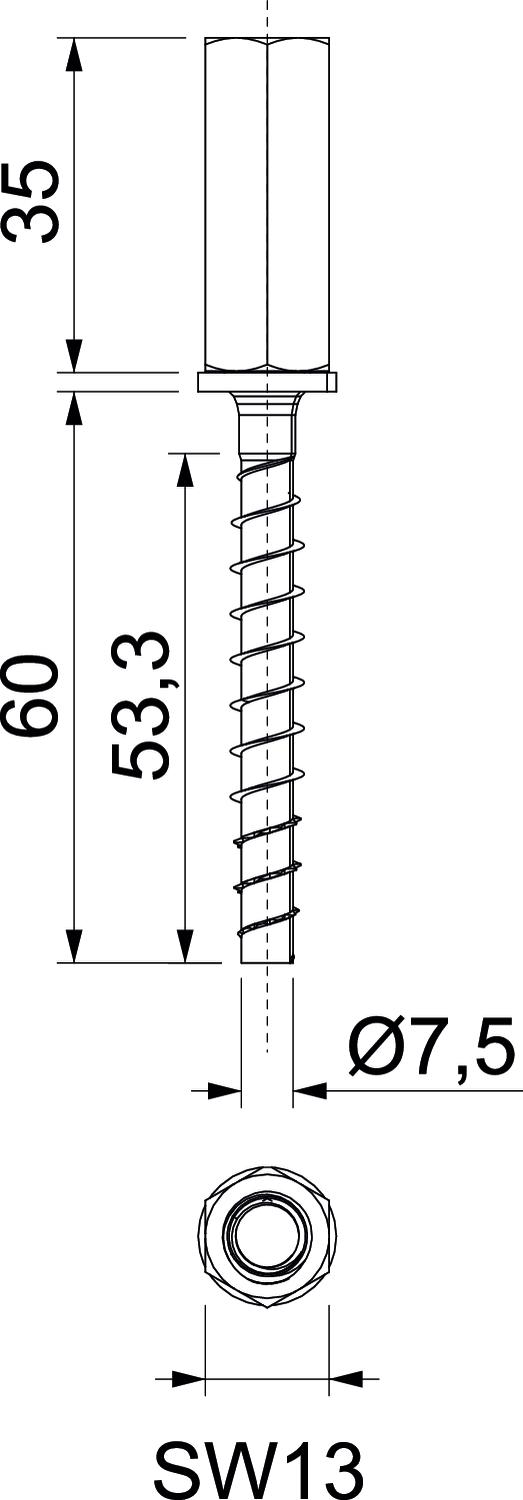

Scale drawing MMS+ I 7.5x60 / 3498268, 48.87 kB, jpg

No invitation to tender text is available for this product.
