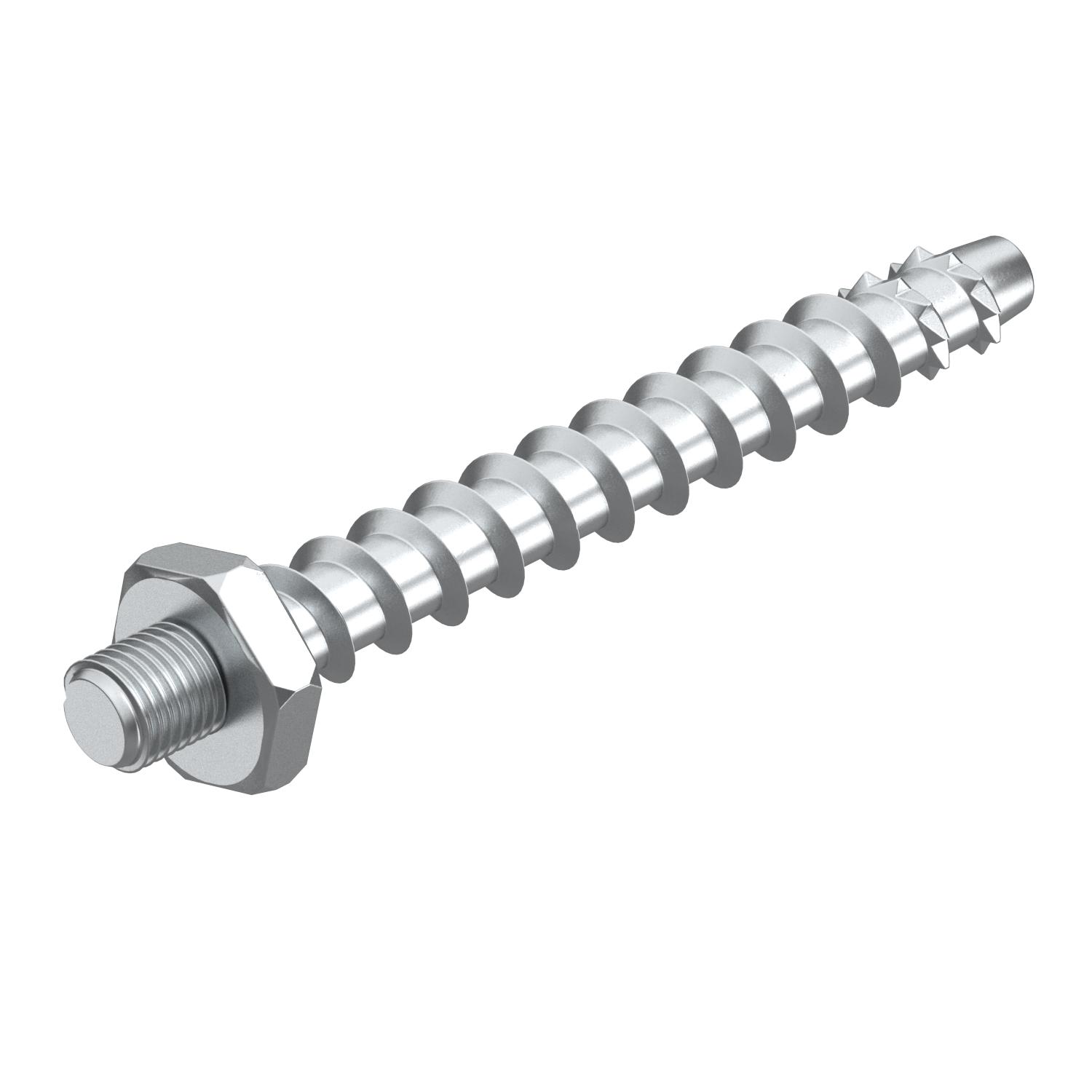

MMS-plus ST 6x55 push-in tie, with connection thread
Item no. 3498264 | EAN 4012196559671
- Product description
-
Product descriptionBolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. M6 connection thread for fastening clips with threaded foot.
Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
-
- Technical data
-
Technical data

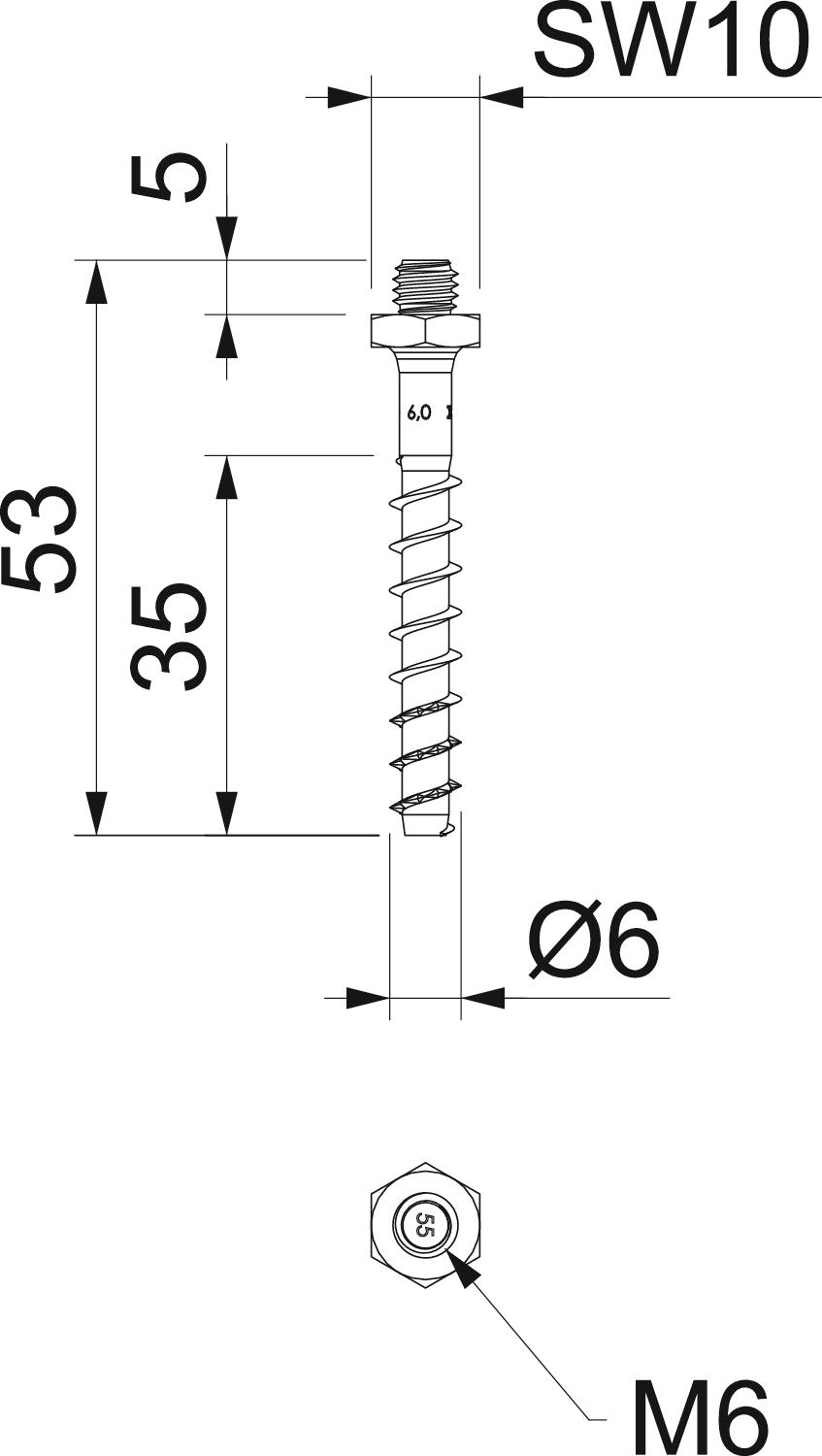

Anchor length 60 mm Colour zinc Dimension 6x55mm Dimension 6x55 Dimension L 55 mm Drill hole diameter, min. 5 mm Length 55 mm Material Steel Surface Electrogalvanized Thread M6 WAF 10 - All types
- Downloads
-
Data sheet MMS+ ST 6x55 / 3498264 , 0.16MB , pdfBrochure Brochure The Experts , 2.10MB , pdfREACH Declaration of conformity MMS+ ST 6x55 / 3498264 , 0.12MB , pdfRoHS Declaration of conformity MMS+ ST 6x55 / 3498264 , 0.12MB , pdf
