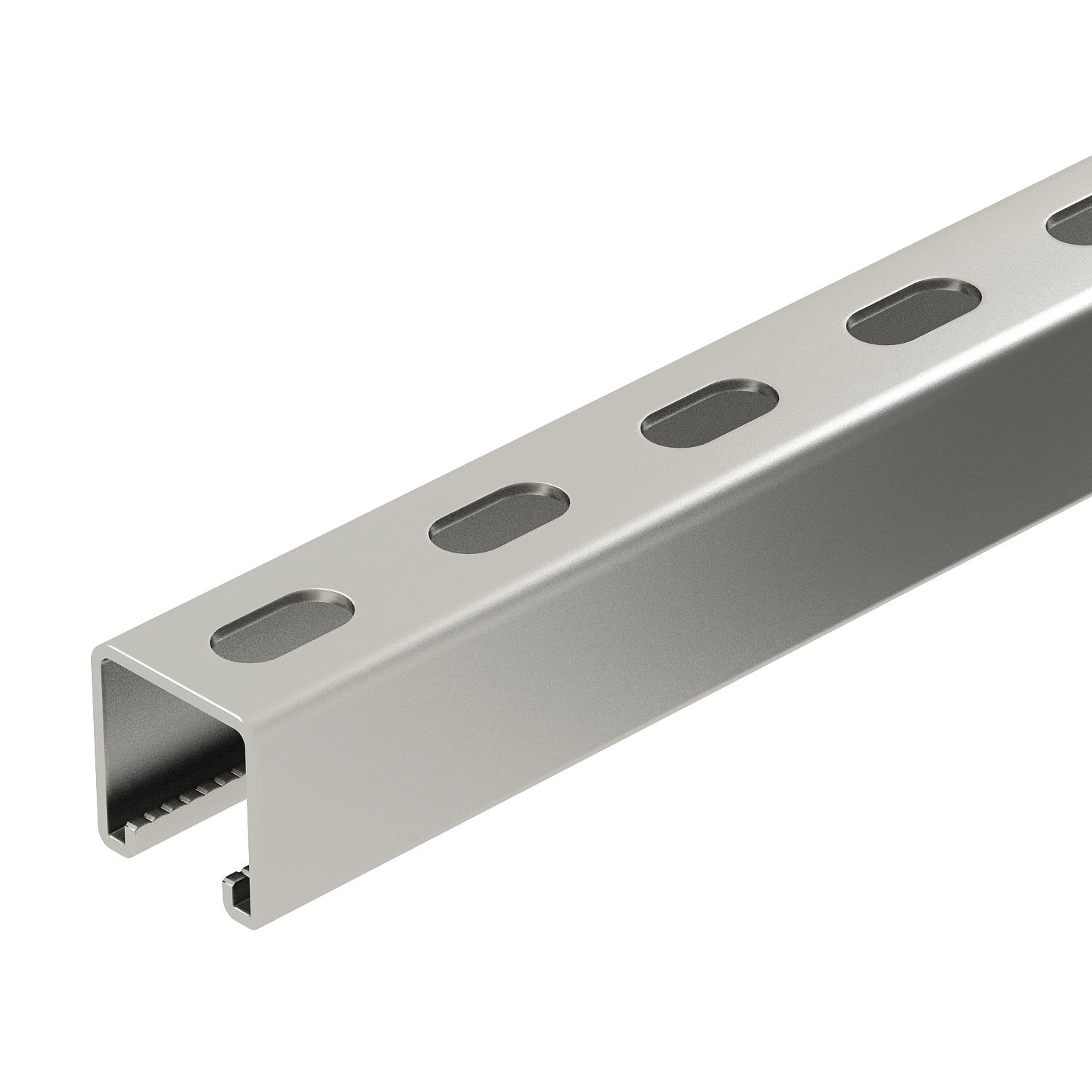

MS4141 mounting rail, slot 22 mm, A4, perforated
Item no. 1122992 | EAN 4012195698289
- Product description
-
Product descriptionHeavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
-
- Technical data
-
Technical data

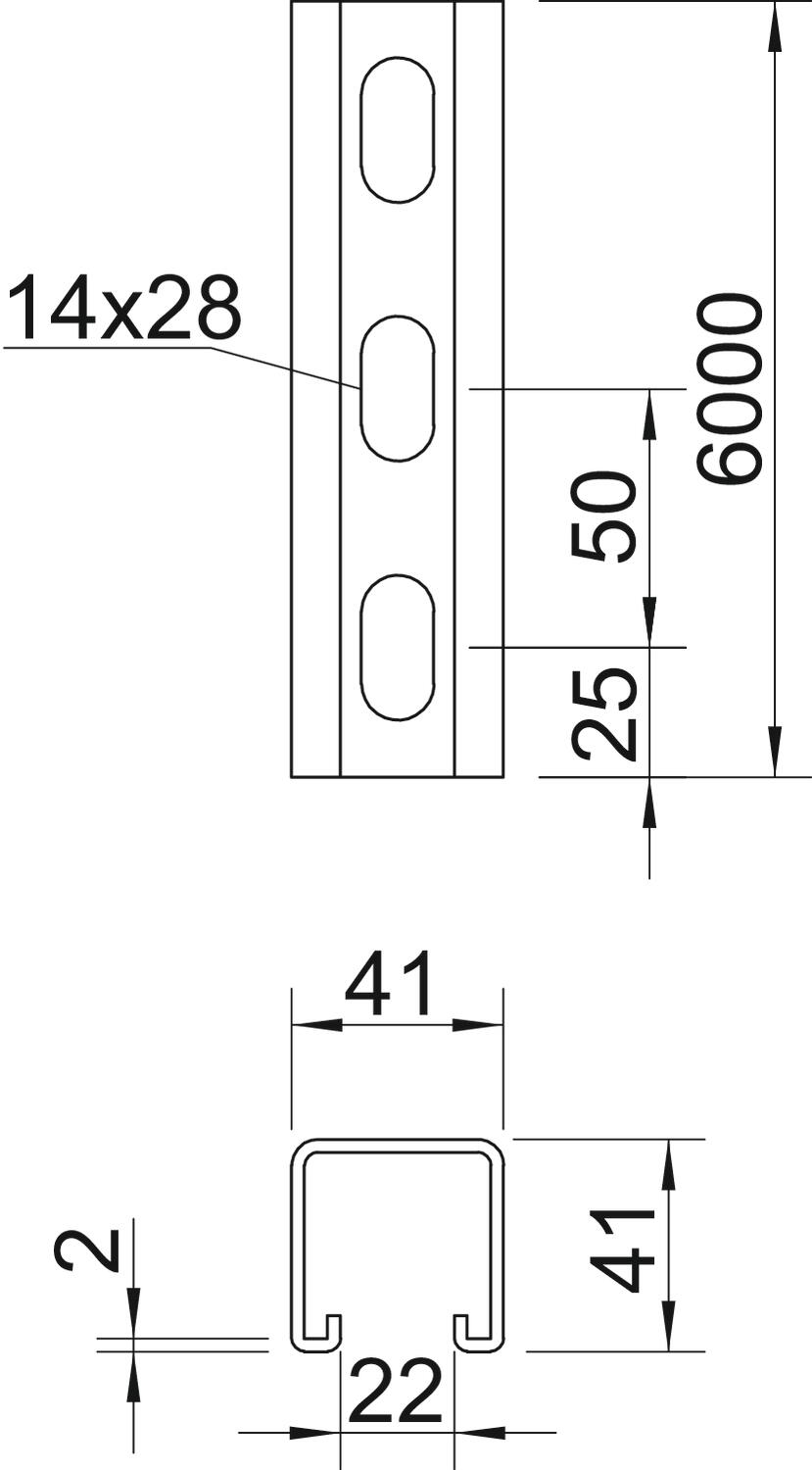

Breakable no CO₂ Footprint (GWP) Cradle-to-Gate 10,4477 kg CO₂e / 1 Meter Dimension 6000x41x41 Dimension L 6000 mm Drill hole spacing, centre 50 mm Height 41 mm Hole size 14x28 mm Length 6000 mm Maintain electrical functions no Material Stainless steel Material thickness 2 mm Profile shape C profile Slot width 22 mm Static value A 2,45 cm² Static value ly 5,18 cm Static value lz 7,56 cm Static value Wy 2,51 cm² Static value Wz 2,69 cm² Surface Bright, treated Type of perforation Perforated back Version for Single profile Width 41 mm With perforation yes With toothing yes - All types
-
System accessories
Products Types Item no. Quantity SSU
Slide nut A4
MS41SN M10 A4 1147234 50 piece
Hammer-head bolt A4
MS41HB M10x30 A4 1148422 50 piece - Downloads
-
Data sheet MSL4141P6000A4 / 1122992 , 0.18MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity MSL4141P6000A4 / 1122992 , 0.05MB , pdfREACH Declaration of conformity MSL4141P6000A4 / 1122992 , 0.12MB , pdfRoHS Declaration of conformity MSL4141P6000A4 / 1122992 , 0.12MB , pdf
