Multi-Quick clip, metric
Item no. 2153734 | EAN 4012195741671
- Product description
-

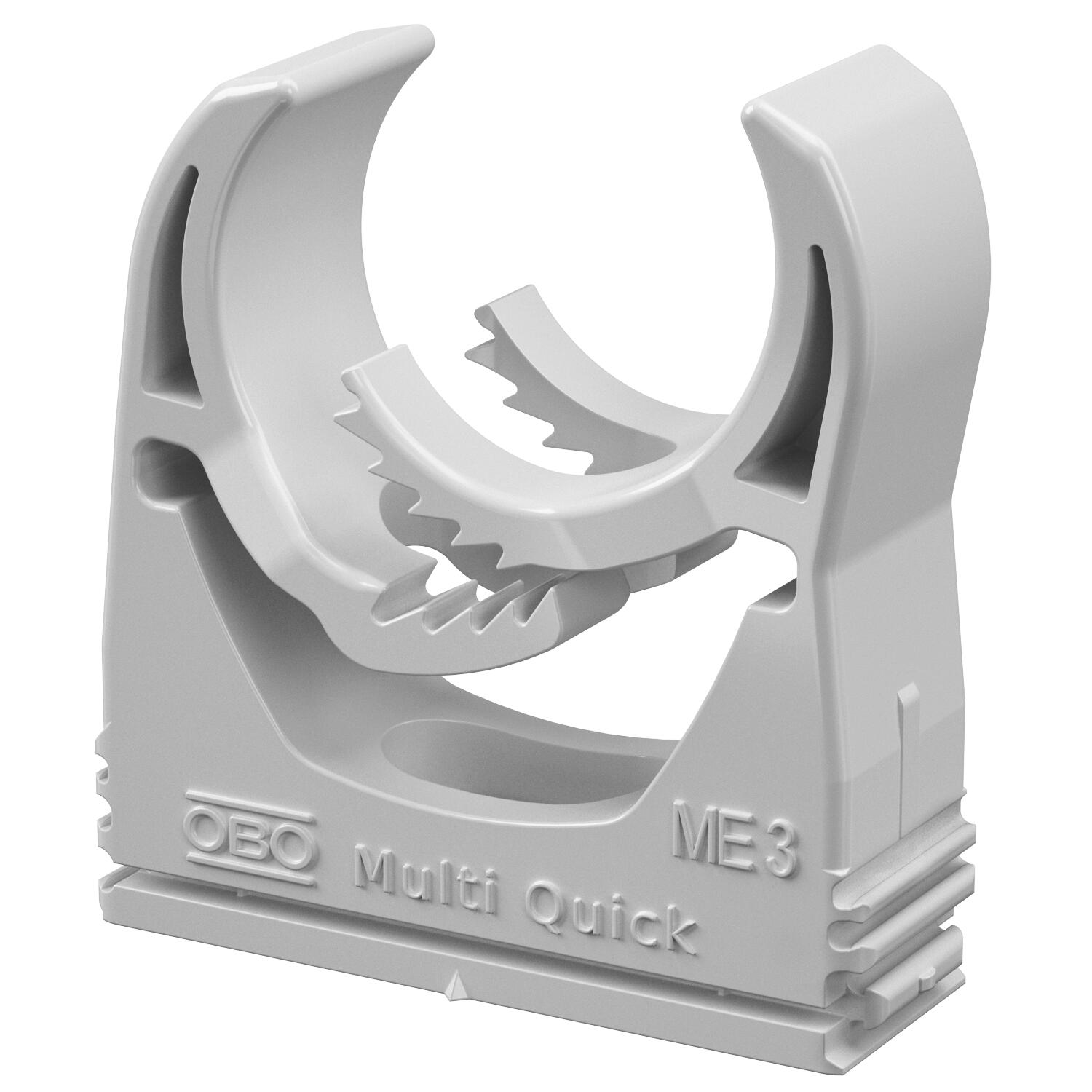

Product descriptionFlush-mounted clip to accept metric pipes and Quick Pipe electrical installation pipes. Flexible clamping range of several millimetres. Universal fastening options on walls and ceilings, both indoors and outdoors. Toolless pipe mounting. Can also be arranged with OBO Quick or starQuick clip.
-
- Technical data
-
Technical data

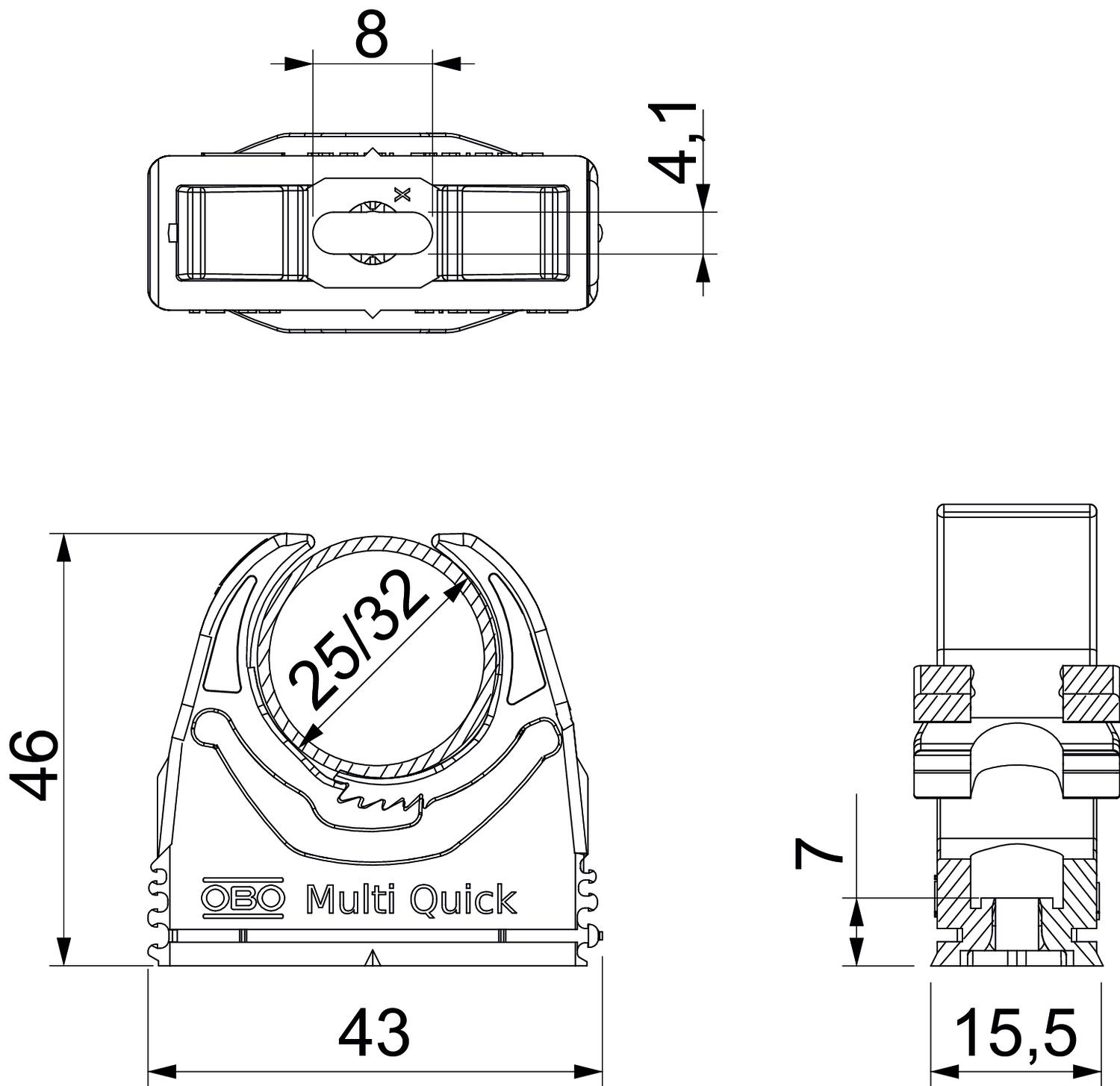

Clamping range D, max. 32 mm Clamping range D, min. 25 mm Closed no Colour Light grey; RAL 7035 Dimension 25-32mm Dimension A 43 mm Dimension B 15,5 mm Dimension E 8 mm Dimension F 4,1 mm Dimension h 7 mm Dimension H 46 mm Expandable yes Fastening type Screw hole Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Halogen-free yes Material Polyamide Number of cables/pipes 1 Pull-out value 60 N UV-resistant no With inlay no - All types
- Downloads
-
Data sheet M-Quick M32 LGR / 2153734 , 0.30MB , pdfBrochure Quick Pipe , 1.41MB , pdfEU declaration of conformity M-Quick M32 LGR / 2153734 , 0.13MB , pdfREACH Declaration of conformity M-Quick M32 LGR / 2153734 , 0.12MB , pdfRoHS Declaration of conformity M-Quick M32 LGR / 2153734 , 0.12MB , pdfLabel approval VDE symbol approval, Multi Quick , 0.43MB , pdfMounting instructions Extended mounting instructions, long isCon® , 6.19MB , pdf
