Neutral conductor terminal, with screw contacts, 4 terminals | 6 | 16
morepic-1 morepic-2

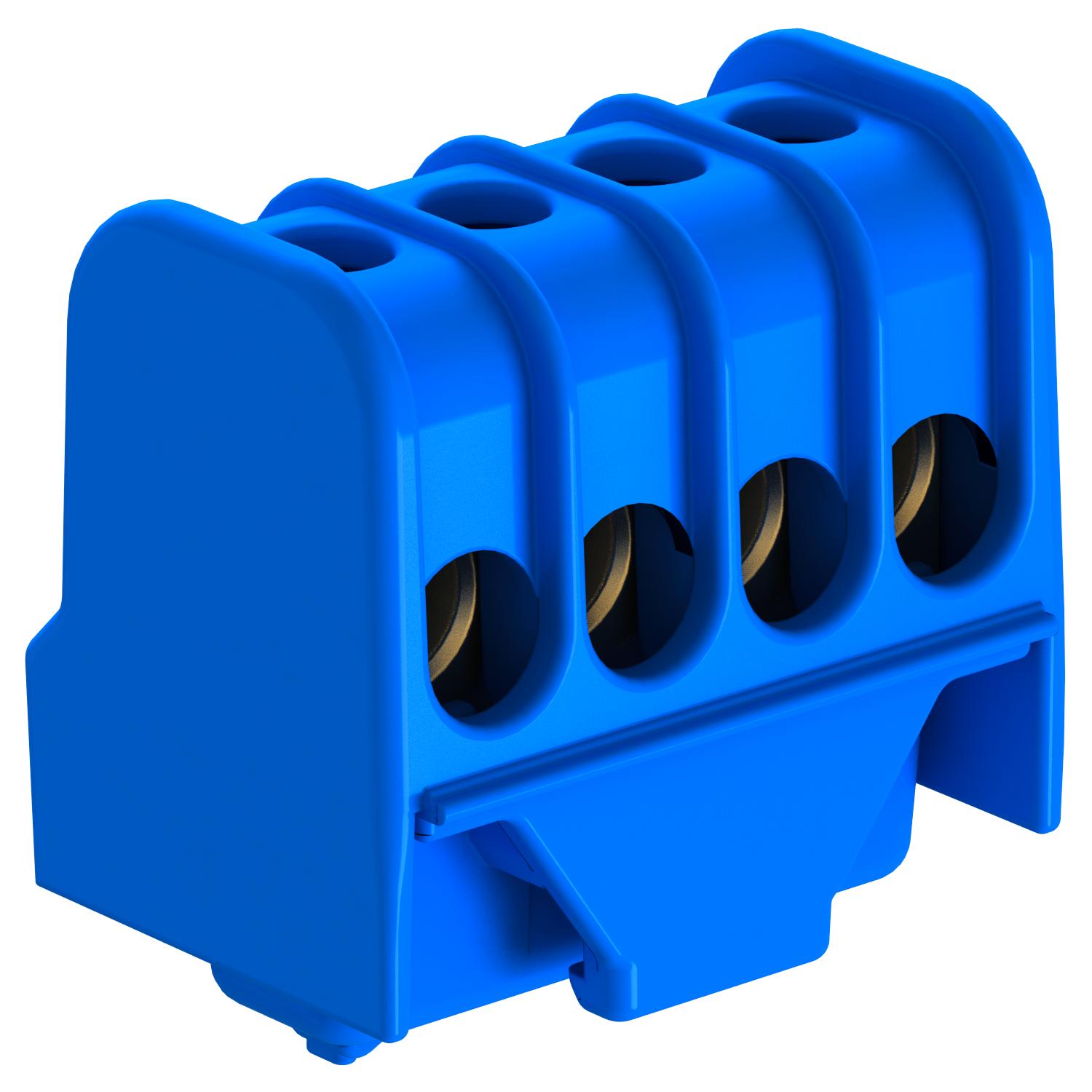

Neutral conductor terminal, with screw contacts, 4 terminals

Item no. 2016255 | EAN 4012196474226

2016255 / KL-DBN4x16BL
6 mm²
16 mm²
Product description
Product description
Neutral conductor connection terminal, brass, steel screws, electrogalvanised and transparently passivated, nominal cross-section 6 ÷ 16 mm², nominal voltage 400 V, 1-pole, with terminal sockets, max. connectable conductors per terminal 4 x 16 mm², 4 x 10 mm², 8 x 6 mm² or 12 x 4 mm².
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Closing plate required no
Colour Blue
Connectable conductor cross-section, single-wire, max. 16 mm²
Connectable conductor cross-section, single-wire, min. 4 mm²
Connection position Side
Cross-section max. connectable conductors per terminal max. 4 x 16 mm², 4 x 10 mm², 8x6 mm² or 12 x 4 mm² mm²

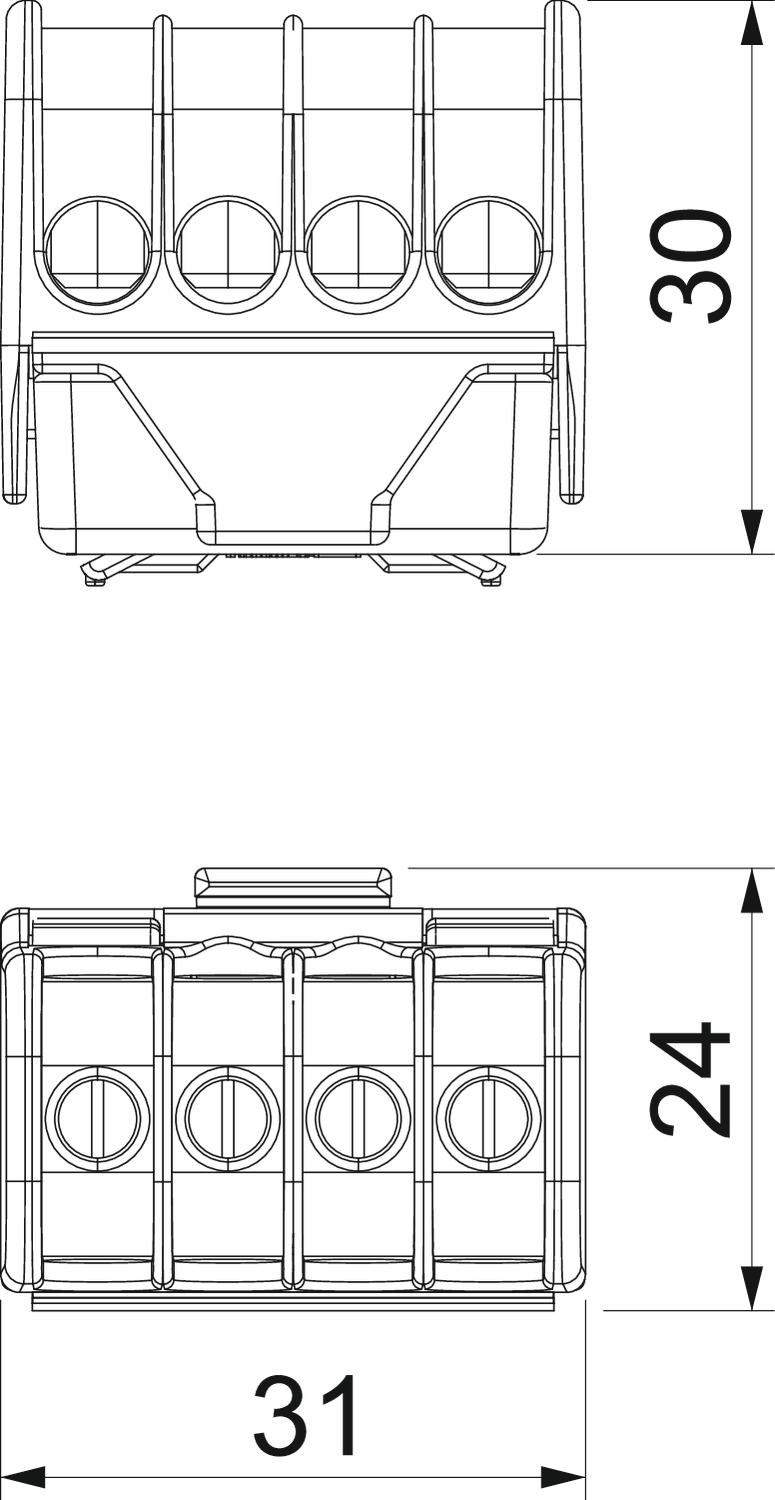

Dimension 4x16mm²
Insulation material Thermoplast
Material Polyamide
Nominal cross-section, max. 16 mm²
Nominal cross-section, min. 6 mm²
Nominal current 76 A
Nominal voltage 400 V
Number of screwless terminals per pole 1
Pole number 1
Version of electrical connection 1 Screw connection
All types

All types

Types Nominal cross-section, min. Nominal cross-section, max. Item no. Quantity SSU
KL-DBN4x16BL 6 mm² 16 mm² 2016255
10 piece
