Neutral conductor terminal, with screwless contacts, 12 terminals 12 | 10 | 16

Neutral conductor terminal, with screwless contacts, 12 terminals

Item no. 2016265 | EAN 4012196474233

Item no. / Types	2016265 / KL-DBN12x02GRBL

No. of terminals	12

Nominal cross-section, min.	10 mm²

Nominal cross-section, max.	16 mm²

Product description

Product description

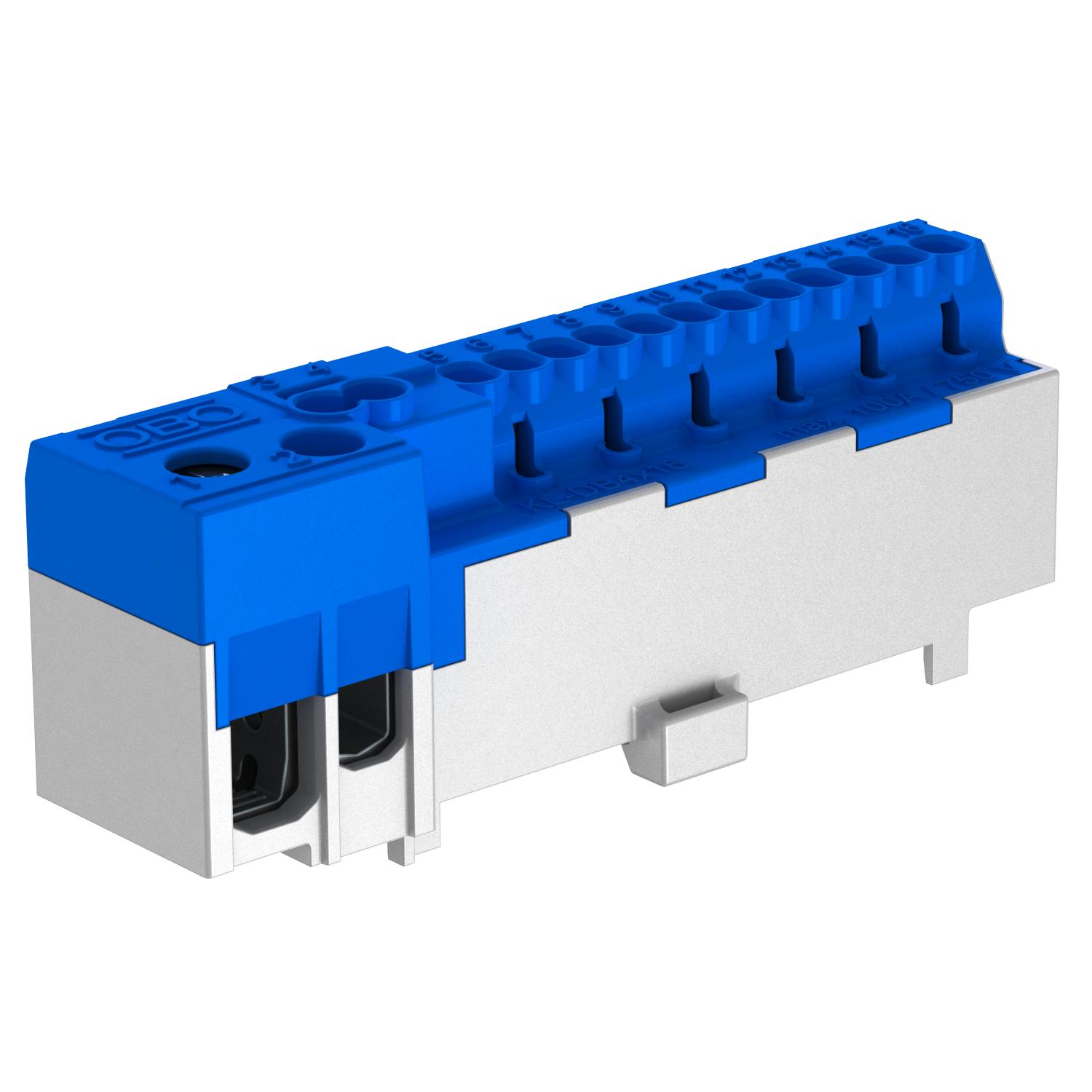

Neutral conductor connection terminal with 12 plug-in terminals, 2.5 mm² or 1.5 mm², flexible with wire end sleeve; two plug-in terminals, 4 mm² and 2.5 mm², flexible with wire end sleeve and two screw connection terminals up to 25 mm² or 16 mm², flexible, 3 Nm. For snapping onto 15 mm hat rails according to DIN EN 60715 (formerly DIN EN 50022).

Technical data

Technical data

Closing plate required	no
Colour	Grey / blue
Cross-section	12 terminals to 16 mm² mm²
Dimension	12x2,5mm²
Explosion-tested version	no
Height	20 mm
Length	85 mm
Material	Polyamide

No. of terminals	12
Nominal cross-section, max.	16 mm²
Nominal cross-section, min.	10 mm²
Pole number	12
Suitable for flexible conductors	yes
Suitable for multi-wire conductors	no
Suitable for solid conductors	no
