OBO anchor G 18 | 4 | M6 | 26
morepic-1 morepic-2

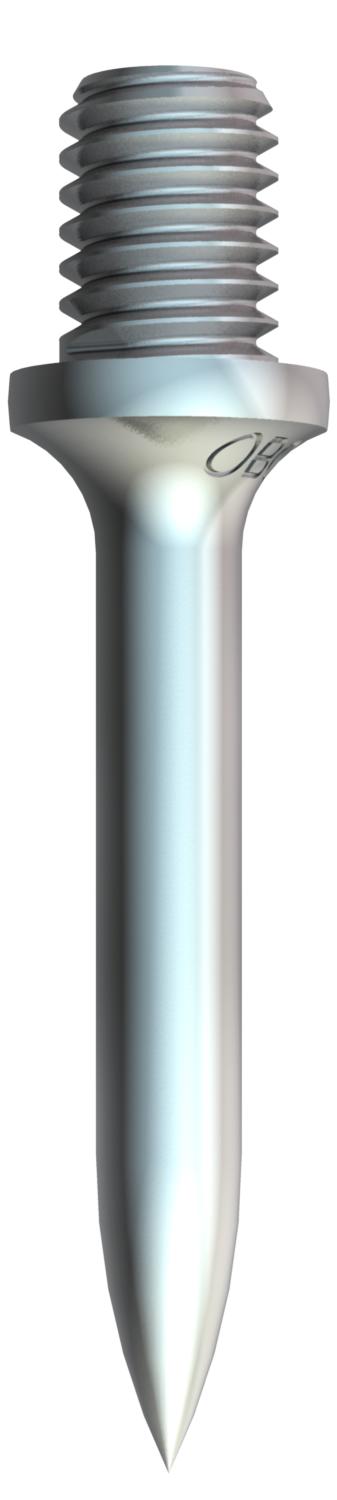

OBO anchor G

Item no. 3100189 | EAN 4012195245834

4 mm
M6 mm
Product description
Product description
Hardened steel, electrogalvanised with M6 x 8 mm thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

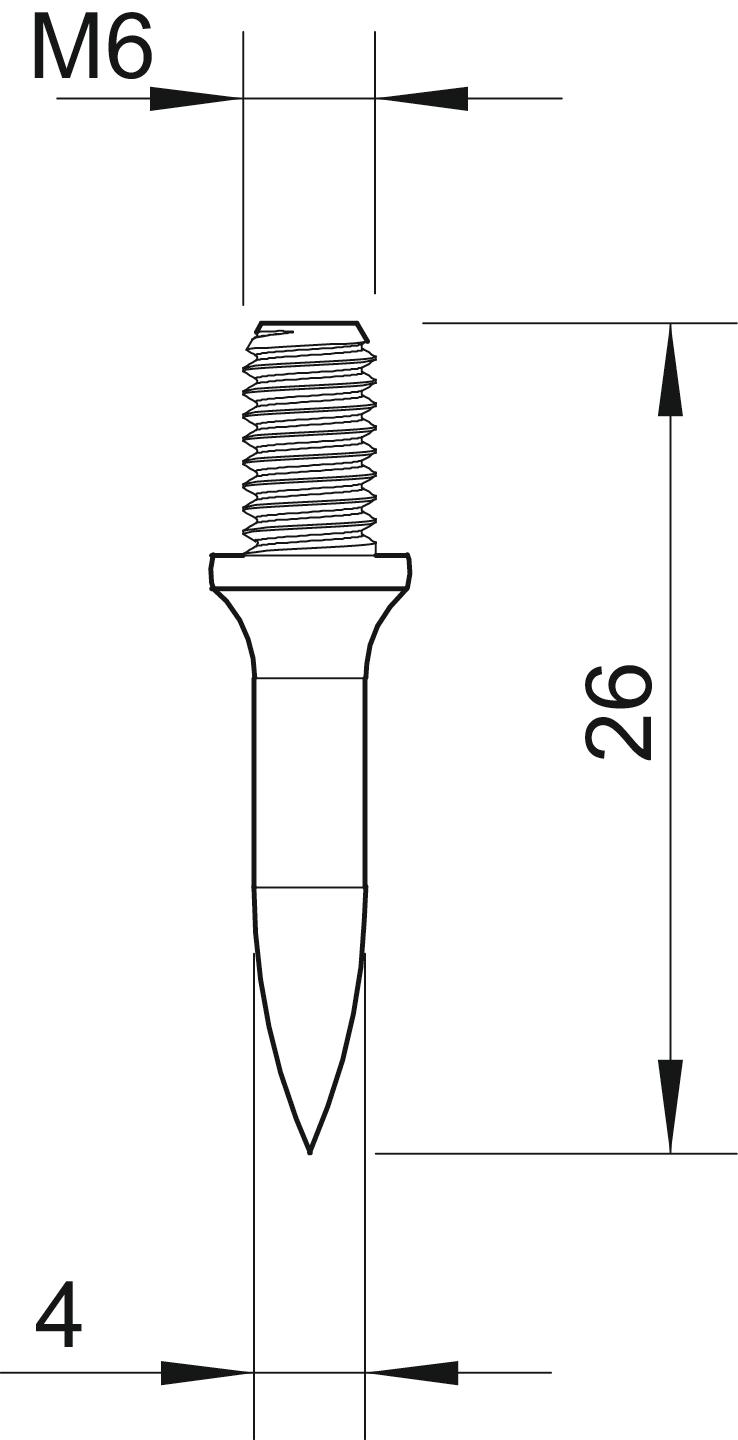

Dimension M6, L18mm
Dimension d min. 4 mm
Dimension G M6 mm
Dimension L 26 mm
Hardened yes
Impact-resistant yes
Length 26 mm
Material Steel
Shank length 18
Surface Electrogalvanized
Thread length 8 mm
Thread metric 6
Thread type Metric
All types

All types

Types Shank length Dimension d min. Dimension G Dimension L Item no. Quantity SSU
903 15 G 15 4 mm M6 mm 23 mm 3100154
100 piece
903 18 G 18 4 mm M6 mm 26 mm 3100189
100 piece
903 25 G 25 4 mm M6 mm 33 mm 3100251
100 piece
903 30 G 30 4 mm M6 mm 38 mm 3100308
100 piece
903 40 G 40 4 mm M6 mm 48 mm 3100405
100 piece
