PA cable bracket with tightening strap

Item no. 5408066 | EAN 4012195872702

Item no. / Types	5408066 / isCon HS 26 PA

Dimension d min.	26 mm

Product description

Product description

Cable bracket with tightening strap for isCon® conductor, for mounting on pipes with Ø ≤ 600 mm.

Technical data

Technical data

Colour	Light grey
Dimension	Ø26mm
Dimension d min.	26 mm
Material	Polyamide

Material lower part	V2A
Material of the base	Stainless steel, rustproof 1.4301
Material of the crossbar	Polyamide
Material upper part	PA

All types

All types

Types	Dimension d min.	Item no.	Quantity	SSU
isCon HS 26 PA	26 mm	5408066	piece	10 piece

Downloads

Data sheet isCon HS 26 PA / 5408066 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity isCon HS 26 PA / 5408066 , 0.06MB , pdf

Download

Mounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdf

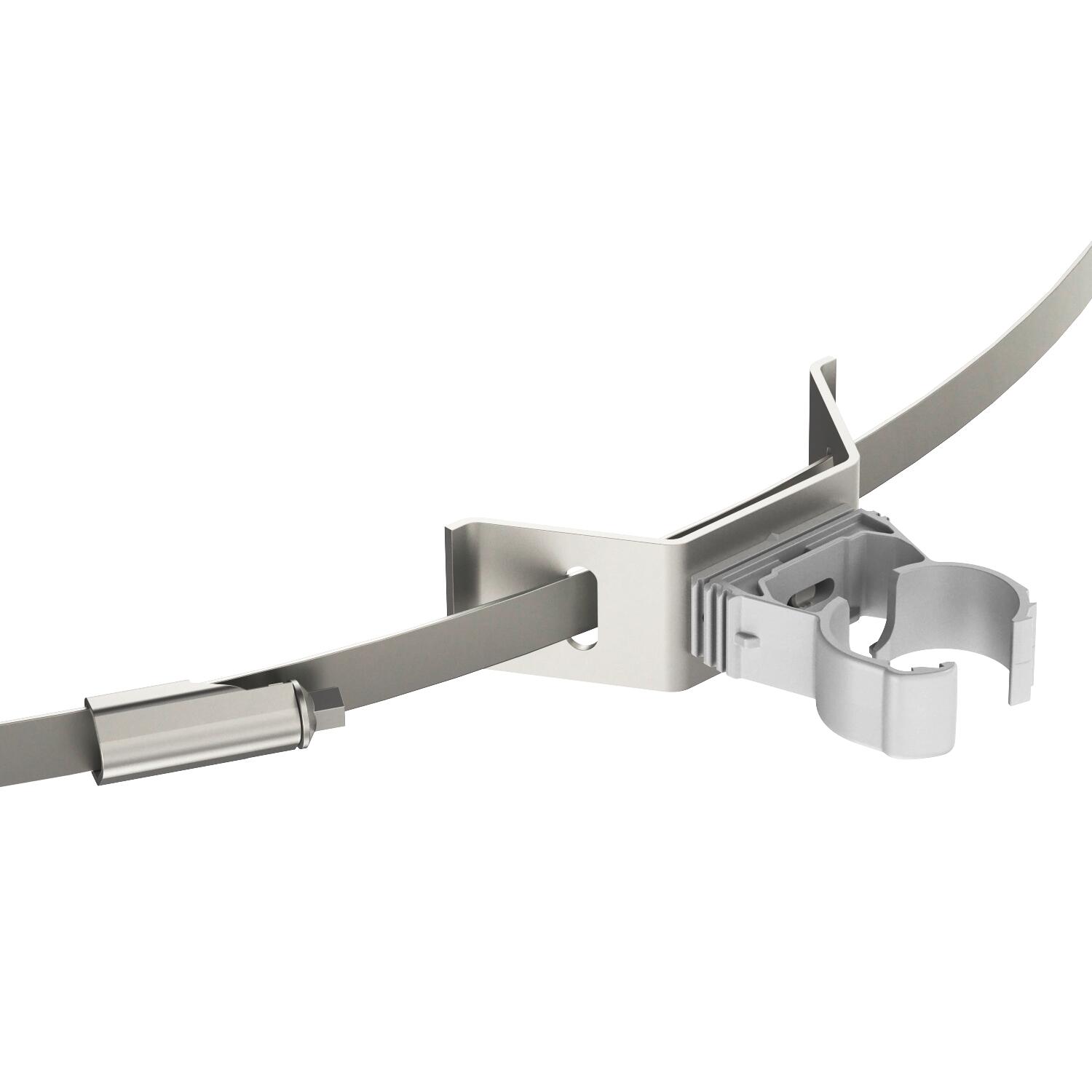

Product graphic isCon HS 26 PA / 5408066, 48.10 kB, jpg

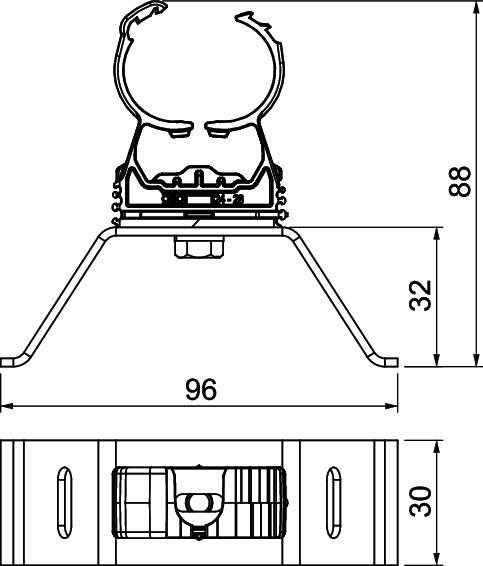

Scale drawing isCon HS 26 PA / 5408066, 78.38 kB, jpg

isCon HS 26 PA / 5408066

5408066_KSTP1.stp, 851.08 kB
