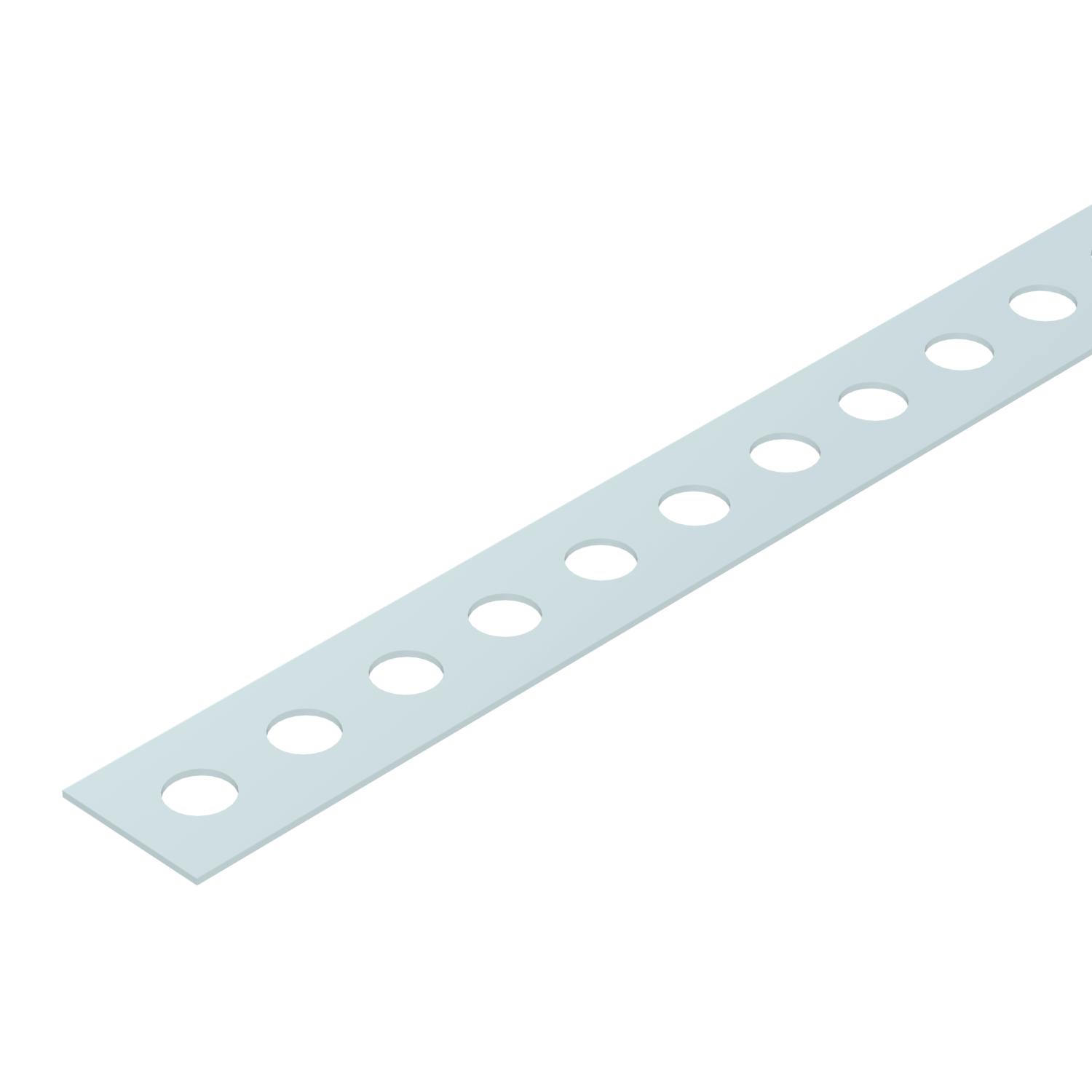

Perforated steel strap

Item no. 1475928 | EAN 4012197371241

Product description
Product description
Perforated mounting strap in wave form, for the mounting of pipes on walls and ceiling, for example. In uncoiling box.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Bolt-firing tool
  • gas-/battery-actuated setting tool
Technical data

Technical data

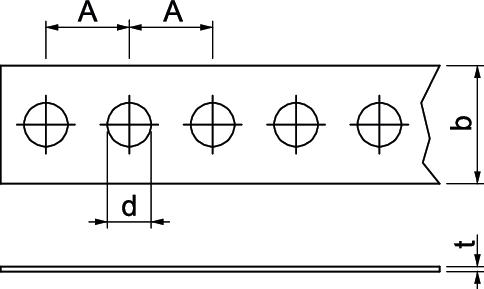

Dimension 17x0,7
Dimension 17x0,7mm
Dimension A 12 mm
Dimension b 17 mm
Dimension d 6,3 mm
Dimension t 0,7 mm
Hole diameter 6,3 mm
Material Steel
per rolls 25
Perforation Round/rectangular
Surface Strip galvanized
Version for Perforated
All types

All types

Types Dimension A Dimension Hole diameter Item no. Quantity SSU
5055 III26 FS 25 mm 26 x 1,2 8.5 mm 1470264
1 piece
MZ029 LII17 FS 12 mm 17 x 0,7 6.3 mm 1475914
1 piece
MZ029 LIII25 FS 15 mm 25 x 0,7 8.5 mm 1475917
1 piece
MZ029 LI12 FS 9 mm 12 x 0,7 5.1 mm 1475912
1 piece
MZ029 LII17 25FS 12 mm 17x0,7 6.3 mm 1475928
1 piece
Downloads

Download

Download

REACH Declaration of conformity MZ029 LII17 25FS / 1475928 , 0.12MB , pdf
Download
RoHS Declaration of conformity MZ029 LII17 25FS / 1475928 , 0.12MB , pdf
Download

MZ029 LII17 25FS / 1475928
