Pipe bend, plastic, halogen-free
Item no. 2047736 | EAN 4012195623182
- Product description
-

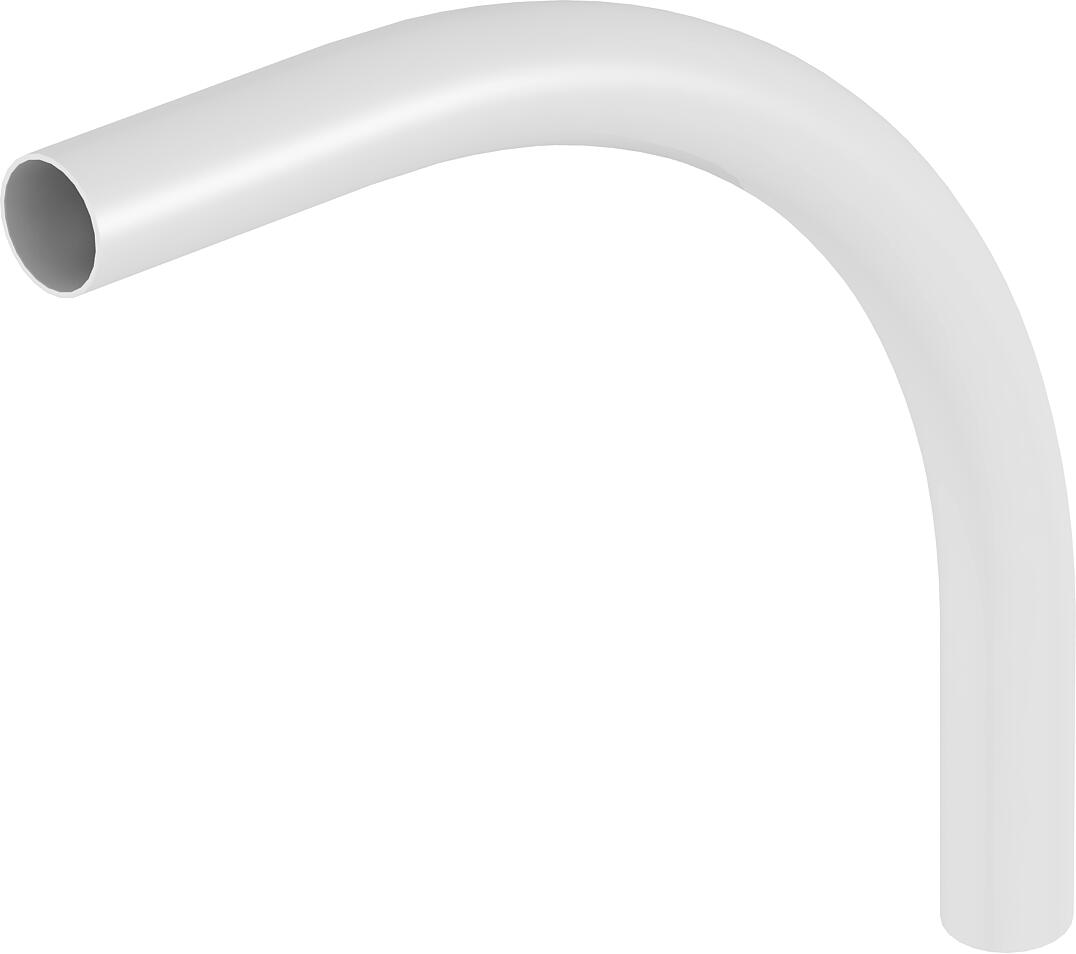

Product descriptionAccessory part: 90° bend to EN 61386 (Code: 4421) for halogen-free electrical installation pipes.
-
- Technical data
-
Technical data

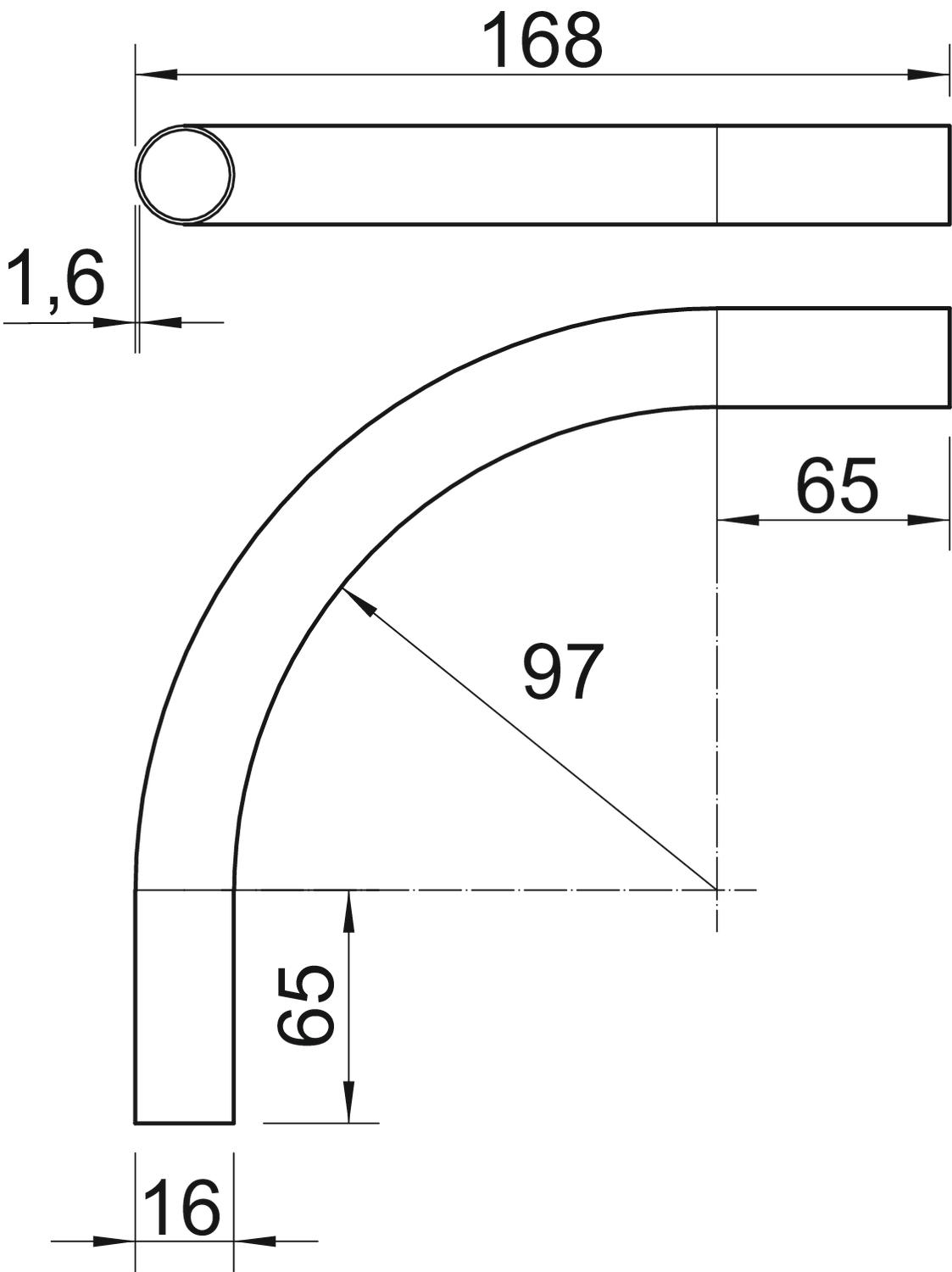

Angle of the bend 90 ° Colour Light grey; RAL 7035 Dimension Ø16mm Dimension A 65 mm Dimension D 16 mm Dimension L 168 mm Dimension m (mm) M16 Dimension R 97 mm Dimension t 1,6 mm Flexible no For nominal pipe diameter 16 mm Halogen-free yes Length 168 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Version for Connector With sleeve no - All types
- Downloads
-
Data sheet KBH16 LGR / 2047736 , 0.20MB , pdf
