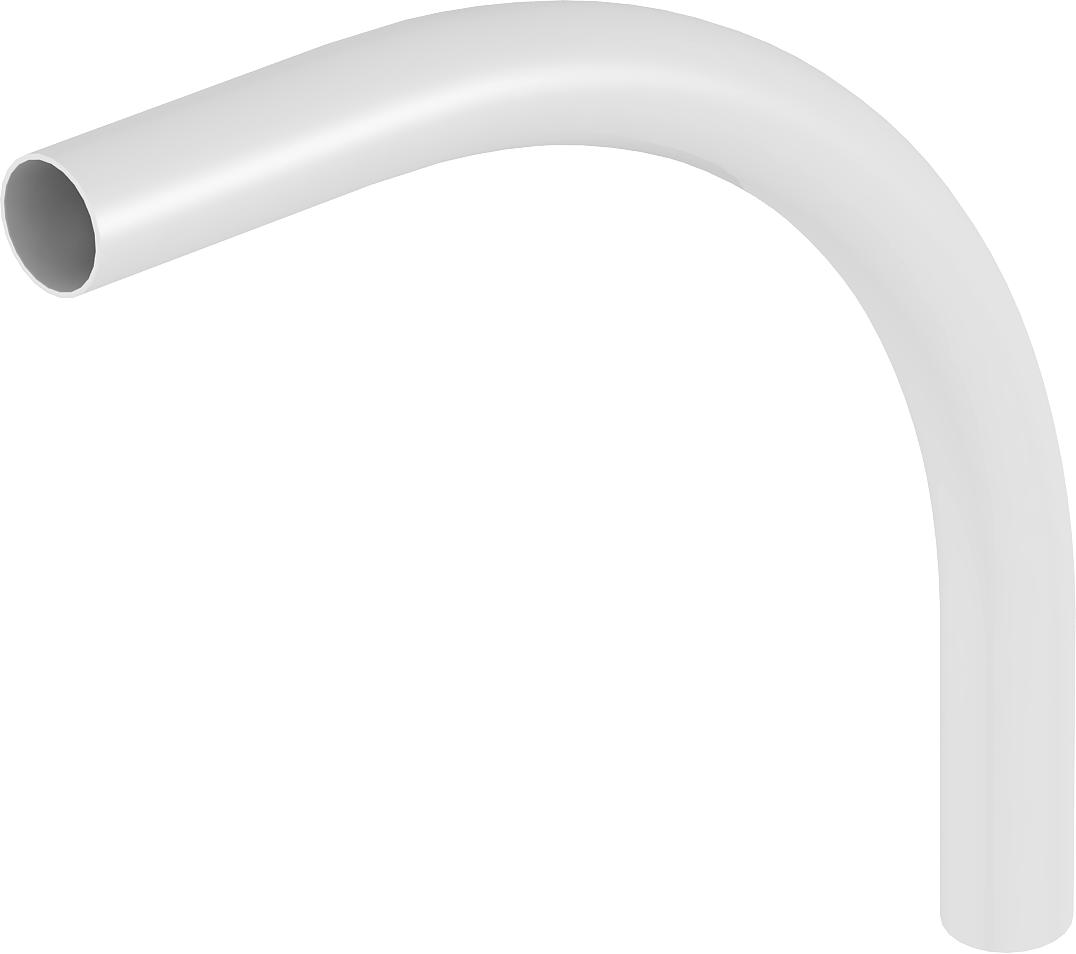

Pipe bend, plastic, halogen-free
Item no. 2047739 | EAN 4012195623205
- Product description
-
Product descriptionAccessory part: 90° bend to EN 61386 (Code: 4421) for halogen-free electrical installation pipes.
-
- Technical data
-
Technical data

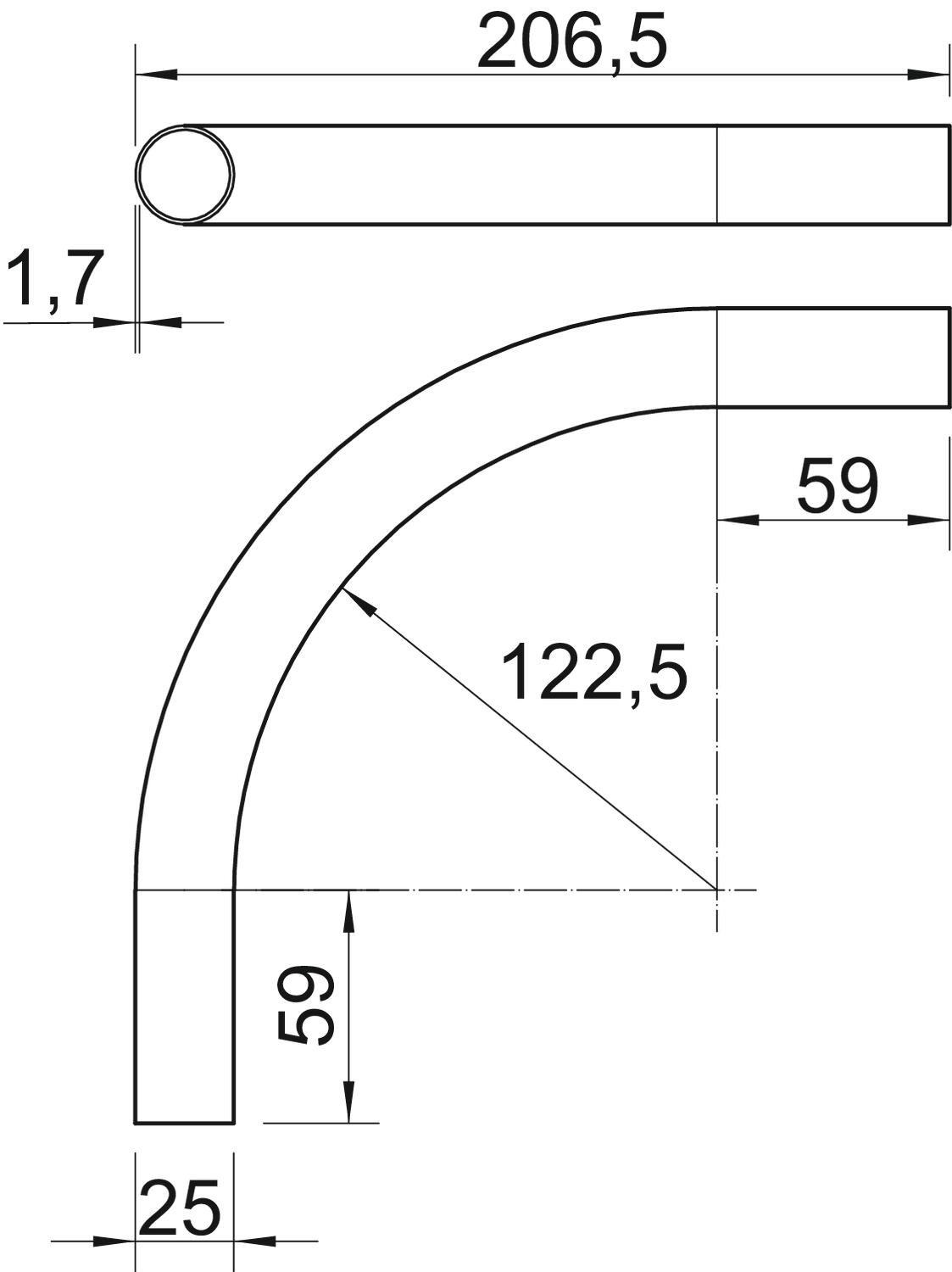

Angle of the bend 90 ° Colour Light grey; RAL 7035 Dimension Ø25mm Dimension A 59 mm Dimension D 25 mm Dimension L 206,5 mm Dimension m (mm) M25 Dimension R 122,5 mm Dimension t 1,7 mm Flexible no For nominal pipe diameter 25 mm Halogen-free yes Length 206,5 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Version for Connector With sleeve no - All types
- Downloads
-
Data sheet KBH25 LGR / 2047739 , 0.18MB , pdf
