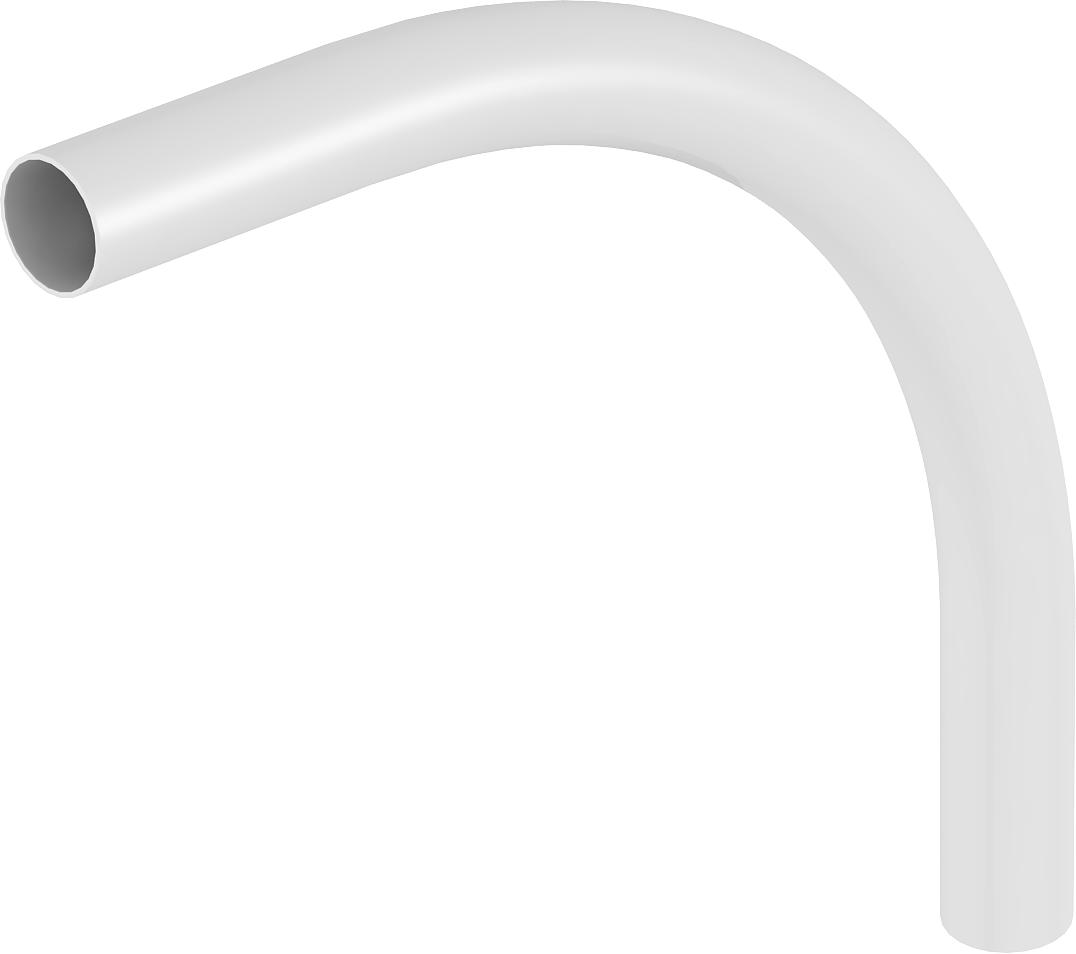

Pipe bend, plastic, halogen-free
Item no. 2047740 | EAN 4012195623212
- Product description
-
Product descriptionAccessory part: 90° bend to EN 61386 (Code: 4421) for halogen-free electrical installation pipes.
-
- Technical data
-
Technical data

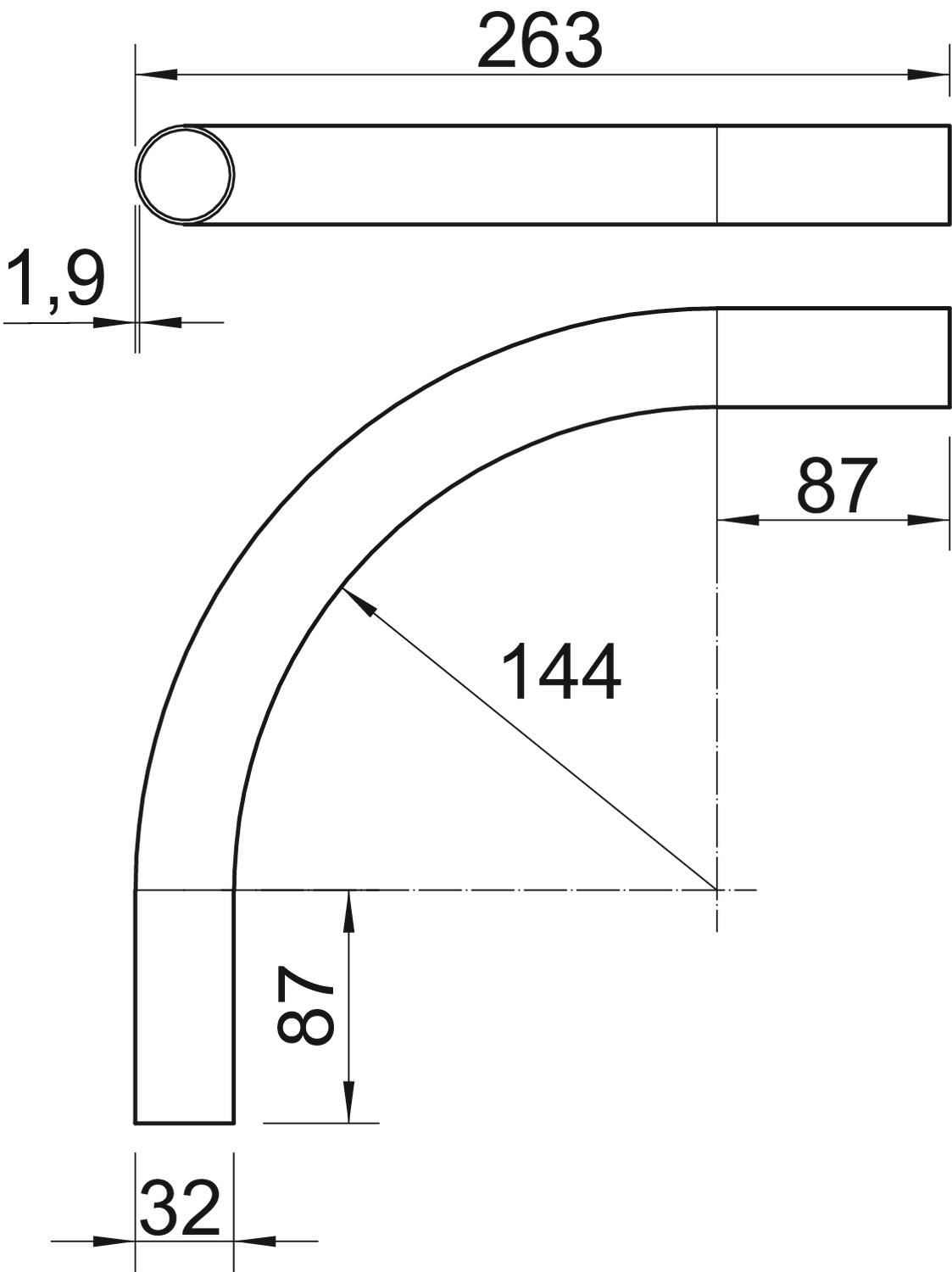

Angle of the bend 90 ° Colour Light grey; RAL 7035 Dimension Ø32mm Dimension A 87 mm Dimension D 32 mm Dimension L 263 mm Dimension m (mm) M32 Dimension R 144 mm Dimension t 1,9 mm Flexible no For nominal pipe diameter 32 mm Halogen-free yes Length 263 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Version for Connector With sleeve no - All types
- Downloads
-
Data sheet KBH32 LGR / 2047740 , 0.18MB , pdf
