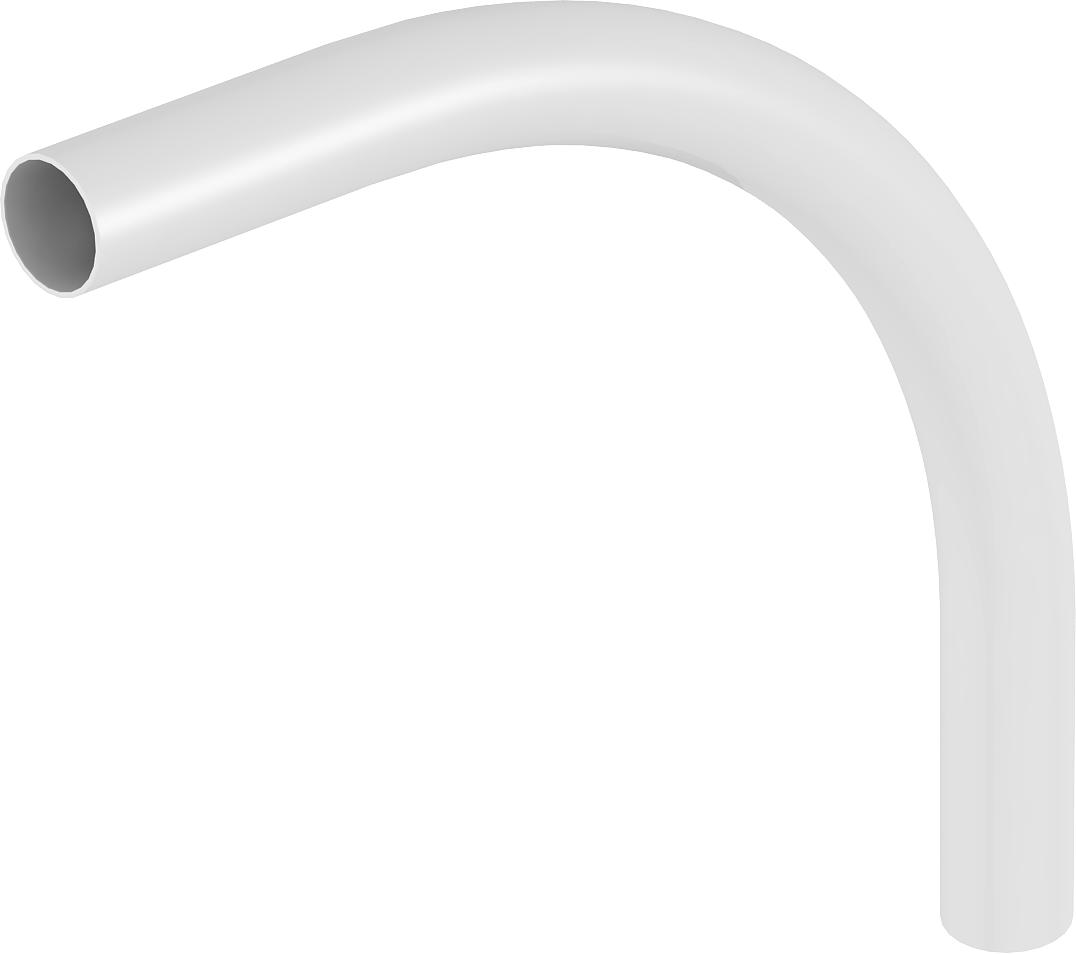

Pipe bend, plastic, halogen-free
Item no. 2047741 | EAN 4012195623229
- Product description
-
Product descriptionAccessory part: 90° bend to EN 61386 (Code: 4421) for halogen-free electrical installation pipes.
-
- Technical data
-
Technical data

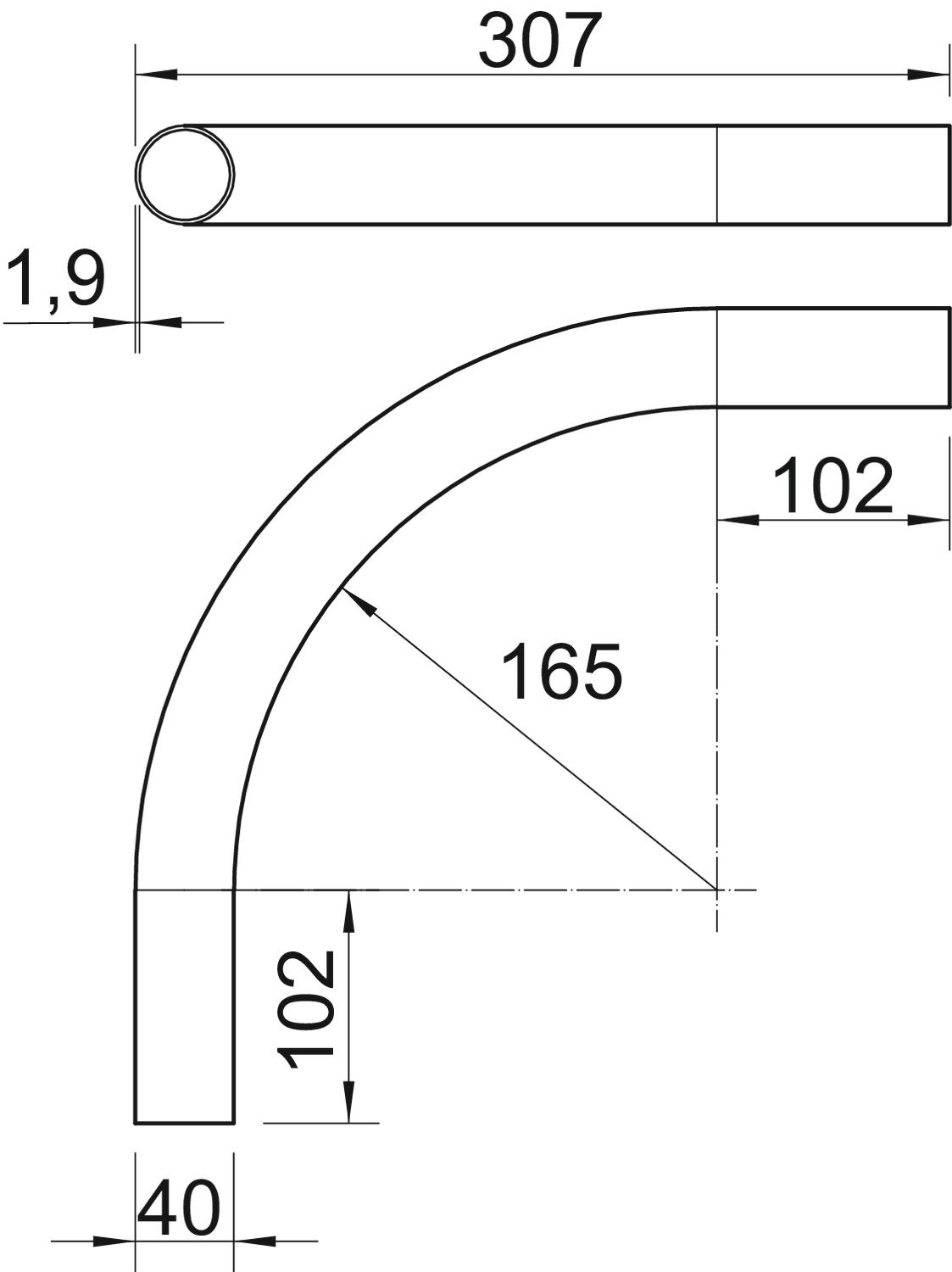

Angle of the bend 90 ° Colour Light grey; RAL 7035 Dimension Ø40mm Dimension A 102 mm Dimension D 40 mm Dimension L 307 mm Dimension m (mm) M40 Dimension R 165 mm Dimension t 1,9 mm Flexible no For nominal pipe diameter 40 mm Halogen-free yes Length 307 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Version for Connector With sleeve no - All types
- Downloads
-
Data sheet KBH40 LGR / 2047741 , 0.18MB , pdf
