Pipe bend, plastic, halogen-free
Item no. 2047742 | EAN 4012195623236
- Product description
-

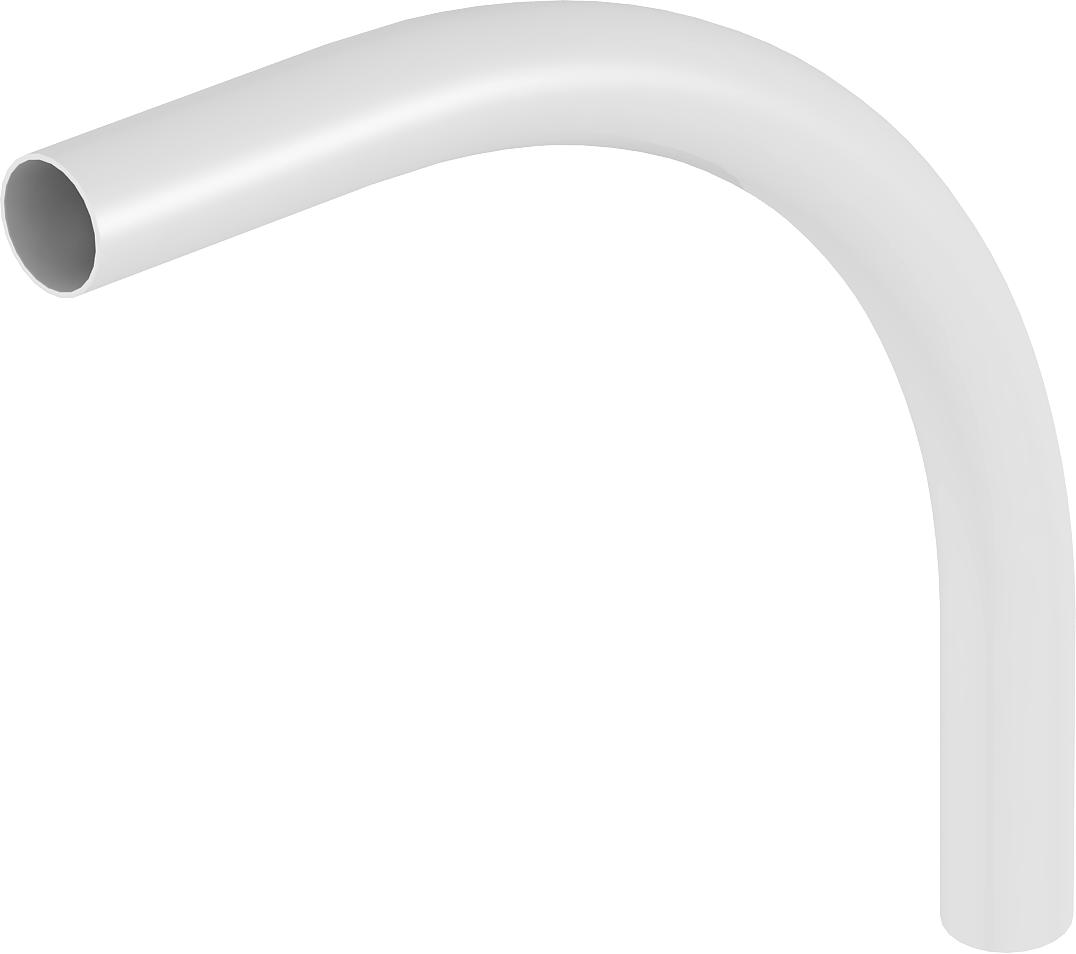

Product descriptionAccessory part: 90° bend to EN 61386 (Code: 4421) for halogen-free electrical installation pipes.
-
- Technical data
-
Technical data

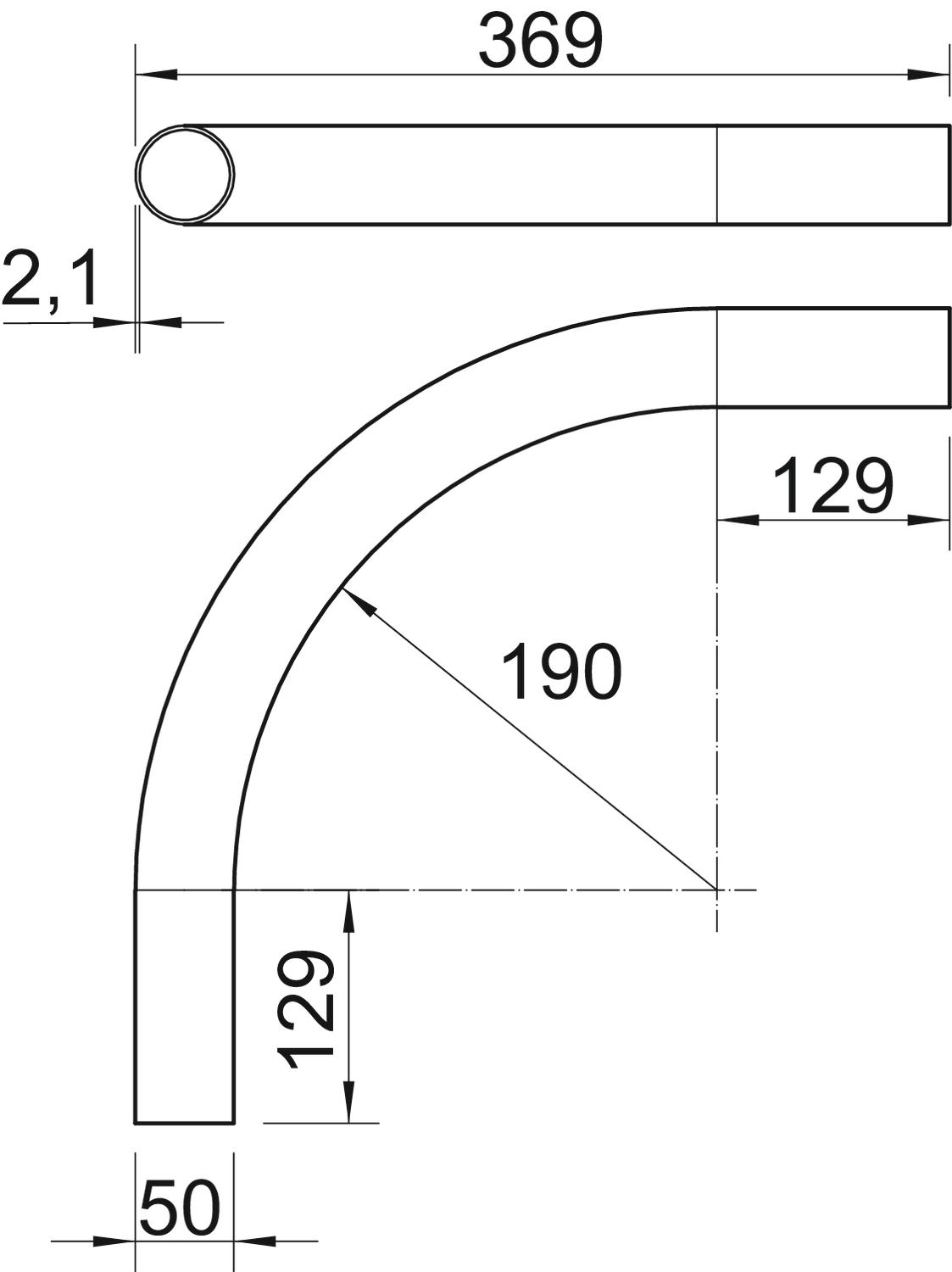

Angle of the bend 90 ° Colour Light grey; RAL 7035 Dimension Ø50mm Dimension A 129 mm Dimension D 50 mm Dimension L 369 mm Dimension m (mm) M50 Dimension R 190 mm Dimension t 2,1 mm Flexible no For nominal pipe diameter 50 mm Halogen-free yes Length 369 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Version for Connector With sleeve no - All types
- Downloads
-
Data sheet KBH50 LGR / 2047742 , 0.18MB , pdf
