Pipe earth rod LE, A4 1500 | 25

morepic-1

morepic-2

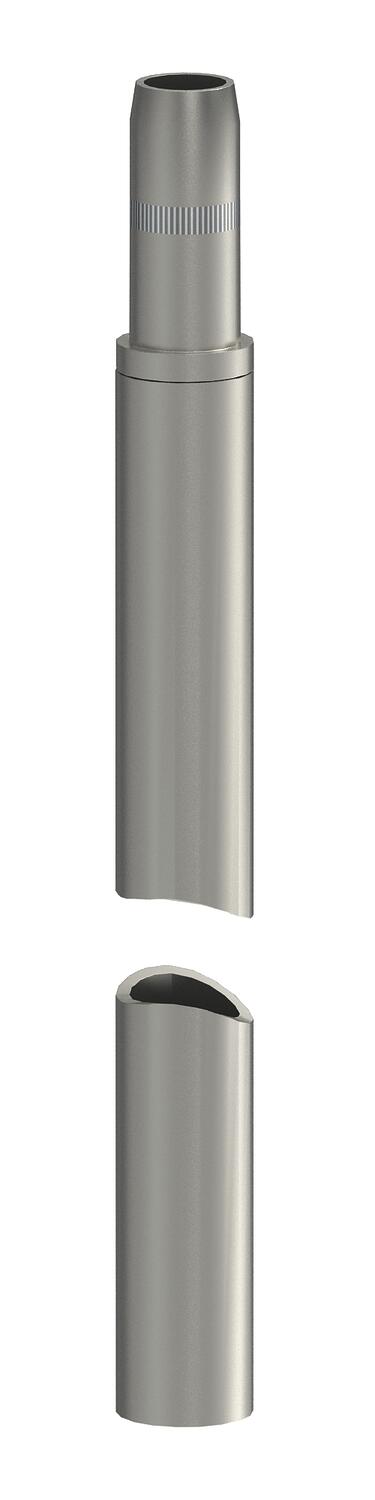

Pipe earth rod LE, A4

Item no. 5000335 | EAN 4012195708834

Item no. / Types	5000335 / LE ERDER V4A

Length	1500 mm

External diameter	25 mm

Product description

Product description

• Expandable earth rod system for erecting earthing connections (type A)
• The pipe earth rod system LE is connected using the pre-mounted sleeve
• Complies with requirements according to DIN VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• For use with antenna earthing systems, lightning earthing systems, etc.

Technical data

Technical data

Dimension	1,5m
External diameter	25 mm

Material	Stainless steel
Profile type	Round D=25 mm

Dimensions

Dimension D	25 mm
Dimension L	1500 mm

Length	1500 mm

All types

All types

Types	Length	External diameter	Item no.	Quantity	SSU
LE ERDER V4A	1500 mm	25 mm	5000335	piece	5 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

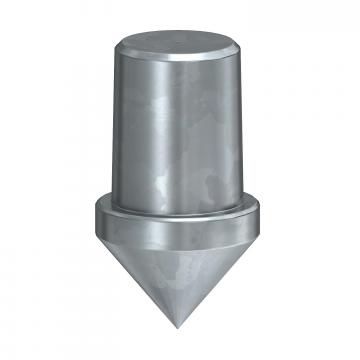

Driving spike for pipe earth rod LE	LE SPITZE	3041409	piece	5 piece

Downloads

Data sheet LE ERDER V4A / 5000335 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

Mounting instructions Mounting instructions, earth rod , 0.15MB , pdf

Download

Product graphic LE ERDER V4A / 5000335, 20.36 kB, jpg

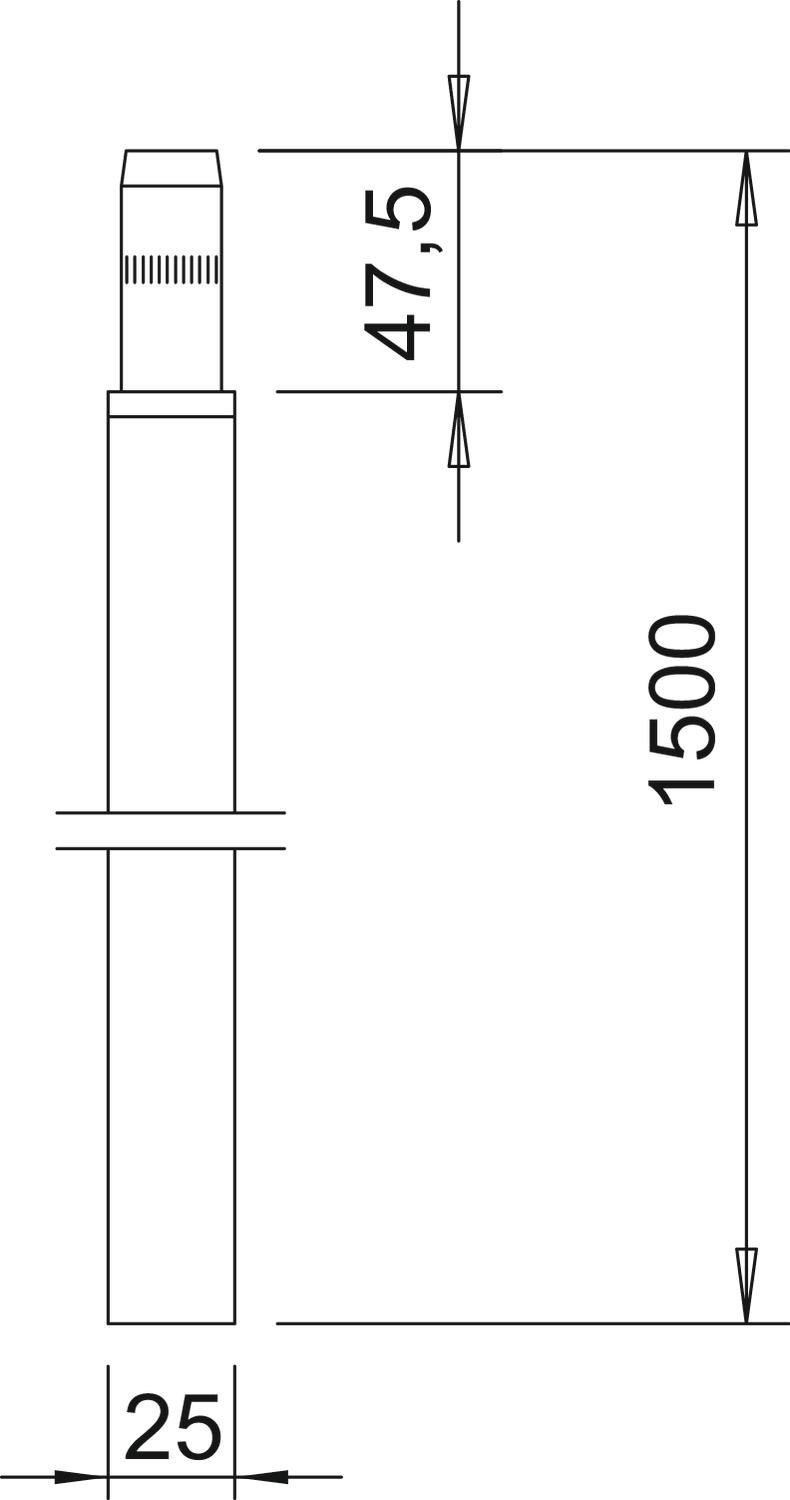

Scale drawing LE ERDER V4A / 5000335, 33.31 kB, jpg

LE ERDER V4A / 5000335

Tiefen_und_Plattenerder_Rohrerder_LightEarth.rfa, 332.00 kB
