Pipe end cap, splittable, PG, light grey PG21

Pipe end cap, splittable, PG, light grey

Item no. 2044521 | EAN 4012196594139

Item no. / Types

Size

Product description

Product description

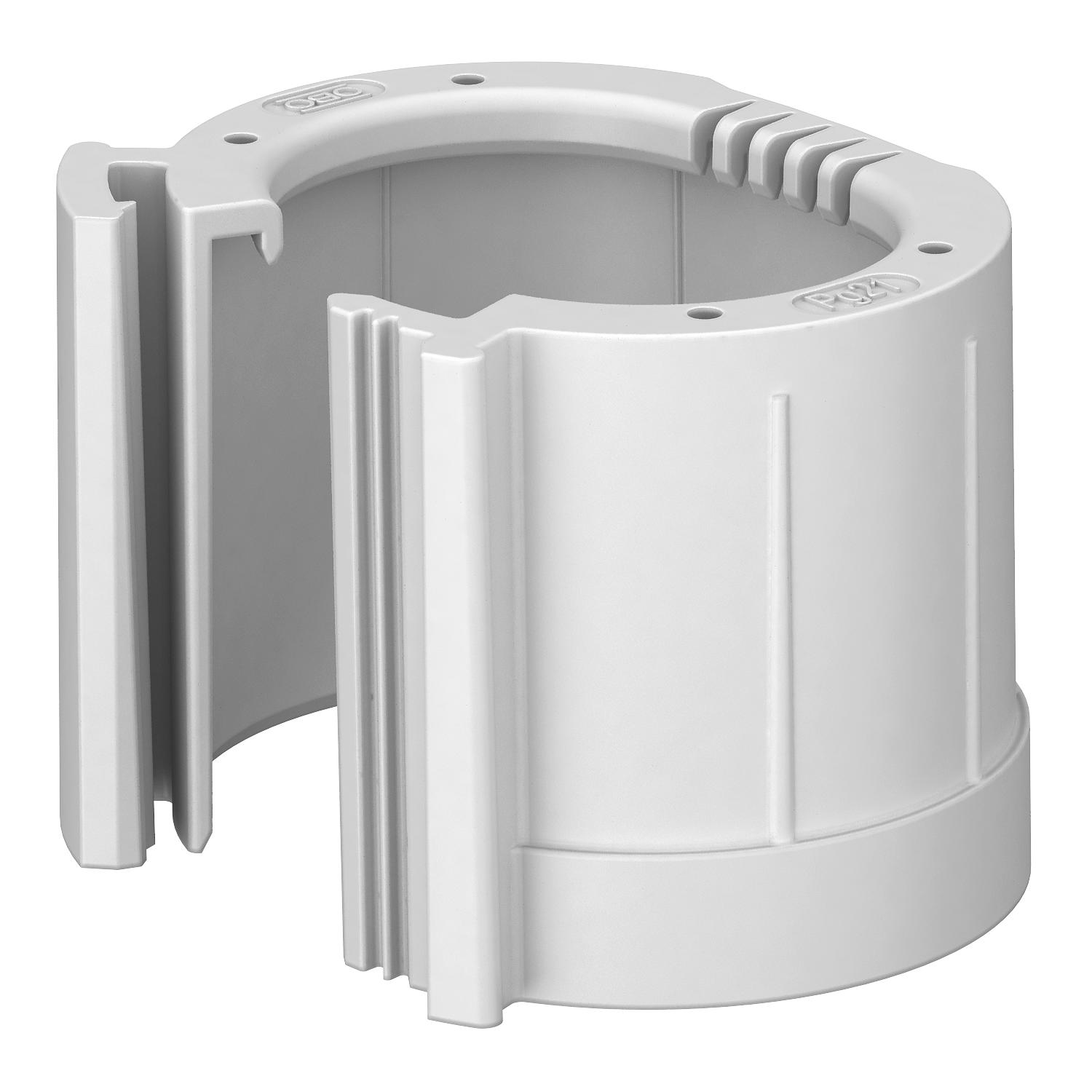

Separable pipe end cap to slot onto PG electrical installation pipes.

The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.

Technical data

Technical data

Brushed surface	no
Colour	Light grey; RAL 7035

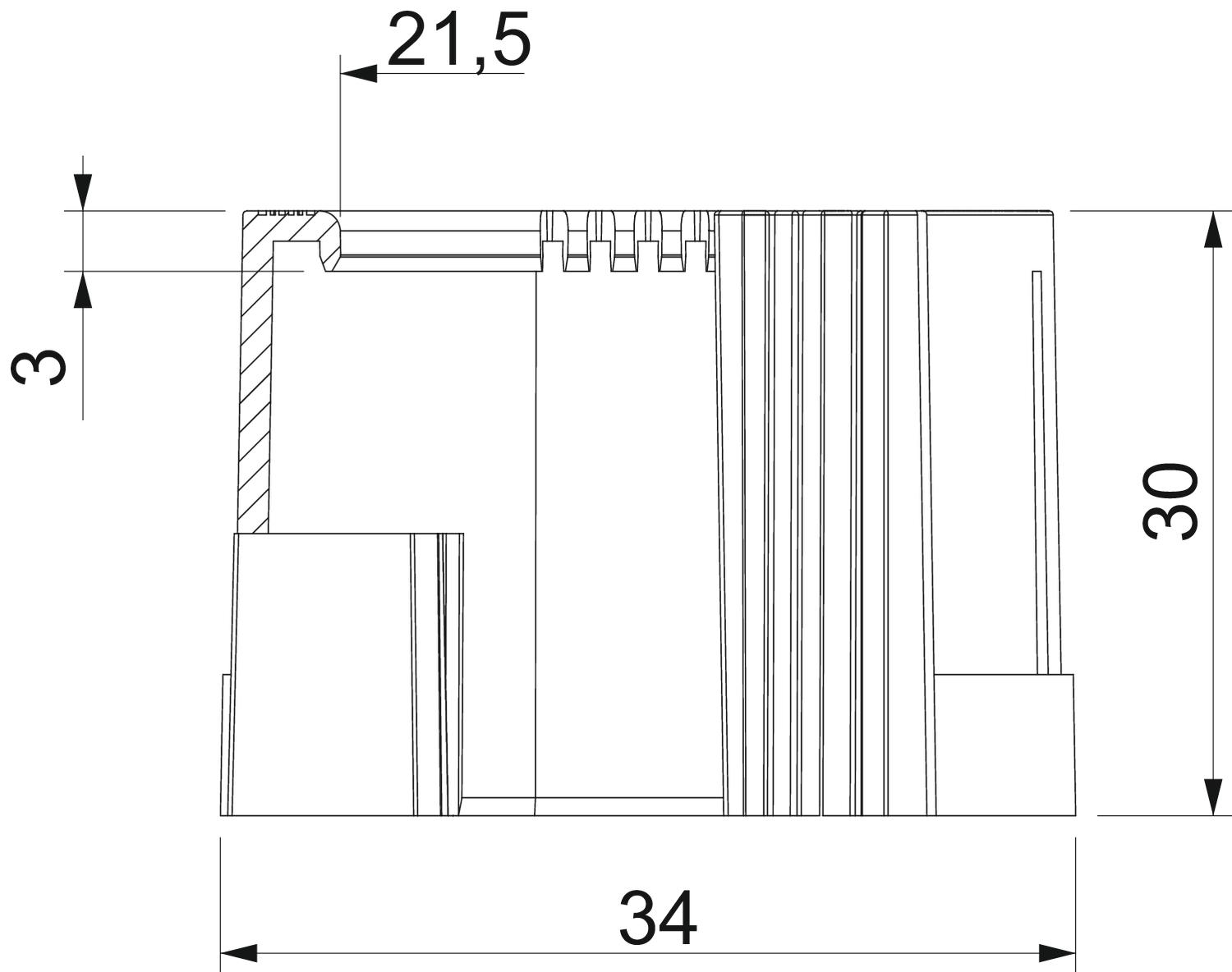

Dimension	PG21
Dimension D1	34 mm
Dimension D2	21,5 mm
Dimension L1	30 mm

Dimension L2	3 mm
for pipe diameter	28,3 mm
Material	Polyethylene
Polished surface	no
Size	PG21
Version for	Connector

All types

All types

Types	Size	Item no.	Quantity	SSU
129 TB PG9	PG9	2044509	piece	50 piece
129 TB PG11	PG11	2044511	piece	50 piece
129 TB PG13,5	PG13,5	2044513	piece	50 piece
129 TB PG16	PG16	2044516	piece	50 piece
129 TB PG21	PG21	2044521	piece	50 piece
129 TB PG29	PG29	2044529	piece	50 piece
129 TB PG36	PG36	2044536	piece	30 piece
129 TB PG42	PG42	2044542	piece	30 piece
129 TB PG48	PG48	2044548	piece	20 piece
